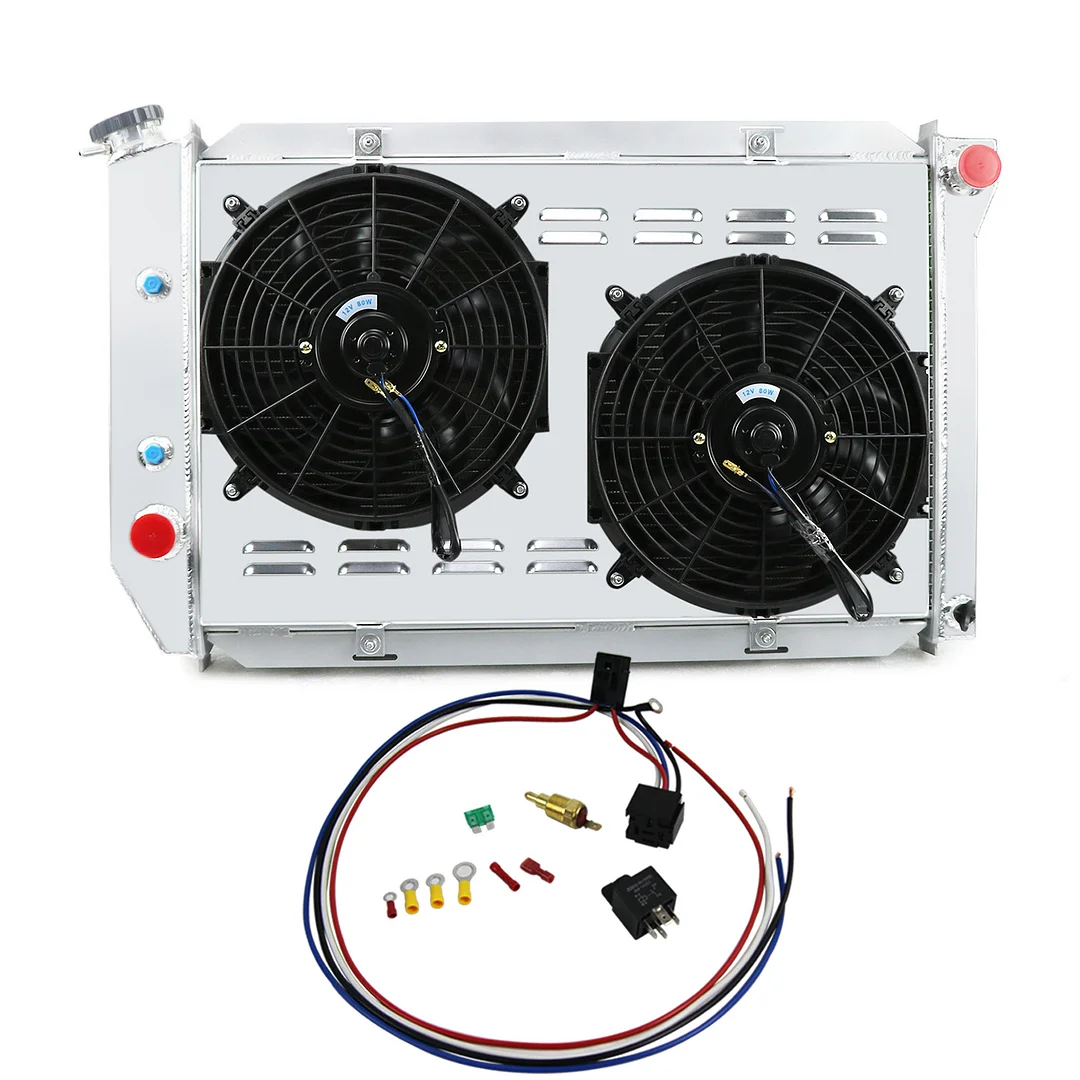

Alloyworks 4 Rows Radiator Shroud Fans For 1969-1973 Ford Mustang Fairlane Lincoln Mercury

Alloyworks 4 Rows Radiator Shroud Fans For 1969-1973 Ford Mustang Fairlane Lincoln Mercury

MC381DZFSXJ90W-BN
$359.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Engine applications: -5.0L 302ci V8/ 6.4L 390ci V8/7.0 428/ 429ci V8/ 7.5 460ci V8 -
*Not all engines fit all makes/models See compatibilities on Ad listing


Radiator Configuration:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Material: AA5052 Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Core size: 17-7/8" H x 26" W x 2.45" Thick
Overall Dimensions: 20" H x 31-5/8" W
Upper Inlet : 1-1/2" located on the Passenger side
Lower Outlet : 1-1/2" located on the Driver side
Transmission Oil Cooler: ¢26×150×M10*1.0(T)
OEM Style Brass Petcock Drain
Includes CNC machined filler neck and cap

FAN Specification:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation


This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.Brand new, never used & good quality,All Aluminum For Better Performance Better Heat Exchange,Increase 30%-40% cooling than OEM radiator,handles high revving motor End Tanks are made from high quality sheet metal, not plastic like OEM Professional installation in highly recommended
Shroud+Fans
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

Aluminum plate is pressed, high quality and durable.



THE PROBLEM WE WILL HELP YOU SOLVED OUT
