STRENGTHEN COOLING 4 Row Radiator&Shroud+Fan+Relay Kit For DODGE Ram 2500 3500 5.9 Diesel 1994-2002-120W
SR4003DZFSXJ120W-BN







STRENGTHEN COOLING 4 Row Radiator&Shroud+Fan+Relay Kit For DODGE Ram 2500 3500 5.9 Diesel 1994-2002-120W
SR4003DZFSXJ120W-BN
Fits:
1994-2002 Dodge Ram 2500 & Ram 3500 5.9L 359Cu. In. l6 & 5.9L 360Cu. In. V8
Manufacturer Part Number:1553,DPI1553,CU1553,SC1553,SBR1553,RAD1553
Please Notice
To confirm that this part fits your vehicle, check your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table. Also review the notes section in the compatibility chart for additional specifications about this part.

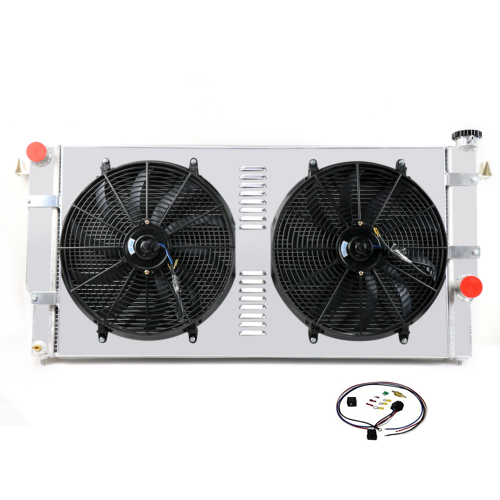

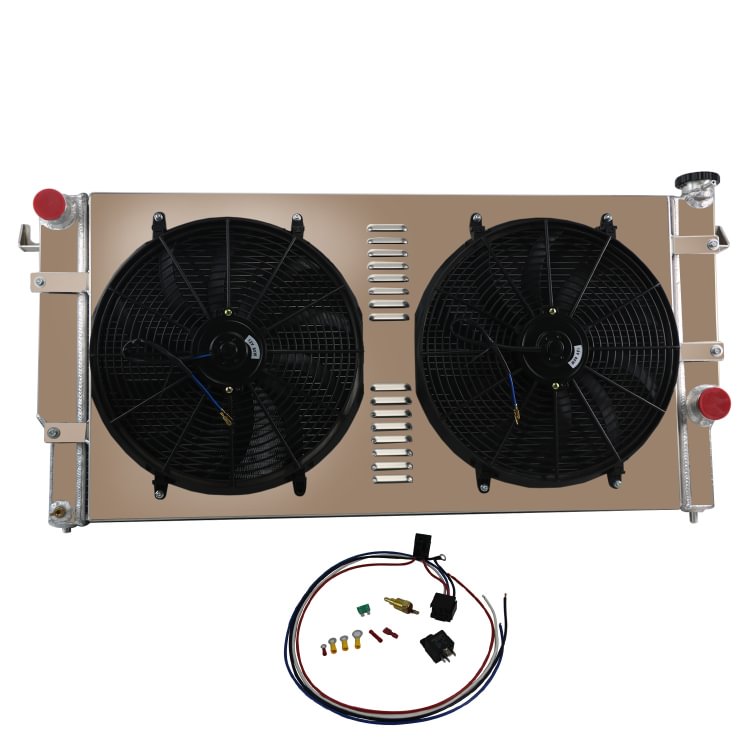

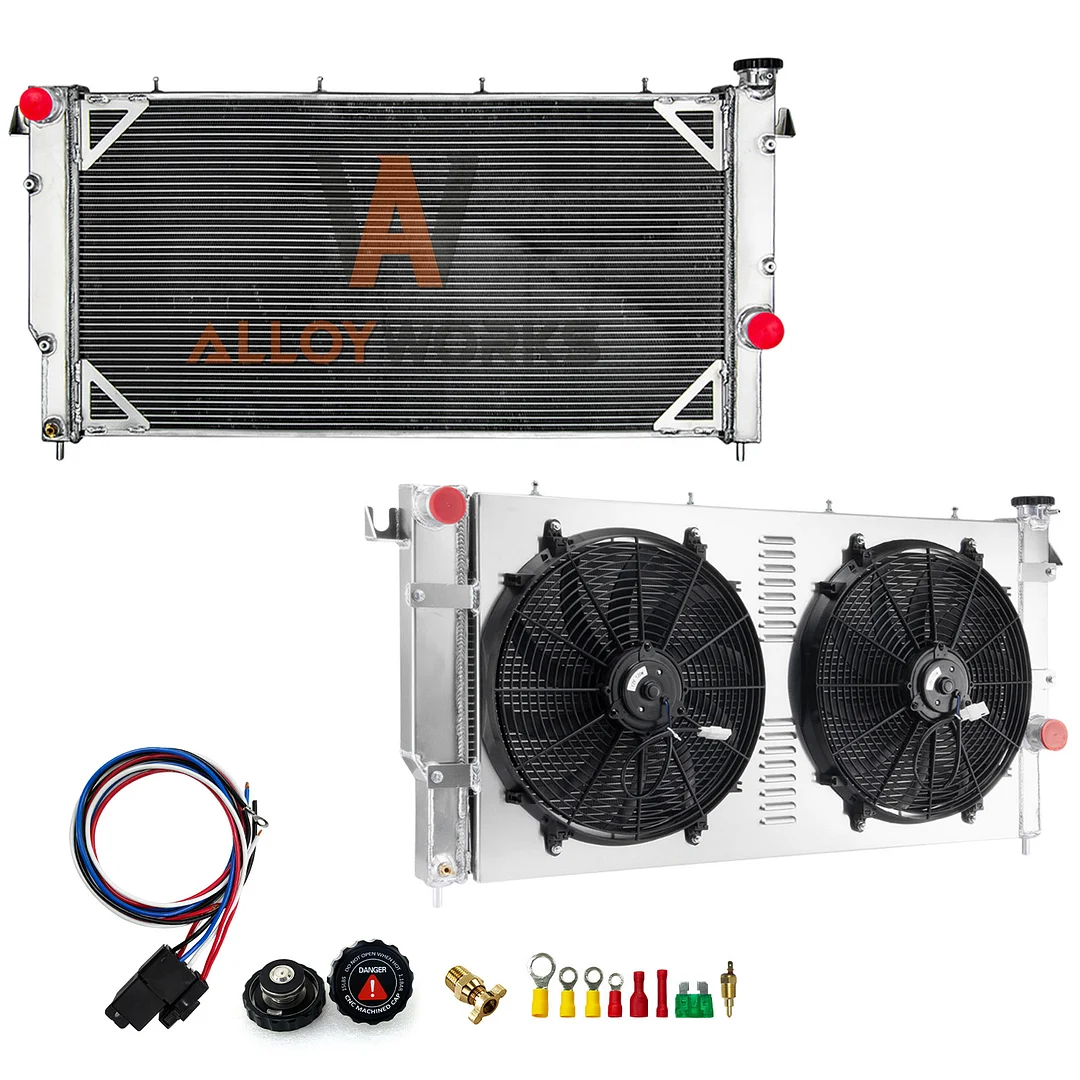

Package Include:
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 16" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Radiator Size:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Size: 36 3/7"x 19 2/9"
Overall Size: 45 2/7"x 22"
Inlet Diameter : 1 3/4" Driver Side
Outlet Diameter : 2" Passenger Side
Transmission Oil Cooler:No
Please Check the Size Before You Buy!
Why choose us? What are the advantages of our product?
1. Made from Aircraft AA5052 grade aluminum for prolonged lifespan and with raw aluminum finish.
2. Brazed core technology to guarantee optimum performance and dependability.
3. All AA5052 Aluminum 2mm thick tanks and fitting, ensure it's hard and durable.
4. Billet Aluminum CNC machined fill neck rugged and durable.
5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.
6. OEM style brass petcock drain much better than other plastic one
7. Carefully crafted to exceptional OE standards for precise fit.
AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
3. Additional with thermostat,professional matching advice, consider for every detail and needed.
Fan Size:
16" Fan
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 120 Wattage
Thickness (in): 2.500"
Number of Blades: 10 S-Type blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 10 amps
Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
About "AA5052" upgrading aluminum materials:
Our Radiator is made of AA5052 aircraft aluminum. It’s different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series. More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.
AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold workability and strength. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Aluminum plate is pressed, high quality and durable.
