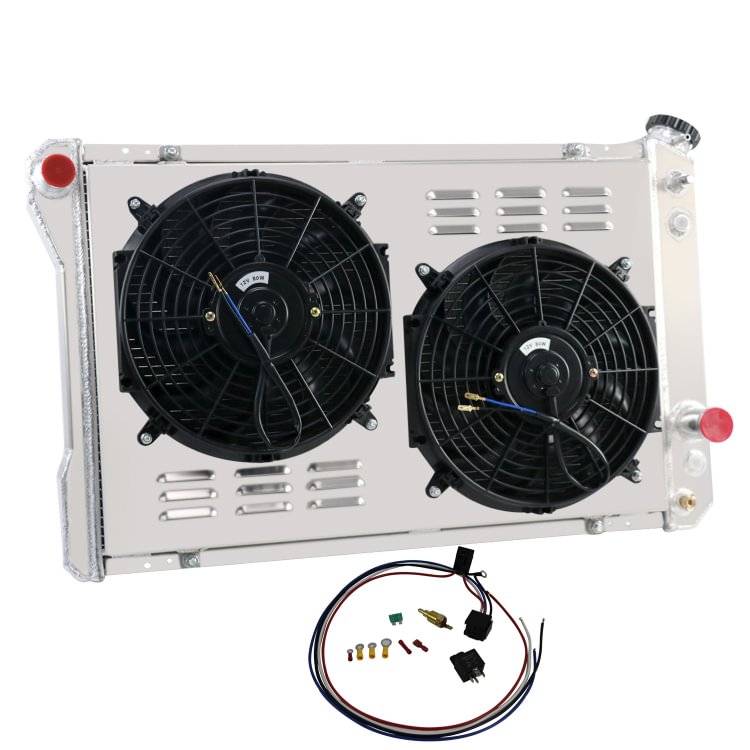

4 Row Radiator&Shroud+Fan+Relay Kit Fits Chevy Camaro/Pontiac Firebird 1982-1994
4 Row Radiator&Shroud+Fan+Relay Kit Fits Chevy Camaro/Pontiac Firebird 1982-1994
For Chevrolet Camaro 1982 - 1984 L4 2.5L Engine
For Chevrolet Camaro 1982 - 1992 V8 5.0L Engine
For Chevrolet Camaro 1987 - 1992 V8 5.7L Engine
For Chevrolet Camaro 1990 - 1992 V6 3.1L Engine
For Pontiac Firebird 1982 - 1992 V8 5.0L Engine
For Pontiac Firebird 1987 - 1992 V8 5.7L Engine
For Pontiac Firebird 1989 V6 3.8L Engine
For Pontiac Firebird 1990 - 1992 V6 3.1L Engine
This Radiator Size:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Radiator Flow: Cross Flow
Core Dimensions: 26.25" x 16.75"
Overall Dimensions: 30.75" x 18.75" x 2.50"
Inlet / Outlet Diameter: 1.25" /1.5"
Upper / Lower Hose Fitting: Driver / Pass
Trans Cooler Details: M12*1.25
Mounting Type: Saddle
Mounting Specs: Vert - 22 3/8 Horizontal - 17 1/2
Manufacturer Part Number:CC951,CU951,DPI951,MC951
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality AA5052 Aircraft Grade Aluminum Construction
Aircraft Grade Aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring Aircraft Grade Aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This High Quality Aircraft Grade Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Thermostat Relay Kit
Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.
Aluminum plate is pressed, high quality and durable.
