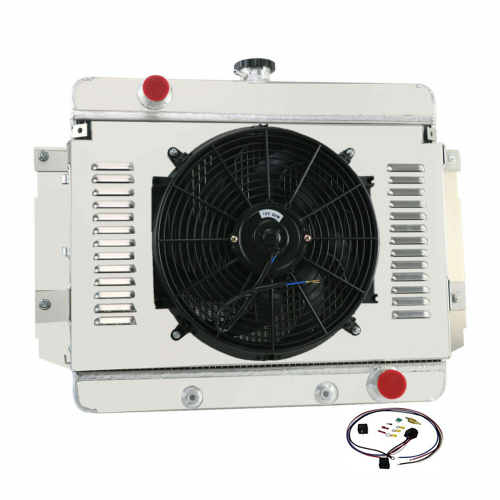

4 Row Radiator+Shroud Fan+Thermostat For Chevy Impala Bel Air Caprice V8 1969-70

MC345DZFSXJ

$309.00 20 % $386.25
20 sold
Qty
Product description
Product description

Application:
For Chevrolet-Bel Air/Caprice/Biscayne/Brookwood/Kingswood 69-70
For Chevrolet,Impala,Bel Air,Brookwood 1969-1970
For Chevrolet Caprice Kingswood,Biscayne,1969-1970

Click here to view all compatible vehicles


Interchange Part Number: 345,C345,CC345,CU345,MC345
Manufacturer Part Number: 8010345,433345,
Internet Product Code (IPC): 08F02C8D655


Package Included:
1 X 4-Row Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud+ Fans (Includes mounting kits)
1 X Thermostat Relay Kit


The Size of Radiator:
Material:Full Aluminum
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Dimensions: 15 1/2" x 23 1/2"
Overall Dimensions: 22" x 28 1/4" Including Brackets
Upper inlet: 1 1/2" located on driver side.
Lower outlet: 1 3/4" located on passenger side.
Auto trans cooler: Included
Radiator Cap: CNC Precision Machined Radiator Cap


FAN SIZE:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 9.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe adapter included.
Probe typically threads into radiator, water outlet or manifold.


Description:
Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area
that enables the heat to dissipate more efficiently. Aluminum Radiator is at least 30%-45% more efficient than stock one. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Covers vast selection of import and domestic applications
Stringently tested to guarantee optimum performance and dependability
Straightforward installation guaranteed
Carefully crafted to exceptional OE standards for precise fit
Made from high-grade materials for prolonged lifespan
