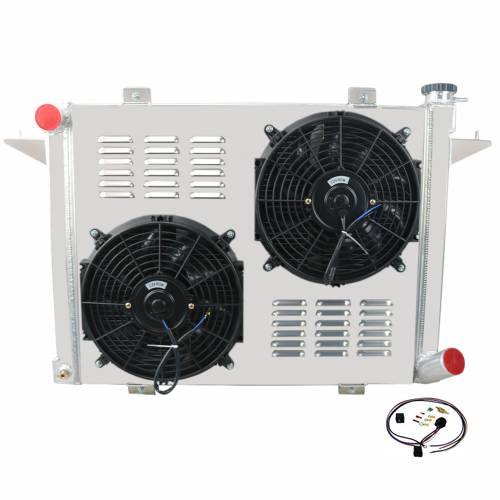

Alloyworks 4 Rows Radiator with Fan Shroud Kits For 1989-1993 Dodge D/W 250 350 5.9L V8 DIESEL 23.3" Height x 36.5" Width 12" fan 90W

Alloyworks 4 Rows Radiator with Fan Shroud Kits For 1989-1993 Dodge D/W 250 350 5.9L V8 DIESEL 23.3" Height x 36.5" Width 12" fan 90W

536-51126DZFSXJ90W-BN
$459.00
Quantity
Please check if this fits your vehicle before purchasing
We're currently out of stock. Get notifed by email when this product available
please input correct email
Notify Me
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Please check the appearance and size of the radiator before purchasing the Order.

Fits:
For 1989-1993 Dodge D250/D350/W250/W350 5.9L 359Cu. In. l6
For 1990-1991 Dodge Ramcharger 5.9L 360Cu. In. V8 and 5.2L 5211CC 318Cu. In. V8

This Listing Is Including:
1 X 4-Row AA5052 Aluminum Radiator
1 x 1.3Bar CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kits

Radiator Configuration:
High-Performance Racing Spec.
4-Row of tubes Core Racing Design
Material: High-Quality Full AA5052 Aluminum Construction
Core Size: 20.9" H x 25.98" W x 2.44''Thick
Overall Size: 23.3" H x 36.5" W x 6.9''Thick
Upper Inlet 1.77" located on the Driver's side
Lower Outlet 1.97" located on the Passenger side
Transmission Oil Cooler: Not Included
Radiator Cap: CNC machined filler neck and cap
Crafts: 100% Tig welded, no epoxy
Radiator Drain Plug: OEM Style Brass Petcock Drain.

FAN Specification:
Maximum Fan CFM: 1730 cfm
Motor: 90W
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation


Description:
The core of the radiator is welded in a vacuum brazing furnace, with no epoxy. The Radiator is 100% welded by TIG. Stronger and higher Capacity for Coolant than OEM units, Made of High-Quality AA5052 Aircraft Grade Aluminum Construction
Full Aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring Aircraft Grade Aluminum features a tube and fin design that, dramatically increases surface area and enables the heat to dissipate more efficiently. This High-Quality Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at a preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
The probe typically threads into the radiator, water outlet, or manifold.

RELAY KIT INSTRUCTIONS
RED + connect directly to the battery.
WHITE wire to ignition switch power source.
BLACK goes to the thermos switch.
BLUE wire goes to the Fans.
