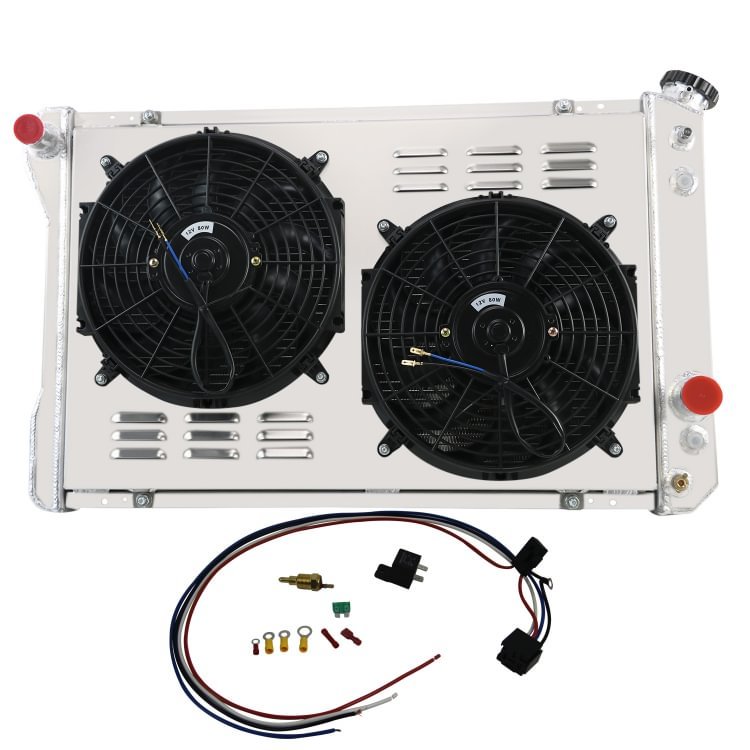

Alloyworks 4 Row Radiator+Shroud Fans Relay For 1982-1992 Chevy Camaro Pontiac Firebird V8

Alloyworks 4 Row Radiator+Shroud Fans Relay For 1982-1992 Chevy Camaro Pontiac Firebird V8

MC951DZFSXJ90W-BN
$369.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Fits:
1982-1986 Chevrolet Camaro 2.5L 2474CC 151Cu. In. l4
1990-1992 Chevrolet Camaro 3.1L 189Cu. In. V6
1982-1992 Chevrolet Camaro 5.0L 305Cu. In. V8
1987-1992 Chevrolet Camaro 5.7L 350Cu. In. V8
1989 Chevrolet P20 5.7L 350Cu. In. V8
1989-1990 Chevrolet P30/P60 5.7L 350Cu. In. V8

1982-1986 Pontiac Firebird 2.5L 2474CC 151Cu. In. l4
1990-1992 Pontiac Firebird 3.1L 189Cu. In. V6
1989 Pontiac Firebird 3.8L 3800CC 231Cu. In. V6
1982-1992 Pontiac Firebird 5.0L 305Cu. In. V8
1987-1992 Pontiac Firebird 5.7L 350Cu. In. V8

Click here to view all compatible vehicles

This Radiator Size:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Material: AA5052 Aluminum
Core Size: 26.26"W x 16.5"H
Overall Dimensions: 31.5"W x 19.7"H
Tank Size: 2 1/2  x 18 5/8
Inlet Hose Connection:  1-3/8" Driver Side
Outlet Hose Connection: 1-5/8" Passenger Side
FITS AUTOMATIC OR MANUAL TRANSMISSIONS
Transmission Oil Cooler: YES
OEM Style Brass Petcock Drain
CNC machined filler neck and cap
Trans Cooler Details: ¢26×290×M12*1.25(Z)
Mounting Type: Saddle
Mounting Specs: Vert - 22 3/8 Horizontal - 17 1/2
Please Check the Size Before You Buy!

AA5052 Aluminum Shroud+Fan:

The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

Fan Specification:
Diameter : 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 90W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 1730cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 90 watt motor will keep your engine cool.
