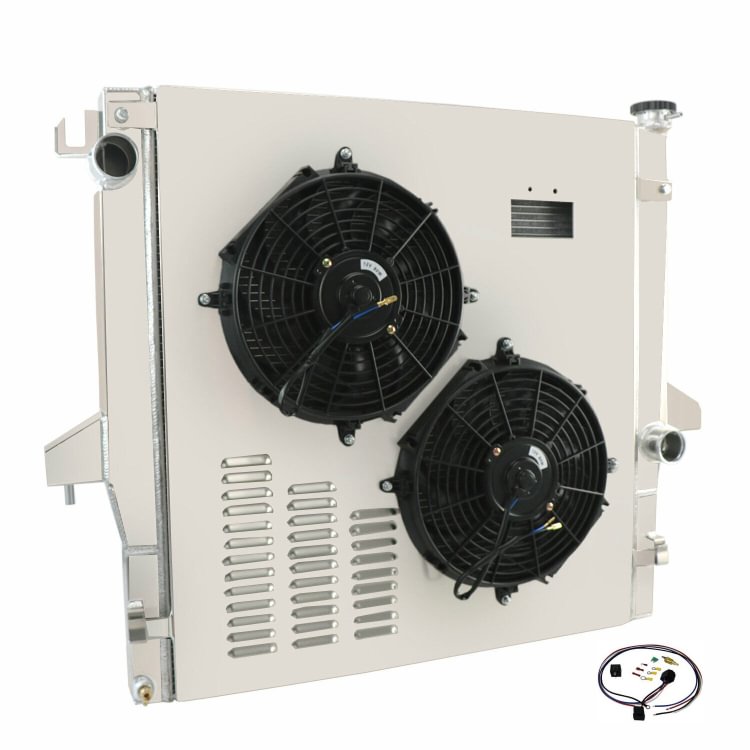

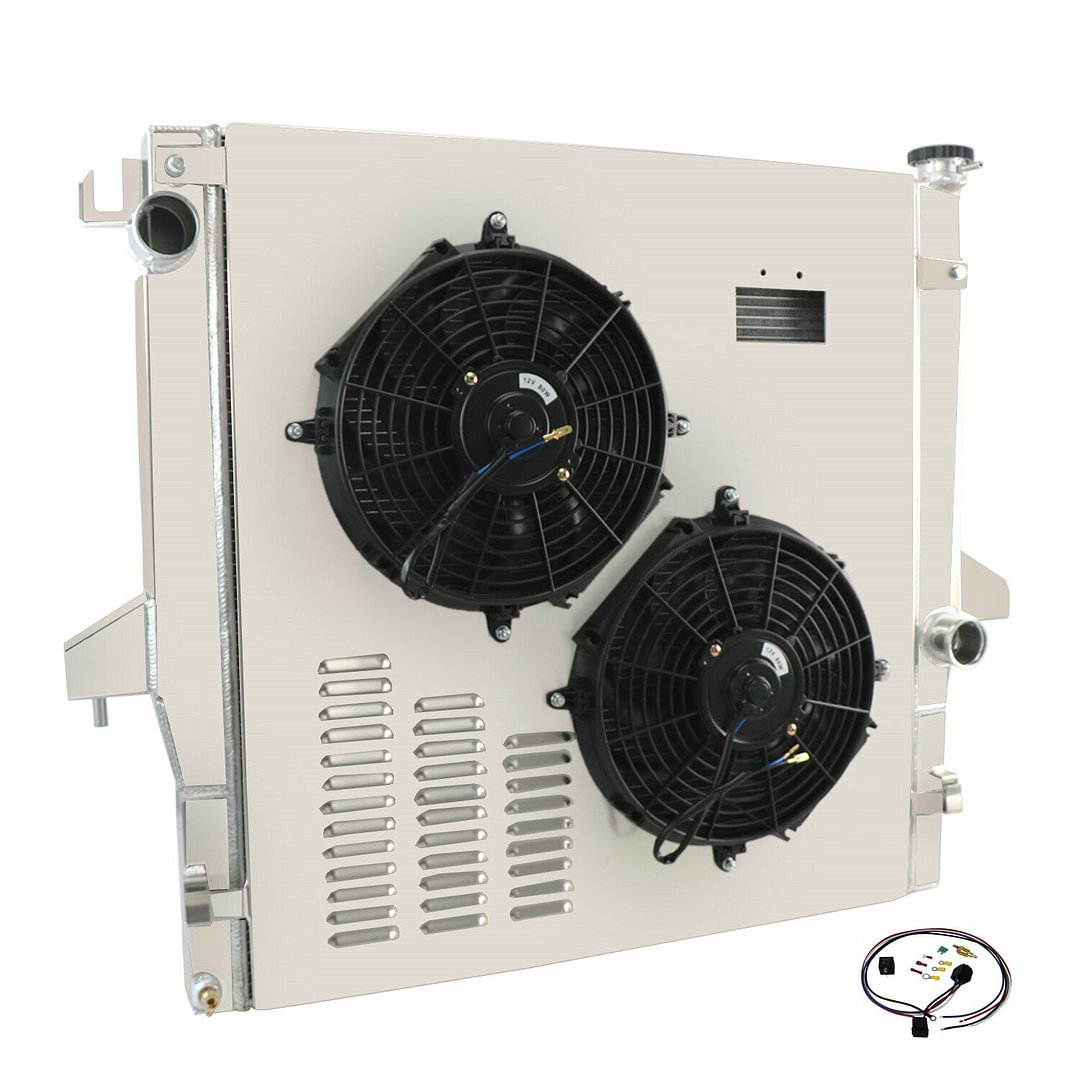

Alloyworks 4 Rows Aluminum Radiator with Shroud Fan Thermostat For 2003-2009 Dodge Ram Pickup 2500 3500 4000 4500 5.9L 6.7L Chassis Cab 30 2/5" x 37 7/8"

Alloyworks 4 Rows Aluminum Radiator with Shroud Fan Thermostat For 2003-2009 Dodge Ram Pickup 2500 3500 4000 4500 5.9L 6.7L Chassis Cab 30 2/5" x 37 7/8"

536-51026DZFSXJ90W-BN
$632.64
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Fits:

2003-2010 Dodge Ram 2500 5.9L 359Cu. In. l6
2003-2007 Dodge Ram 3500 5.9L 359Cu. In. l6
2005-2006 Dodge Ram 4000 5.9L 359Cu. In. l6

2007-2010 Dodge Ram 2500 & Ram 3500 6.7L 408Cu. In. l6
2008-2009 Dodge Ram 4500 & Ram 5500 6.7L 408Cu. In. l6

Click here to view all compatible vehicles

Package Include:
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 12" 90W Fans (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Size:
Material:Full Aluminium
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Size: 27" x 29 1/4"x 2 4/9"
Overall Size: 30 2/5" x 37 7/8"
Inlet Diameter: 2"
Outlet Diameter: 2"
Please Check the Size Before You Buy!

FAN Specification:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.
