4 Row Radiator Shroud Fan Thermostat For 1968-1974 AMC AMX Javelin Marlin SST V8

MC407DZFSXJ

$309.00 20 % $386.25
11 sold
Qty
Product description
Product description

Application:
68-74 American Motors AMC Javelin
68-74 American Motors AMC AMX
60-62 American Motors AMC Rambler
65-66 American Motors AMC Marlin
58-70 American Motors AMC Rebel
68-74 American Motors AMC Wagon

Click here to view all compatible vehicles


Please Notice
The brackets for this version radiator are located on the back side of the radiator (facing the engine).


Radiator Configuration:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Tank Material: T-5057 Aircraft Grade Aluminum
Overall Size: 23 1/4"Height X 27 1/4" Width
Core Size: 15 7/8" Height X 24 1/8" Width
Inlet Diameter: 1 1/2" On Passenger Side
Outlet Diameter: 1 1/2" On Driver Side
Transmission Oil Cooler: Yes
Radiator Cap: CNC Precision Machined Radiator Cap
Radiator Drain Plug: OEM Style Brass Petcock Drain.


Please Notice
The brackets for this version radiator are located on the back side of the radiator (facing the engine).


This Listing Is Including

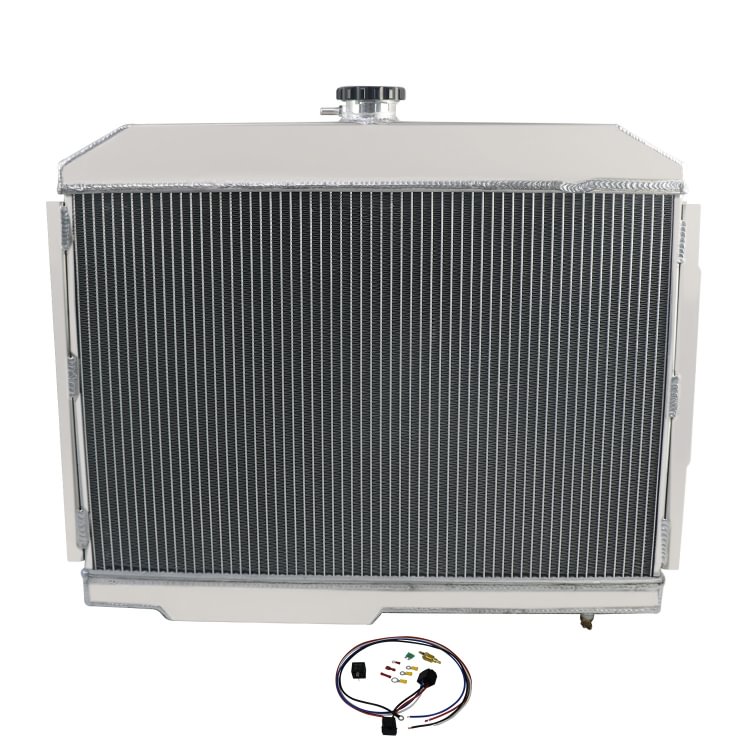

1 X 4-Row Aluminum Radiator (Includes Radiator+Cap)
1 X Aluminum Shroud+2 X 12"Electric Cooling Fan(Includes mounting kits)
1 XThermostat Relay Kit


Description:
Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area
that enables the heat to dissipate more efficiently. Aluminum Radiator is at least 30%-45% more efficient than stock one. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Covers vast selection of import and domestic applications
Stringently tested to guarantee optimum performance and dependability
Straightforward installation guaranteed
Carefully crafted to exceptional OE standards for precise fit
Made from high-grade materials for prolonged lifespan
Thermostat Kit:
Universal fit for any automotive application.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet hose or manifold.
