For 1967-1970 Ford Mustang Most Engines
For 1966-1970 Ford Falcon Most Engines
For 1963-1969 Ford Fairlane Most Engines
For 1968-1969 Ford Torino Most Engines
For 1966-1973 Mercury Comet Most Engines
For 1970 Mercury Cougar Most Engines
For 1971-1977 Ford Maverick Most Engines
Engines applications include: 2.8l L6, 3.3l L6, 4.1l V6, & 302ci V8 Only
Click here to view all compatible vehicles
Interchange Part Number: 339 CC339 ,AE339 ,EC339 ,MC339,DPI339
Part Numbers: CU339, DPI339, CC339,,CUC339 8010339, 433339
Oem Number: RA-FM69V8-3, RA-FM69V8-2 8FFB28D577D 8708915000
Pls check the item pictures carefully to avoid buy wrong!
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Size 16-3/8" Hx 19-3/4" Wx62mm
Overall Size 21-1/8" H x 22-1/8" W
Upper inlet 1-1/2" located on the Passenger side.
Lower outlet 1 3/4" located on the Driver side.
Transmisson: With Transmission Cooler.
All aluminum core and tank.
The tank is welded by TIG.
OEM Style Brass Petcock Drain
CNC Machined Filler Neck and Cap
Please Check the Size Before You Buy!

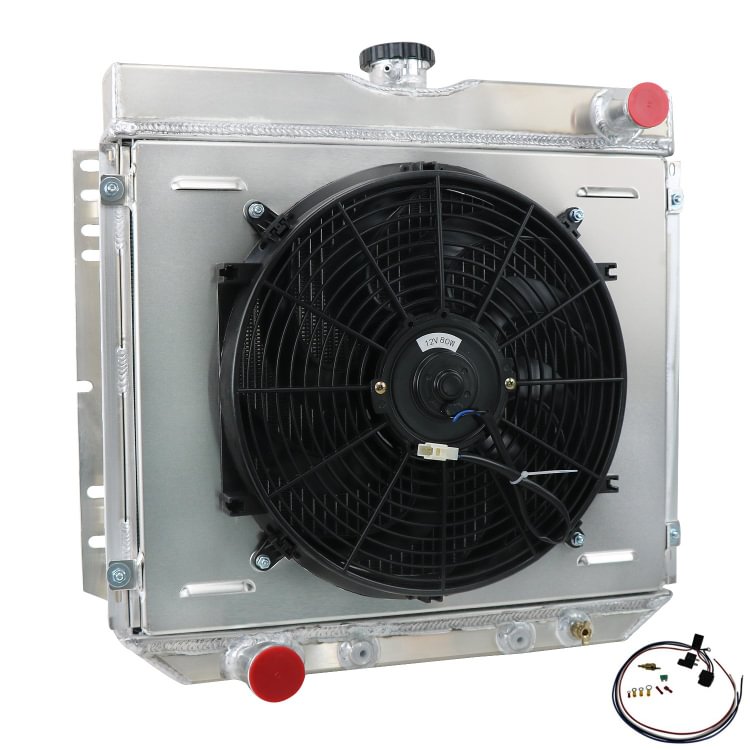

This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.Brand new, never used & good quality，All Aluminum For Better Performance Better Heat Exchange，Increase 30%-40% cooling than OEM radiator,handles high revving motor End Tanks are made from high quality sheet metal, not plastic like OEM Professional installation in highly recommended
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Thermostat Relay Kit:
Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.
