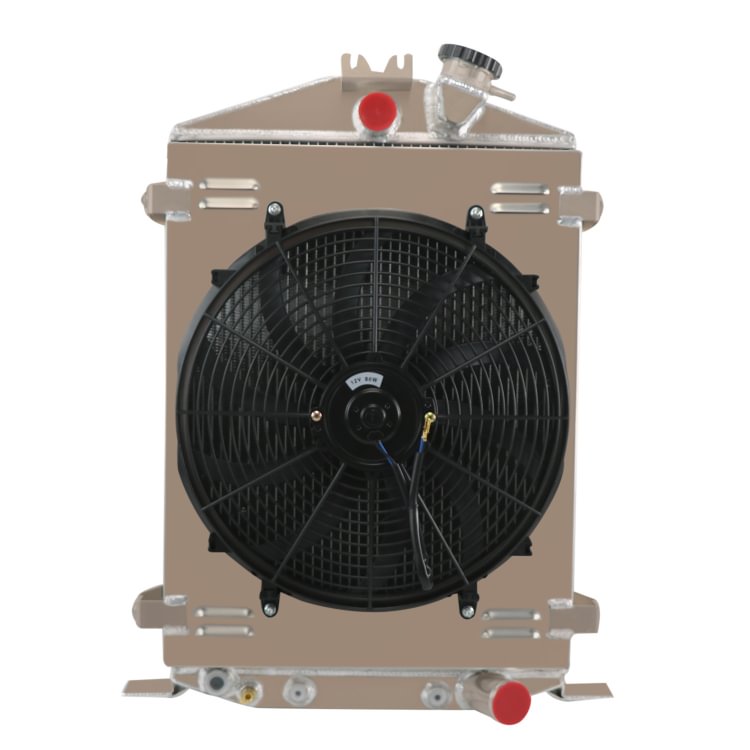

Alloyworks STRENGTHEN COOLING 4 Row Radiator Shroud Fan Relay For Ford Street Rod Hi High Boy Chevy Motor 1932-120W

Alloyworks STRENGTHEN COOLING 4 Row Radiator Shroud Fan Relay For Ford Street Rod Hi High Boy Chevy Motor 1932-120W

535-50136DZFSXJ120W-BN
$329.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Fits:
1932 Ford Model B/BB 3.3L 3278CC 200Cu. In. l4 GAS L-HEAD Naturally Aspirated
1932 Ford Model Model 18
THIS IS FOR A CHEVROLET MOTOR


Radiator Configuration:
Material:Full Aluminium
High Performance Racing Spec.
4-Row of tubes Core Racing Design
CORE SIZE: 16.45'' W X 22'' H
Overall Size:19 ½" W X 27.17" H X 7.48" Thick
INLET: 1 1/2'' In Center
OUTLET:1 3/4'' On Passenger Side
OEM Style Brass Petcock Drain
CNC Machined Filler Neck and Cap

Fan Specification:
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 3,000 cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
Amp Draw: 10amp
Fan Thickness: 3.27"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.


Description:
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full T-6061 Aluminum Construction
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.


Shroud+Fans
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.


Thermostat Kit:
Universal fit for any automotive application.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe adapter included.
Probe typically threads into radiator, water outlet hose or manifold.

Aluminum plate is pressed, high quality and durable.



THE PROBLEM WE WILL HELP YOU SOLVED OUT
