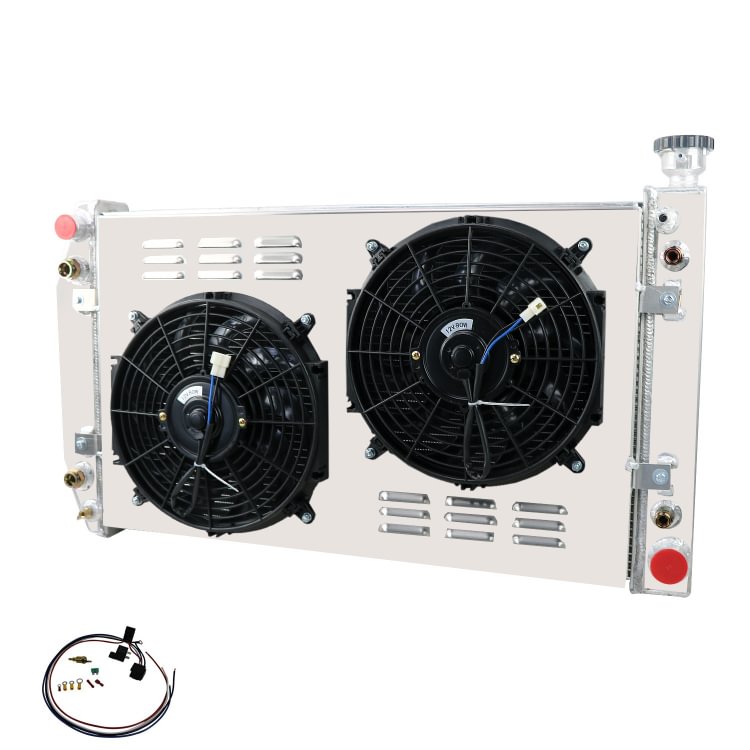

4 Row Radiator Shroud Fan Relay For Chevy C/K 1500 2500 3500 5.0L 5.7L 1988-2000
4 Row Radiator Shroud Fan Relay For Chevy C/K 1500 2500 3500 5.0L 5.7L 1988-2000
This radiator is only suitable for 1988-1999 CHEVY GMC C/K SERIES 1500 2500 3500 PICKUP .
This radiator is equipped with transmission oil cooler and engine oil cooler.
Fits Core Size : 17 1/4" Height x 28 1/4" Width
Overall Size: 20 1/4" Height x 33 7/8" Width
Although the compatibility of the radiator and other radiators is the same, the size of the radiator is different due to the different design. Please confirm the size of the original radiator before purchasing the Order.
This Radiator Size:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Core Height/Width: 17 1/4 x 28 1/4
Overall Height/Width: 20 1/4 x 33 7/8
Inlet Diameter: In - 1 5/16
Outlet Diameter: Out - 1 9/16
Upper Hose Fitting: Driver
Lower Hose Fitting: Pass
Engine Oil Cooler: M20 x 1.5 3/4-18 Adapter
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!
100% Brand New Item
The Radiator are 100% welded seams by TIG
We All Products With Made By OEM Approved & ISO Certified Manufacturers With Materials That Meets Or Exceeds Strict OEM Requirements
AA5052 Aircraft Grade Aluminum Radiator The core of the radiator is welded in vacuum brazing furnace, no epoxy.
This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
This Aluminum Radiator is at least 35%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Thermostat Relay Kit
Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe included.Probe typically threads into radiator, water outlet or manifold.
