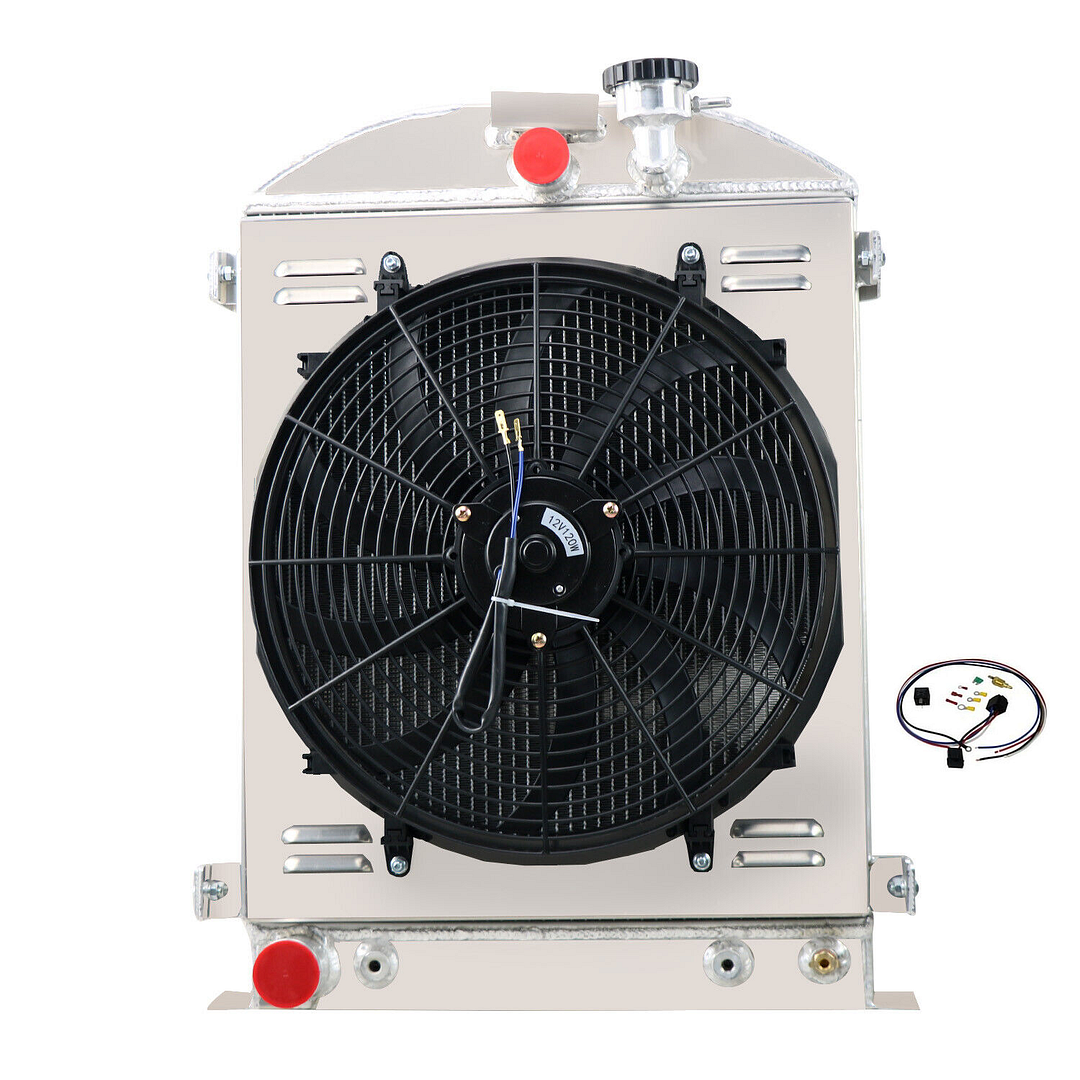

Alloyworks 4 Row Radiator Shroud Fan Relay For 29-31 Ford Model A Grill Shells Ford Engine -120W STRENGTHEN COOLING 25.4''H x 19.9''W

Alloyworks 4 Row Radiator Shroud Fan Relay For 29-31 Ford Model A Grill Shells Ford Engine -120W STRENGTHEN COOLING 25.4''H x 19.9''W

PT3172DZFSXJ120W-BN
$359.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Radiator Size

4-Row of tubes Core Racing Design

Core Size: 20'' H x 17.25'' W x 2.44'' T

Overall Size: 25.4''H x 19.9''W

Inlet Hose Connection: 1 1/2'' Center

Outlet Hose Connection: 1 3/4'' Driver Side

Transmission Oil Cooler: Yes

OEM Style Brass Petcock Drain

CNC Machined Filler Neck and Cap

For Ford V8 ENGINES

This radiator is easy to buy wrong, please check the size before purchase!

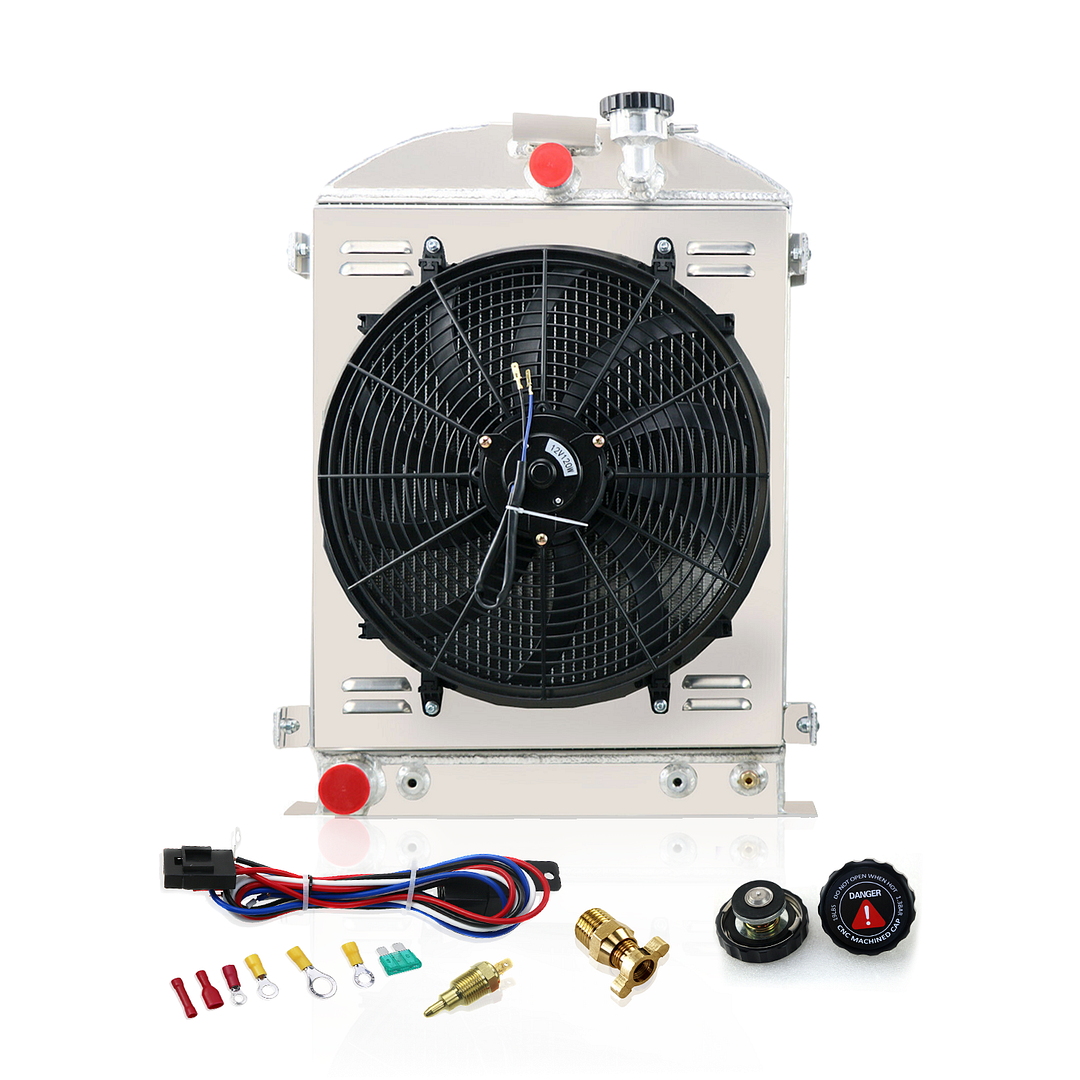

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

1 X 16" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

1 X 16" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Radiator Features

1. Made from Aircraft AA5052 grade aluminum for a prolonged lifespan and with a raw aluminum finish.

2. Brazed core technology to guarantee optimum performance and dependability.

3. All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable..

4. Billet Aluminum CNC machined fill neck is rugged and durable.

5. CNC machined cap with Engraved craftsmanship, anodized treatment.

6. OEM-style brass petcock drains much better than other plastic ones.

7. Carefully crafted to exceptional OE standards for a precise fit.

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its lightweight and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.

This Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and more resistant to temperature surges in racing applications.

Fan Specification

16" Fan

Voltage: DC 12 Volts

Maximum Fan CFM: 2150 cfm

Wattage: 120 Wattage

Thickness (in): 2.500"

Number of Blades: 10 S-Type blades

Maximum Fan RPM: 2,250 rpm

Amp Draw: 10 amps

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at the preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

The probe typically threads into the radiator, water outlet, or manifold.

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

About AlloyWorks

Established since 2006, AlloyWorks is a professional manufacturer of automotive parts. We are specialized in car radiators/heat exchangers and cooling system components.

In Alloyworks, we take pride in providing a seamless shopping experience with the comprehensive range of auto parts products. Your satisfaction is our priority, and we're here to make your shopping experience enjoyable and worry-free.
