Fits:
2005-2010, 2012 Dodge Dakota 3.7L 226Cu. In. V6
2005-2010 Dodge Dakota 4.7L 287Cu. In. V8
2006-2009 Mitsubishi Raider 3.7L 226Cu. In. V6
2006-2007 Mitsubishi Raider 4.7L 287Cu. In. V8
2011 Ram Dakota 3.7L 226Cu. In. V6 & 4.7L 287Cu. In. V8
Click here to view all compatible vehicles
Package Include:

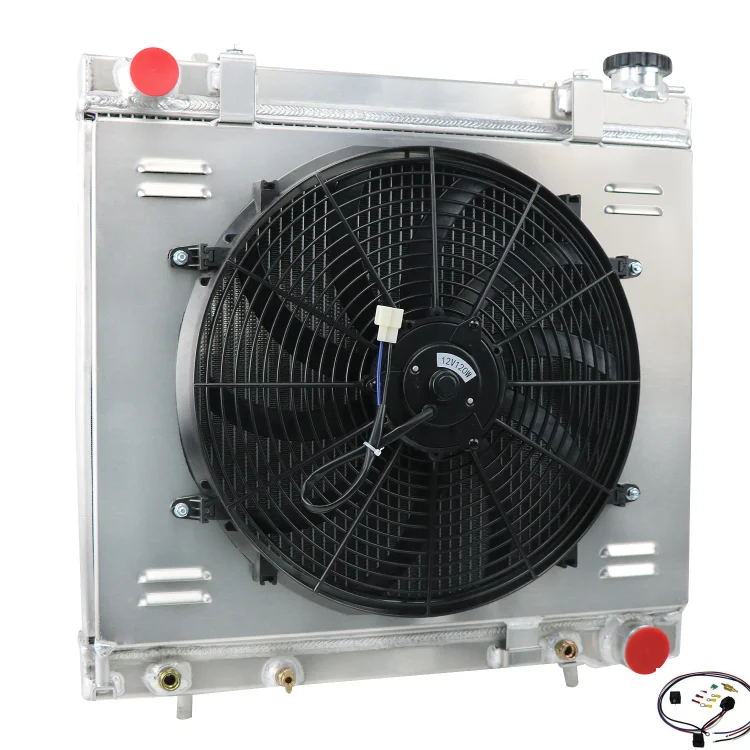

1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16''Fan (Includes mounting kits)
1 X Thermostat Relay Kit
This Radiator Configuration:
Material: AA5052 Aluminum
4-Row of tubes Core Racing Design
Core Dimensions: 17 3/4''Height x 21 5/8''Width x 2 4/9''Thick
Overall Dimensions: 23''Height x 24 2/9''Width x 7 1/2''Thick
Inlet/Outlet Dimensions: 1 1/2in. / 1 3/4in.
Automatic transmission cooler: 5/8-18 UNF(Z)
Engine oil cooler: Without Engine Oil Cooler
CNC Precision Machined Radiator Cap
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!
Fan Specification:
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 3,000 cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
Amp Draw: 10amp
Fan Thickness: 3.27"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
