4 Row Radiator Shroud Fan Relay For 1985-1996 Ford F150/F250/F350 Truck Bronco

4 Row Radiator Shroud Fan Relay For 1985-1996 Ford F150/F250/F350 Truck Bronco

536-51211DZFSXJ90W-BN
$369.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Click here to view all compatible vehicles

This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!

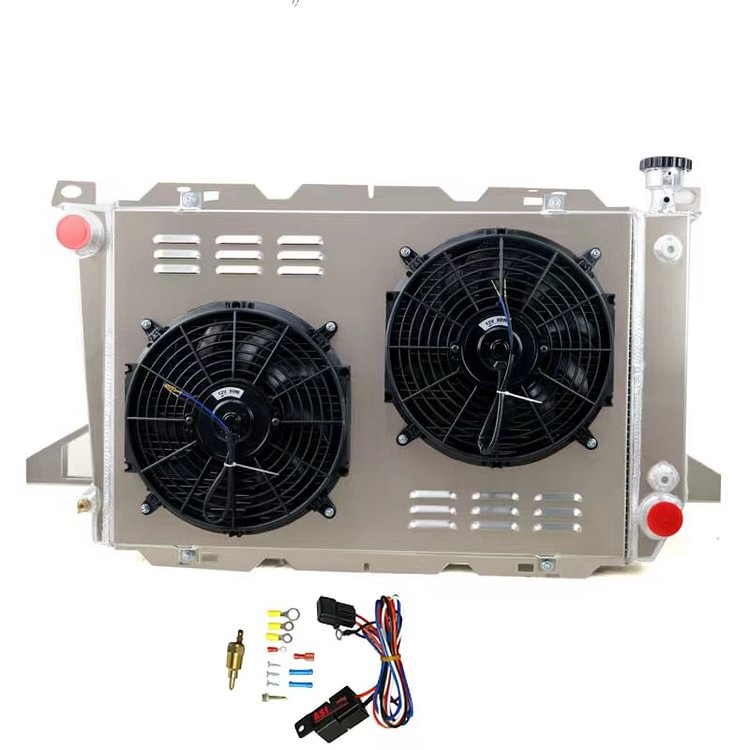

Package Include:
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Size:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Petock Drain:OEM style brass petcock drain
CORE SIZE: 18" H  x 27 5/9" W
OVERALL SIZE: 22 " H x  37 4/5" W
Inlet  Size :1-3/4 In located in driver side Top Left
Outlet  Size:1-3/4 In located on passenger side Bottom Right

FANS:
Volt :12v
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Made from AircraftAA5052grade aluminum for prolonged lifespanand with raw aluminum finish
Brazed core technology to guarantee optimum performance and dependability
All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
Billet Aluminum CNC machined fill neck rugged and durable
CNC machined cap with Engraved craftsmanship, anodized treatment.
Carefully crafted to exceptional OE standards for precise fit.
