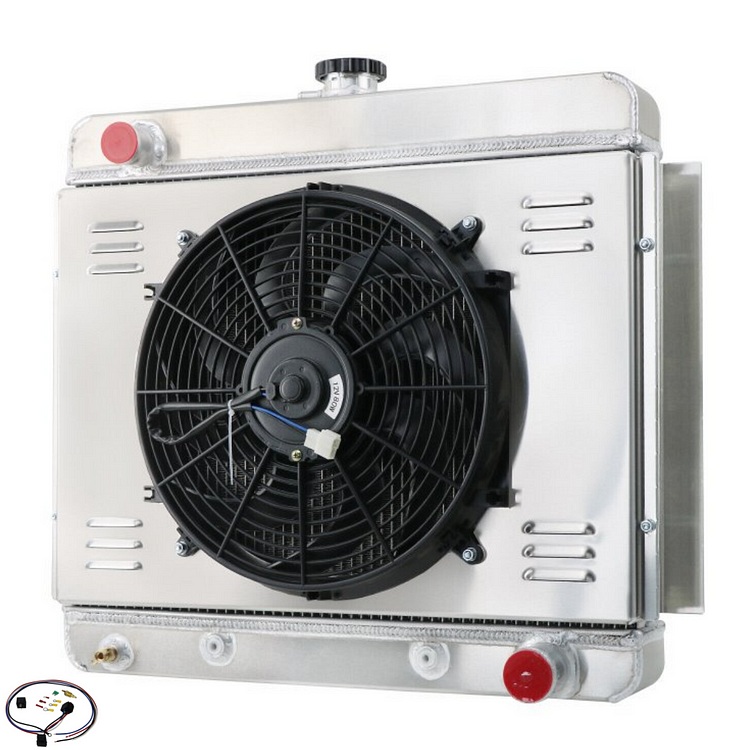

4 Row Radiator+Shroud Fan+Relay For 1962-1967 1963 Chevrolet Nova Chevy II L6 V8
4 Row Radiator+Shroud Fan+Relay For 1962-1967 1963 Chevrolet Nova Chevy II L6 V8
1962-1967 Chevrolet Chevy II 2.5L 153Cu. l4
1962-1967 Chevrolet Chevy II 3.2L 194Cu. l6
1964-1966 Chevrolet Chevy II 3.8L 230Cu. l6
1967 Chevy Chevrolet II 4.1L 250Cu. l6
1963-1967 Chevrolet Chevy II 4.6L 283Cu. V8
1965-1967 Chevrolet Chevy II 5.3L 327Cu. V8
1965-1966 Chevrolet Chevy II 5.4L 327Cu. V8
Click here to view all compatible vehicles
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 14" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Petock Drain:OEM style brass petcock drain
Core Dimensions: 22.36" H x 16.14" W x 2.5"T
Overall Dimensions: 25.78" H x 22.45" W
Upper inlet: 1-1/2" located Driver Side
Lower outlet: 1-3/4" located Passenger Side
Transmission Oil Cooler: Yes
OEM Style Brass Petcock
CNC machined filler neck and 1.3BAR Cap
Please Check the Size Before You Buy!
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 14.050”
Thickness (in): 2.500”
Number of Blades: 8 S-Type blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit Installation:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
What About AA5052?
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1. Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
2. Brazed core technology to guarantee optimum performance and dependability
3. All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4. Billet Aluminum CNC machined fill neck rugged and durable
5. CNC machined cap with Engraved craftsmanship, anodized treatment.
6. Carefully crafted to exceptional OE standards for precise fit.
