Alloyworks 4 Row Radiator Shroud Fan For Studebaker 2R11 2R10 2R15 TRUCK 2.8 4.0 1949-1952

Alloyworks 4 Row Radiator Shroud Fan For Studebaker 2R11 2R10 2R15 TRUCK 2.8 4.0 1949-1952

535-50235DZFSXJ120W
$359.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Click here to view all compatible vehicles

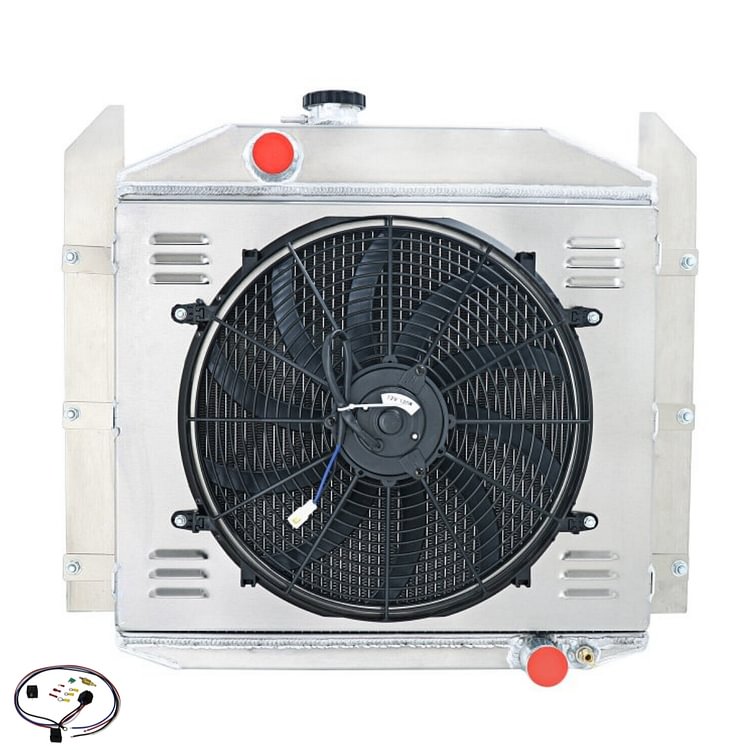

Package Include:
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16" 120W Fan (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Size
Material: AA5052 Aluminum Tank&Core
Core Row : 4 Rows
Core Height: 17 3/4''
Core Width: 21 5/8''
Overall Height: 23 1/2''
Overall Width: 27 1/8''
Inlet Location: Driver
Inlet Diameter: 1 1/2''
Outlet Location: Passenger
Outlet Diameter: 1 1/2''
Internal Transmission Oil Cooler: No

Fan Specification:
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 3,000 cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
Amp Draw: 10amp
Fan Thickness: 3.27"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.

Description:
1.Our Radiator is made of AA5052 aircraft aluminum,5052 Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water).
2.Higher density core: cooling rows are spaced 3/8" apart,giving you 25% more rows within the core than other aluminum radiators sold
3. 14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators. AA5052 aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high efficiency core can have tubes on 3/8" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had.

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.

Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
