4 Row Radiator Shroud Fan for 64-1967 Pontiac Le-Mans Tempest GTO 5.3L V8 Engine

MC1680DZFSXJ

4 Row Radiator Shroud Fan for 64-1967 Pontiac Le-Mans Tempest GTO 5.3L V8 Engine

MC1680DZFSXJ

Price
$369.00
$369.00
Save $0.00
Quantity
Please check the compatible vehicles below.
Please check the size before you buy.
There may be some deviation in manual measurement data
One year warranty and USA warehouse

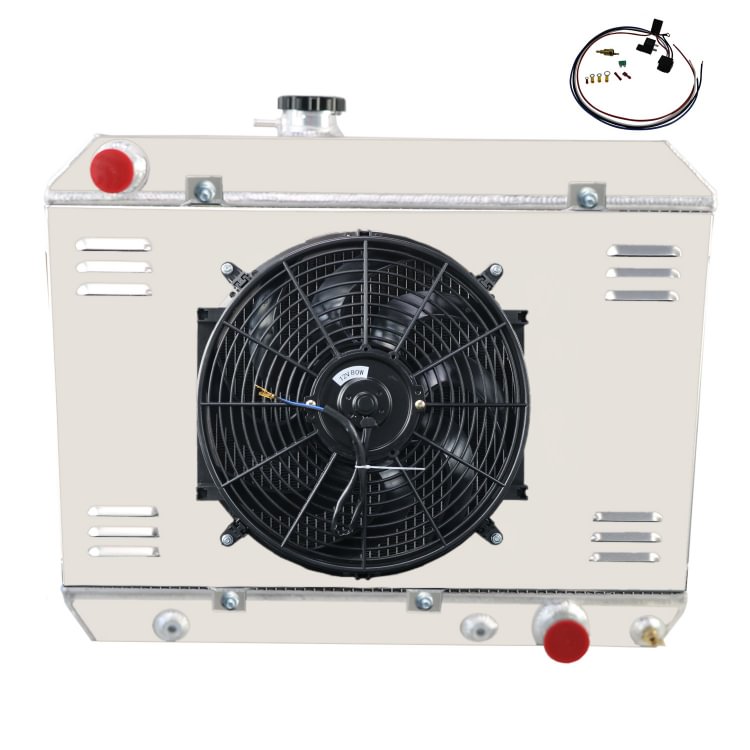

Item Include:
1 X 4-Row Aluminum Radiator
1 X Aluminum Srroud  + 14" Fan
1  X Thermostat Relay Kit

Compatible With
This radiator is designed  for
Pontiac Tempest 1965-1967 (5.3L V8)
Pontiac GTO 1965-1967 (5.3L V8)
Pontiac Lemans 1965-1967 (5.3L V8)

Radiator Configuration:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Material: All Aluminum
Core Dimensions: 15-3/4" H x 25" W
Overall Dimensions:  21-3/4" H x 25-1/2" W
Upper Inlet 1-1/2" located on the Driver side
Lower Outlet 1-3/4 located on the Passenger side
Trans Cooler:1/2 20 Straight Thread G1/4
Includes CNC machined filler neck and cap
OEM Style Brass Petcock Drain
Please Check the Size Before You Buy!


Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Description:

Some of the questions we always get are "What is the difference between an aluminum radiator and a factory radiator?" & "Why should I upgrade to an aluminum radiator". We are going to break down some of the key features, benefits, and difference you will see in an aluminum radiator.

BETTER MATERIALS/CONSTRUCTION

One of the most obvious differences is going to be the all aluminum construction, where the factory radiators are usually a mix of aluminum and plastic. This greatly reduces the changes of your radiator leaking as the plastic tanks found on OEM radiators often crack over time. With most aluminum radiators, you will get wider, more efficiently shaped tubes that help cool coolant faster.

MORE ROWS

Aftermarket aluminum radiators are often offered in multi-row options. You may have heard the terms "2 row radiator" or 3 row radiator" used in the industry. This simply refers to the amount of rows in the core of your radiator. More rows means more coolant can flow through the radiator, thus keeping your engine cooler.

LIGHTER WEIGHT

Depending on what year car you have, an aluminum radiator could be a lighter option for you as well. This will be a great upgrade for older cars with copper radiators. Newer vehicles with copper core and plastic tank radiators may not see much of a difference in weight.
