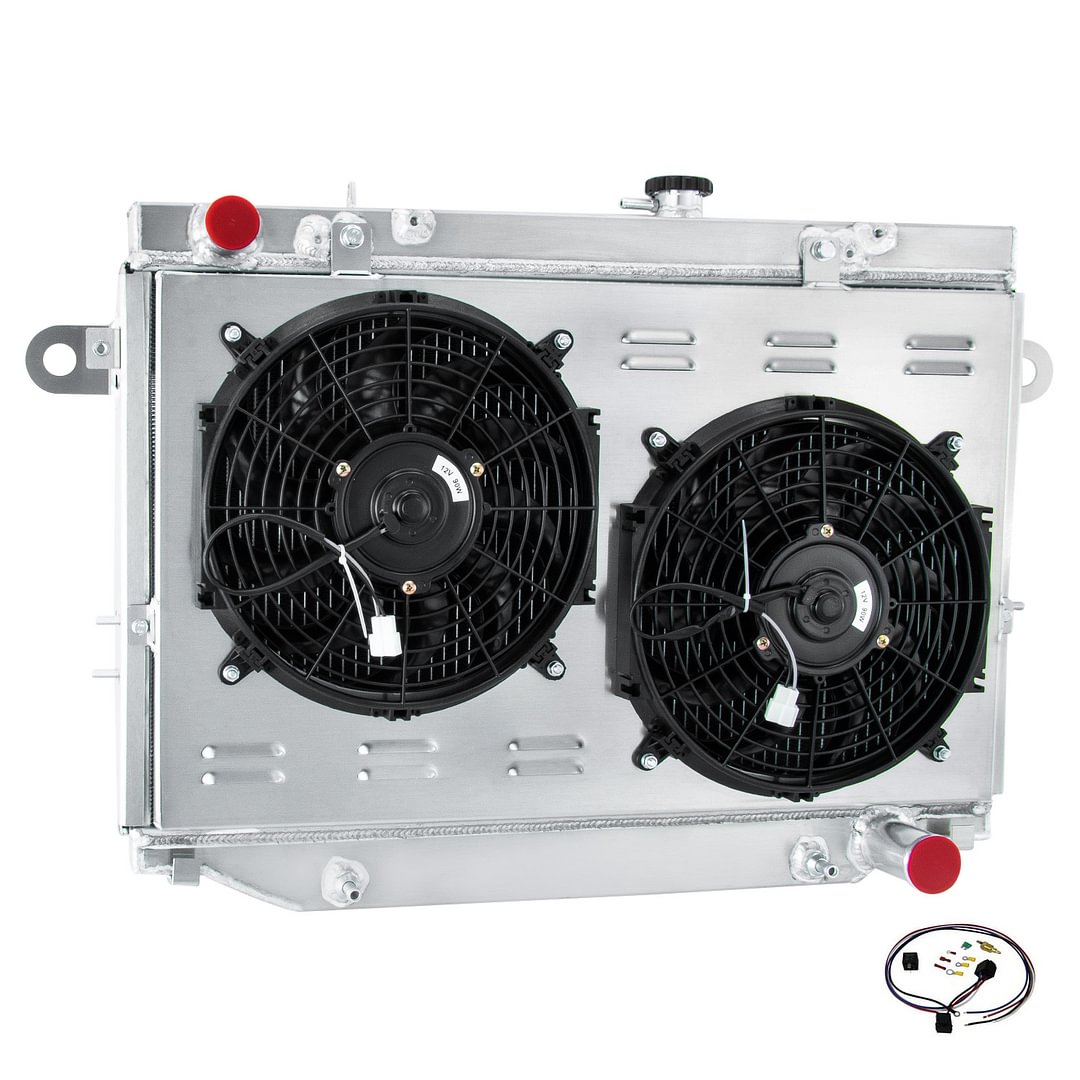

4 Row Radiator Shroud Fan For 1998-2007 Toyota Landcruiser Lexus LX470 4.7L
4 Row Radiator Shroud Fan For 1998-2007 Toyota Landcruiser Lexus LX470 4.7L
Click here to view all compatible vehicles
Core Material: All Aluminum
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Dimensions: 27"in Wide X 16-1/2"in High
Overall Dimensions: 34-1/2"in Wide X 22-1/4"in High
Upper Outlet Diameter : 1-1/2"in
Lower Inlet Diameter : 1-3/4"in
Radiator Cap:CNC Precision Machined Radiator Cap
Radiator Drain Plug:OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!
Diameter : 12'' (Blade to Blade)
Voltage: DC 12 Volts
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 90 watt motor will keep your engine cool.
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1.made of AA5052 aircraft aluminum,stronger than other popular alloys and has increased corrosion resistance.
2.Brazed core technology to guarantee optimum performance and dependability.
3.AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable.
4.Higher density core: cooling rows are spaced 3/8" apart.giving you 25% more rows within the core than other aluminum radiators.
5.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators,throws off much more heat.
