4 ROW Radiator+Shroud Fan For 1988-94 Chevy S10 Blazer GMC Jimmy S15 V6 AT-90w

4 ROW Radiator+Shroud Fan For 1988-94 Chevy S10 Blazer GMC Jimmy S15 V6 AT-90w

535-50377DZFSXJ90W-BN
$329.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Click here to view all compatible vehicles

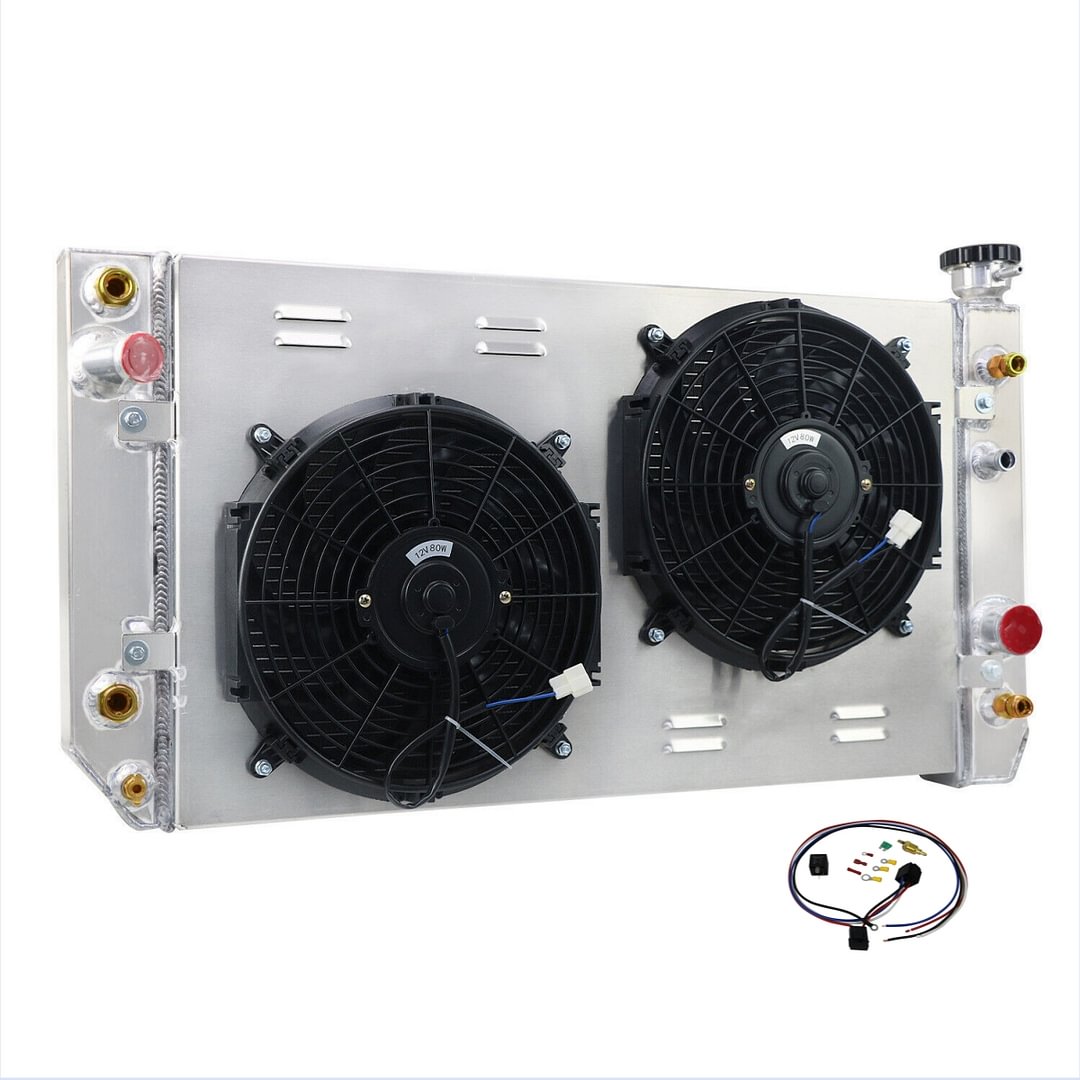

Package Include:
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Size:
High Performance Racing Spec.
Brand:Alloyworks
4-Row of tubes Core Racing Design
Petock Drain:OEM style brass petcock drain
Core Size: 14 9/10" H x 26 1/4" W
Overall Size: 18 1/10" H x 32" W
Upper Inlet: 1 5/16" located on the Driver side
Lower Outlet: 1 9/16" located on the Passenger side
Transmission Oil Cooler: M20*1.5
Engine Oil Cooler:1/2-20UNF

FAN Specification:
Maximum Fan CFM: 1730 cfm
Motor:90W
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

The advantages of our radiator:
Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
Brazed core technology to guarantee optimum performance and dependability
All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
Billet Aluminum CNC machined fill neck rugged and durable
CNC machined cap with Engraved craftsmanship, anodized treatment.
OEM style brass petcock drain much better than other plastic one
Carefully crafted to exceptional OE standards for precise fit.
All New Radiators - 100% leak tested.
The tanks are 100% welded by TIG.
