4-Row of tubes Core Racing Design
High-Performance Racing Spec
Core Material: AA5052 Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Core Dimensions: 17 1/4" H x 28 1/4" W x 2.44'' T
Overall Dimensions: 20 1/4" H x 33" W x 6.3'' T
Upper Inlet: 1 1/4" located on the Driver side
Lower Outlet: 1 1/2" located on the Passenger side
Transmission Oil Cooler: 1/2-20UN
Engine Oil Cooler: Not Include
OEM Style Brass Petcoke
CNC machined filler neck and 1.3BAR Cap
Please Check the Size Before You Buy!

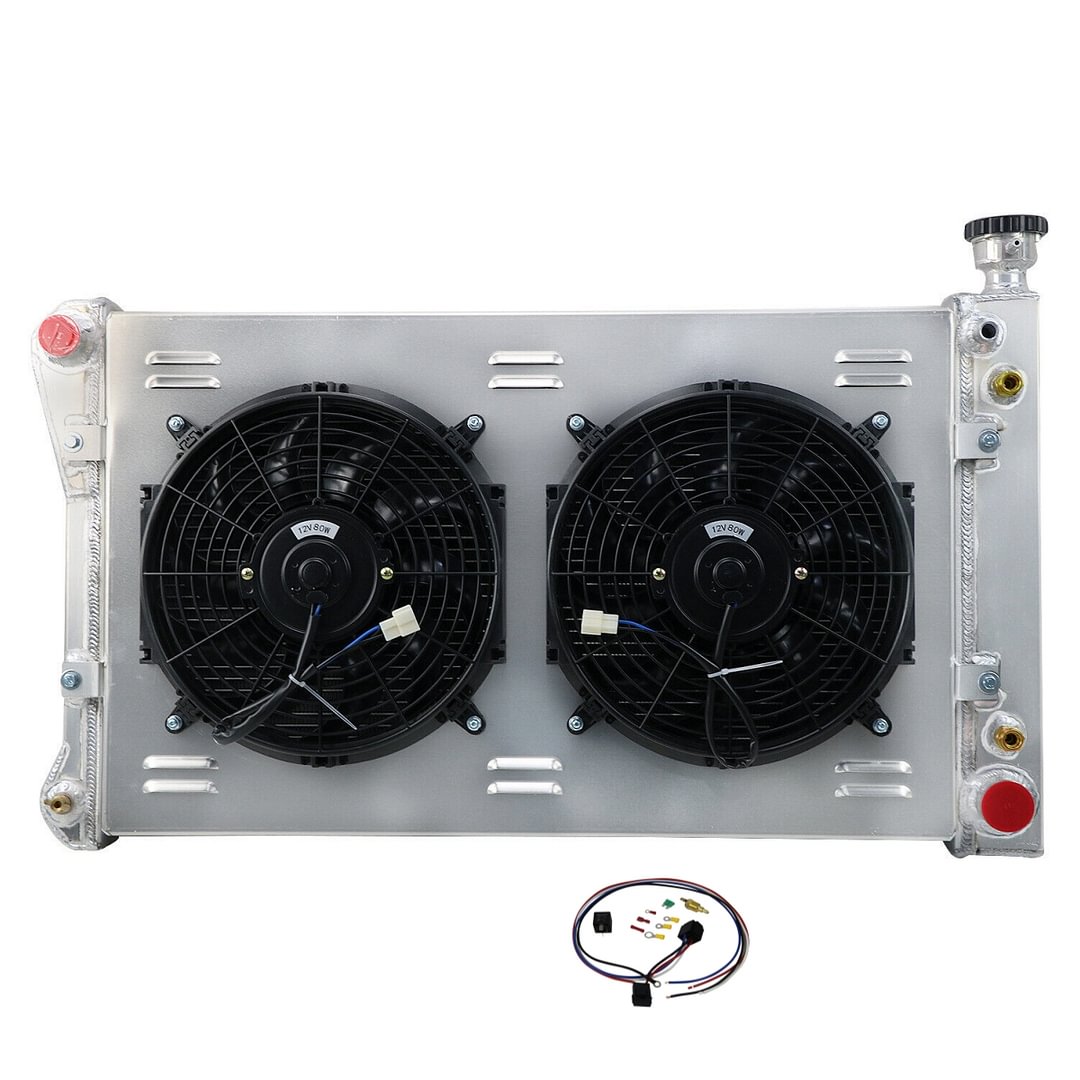

1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kits
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kits
Diameter : 12'' (Blade to Blade)
Voltage: DC 12 Volts
Maximum Fan CFM: 1730 cfm
Wattage: 90 Wattage
Thickness (in): 2.500"
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
The core of this 1997 Chevy 1500 radiator is welded in a vacuum brazing furnace without epoxy, ensuring durability and reliability. Made from high-quality A5052 aluminum, this 100% TIG-welded Chevy Silverado radiator offers stronger construction and higher coolant capacity than OEM units. Designed for maximum cooling efficiency, this aluminum radiator helps prevent premature engine failure, making it an ideal choice for Chevy radiators.
Higher density core: Cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators.
This AA5052 aluminum radiator offers superior cooling efficiency to prevent engine failure. Its lightweight, high-heat transferring design with tube and fin construction boosts surface area for better heat dissipation, making it 30%-45% more efficient than stock car radiators. With a larger coolant capacity, this aluminum radiator ensures your system stays efficient and resists temperature surges, especially in racing conditions.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at a preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
RED + connect directly to the battery.
WHITE wire to ignition switch power source.
BLACK goes to the thermos switch.
The BLUE wire goes to the Fans.
This setup will run Fans & pull air in through the radiator.
Advanced Production Process
Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.
Leading-edge Technology
Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.
