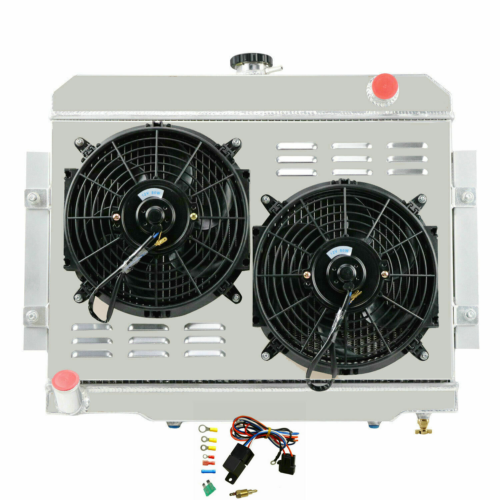

Alloyworks 4 Rows Aluminum Radiator with Shroud Fan For 1976-1986 1977 Jeep CJ5 CJ6 CJ7 3.8L 4.2L 5.0L AT 24.25" Width x 20.75" Height

Alloyworks 4 Rows Aluminum Radiator with Shroud Fan For 1976-1986 1977 Jeep CJ5 CJ6 CJ7 3.8L 4.2L 5.0L AT 24.25" Width x 20.75" Height

MC583DZFSXJ90W-BN
$309.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Click here to view all compatible vehicles

This Listing Is Including:
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 10" Fans (Includes mounting kits)
1 X Thermostat Relay Kit

This Radiator Size:
Radiator Material: Full Aluminum
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
OEM Style Brass Petcock Drain.
Core Size: 23.94"W x 15.75"H
Overall Size: 26.85" W x 21.75" H
Inlet/ Outlet: 1.50"/ 1.50"

Please Check the Size Before You Buy!

FANS:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 10.050”
Thickness (in): 2.500”
Number of Blades: 6 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.

Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Features:
1.Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
2.Brazed core technology to guarantee optimum performance and dependability
3.All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4.Billet Aluminum CNC machined fill neck rugged and durable
5.Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment
6.OEM style brass petcock drain much better than other plastic one
7.Carefully crafted to exceptional OE standards for precise fit.
