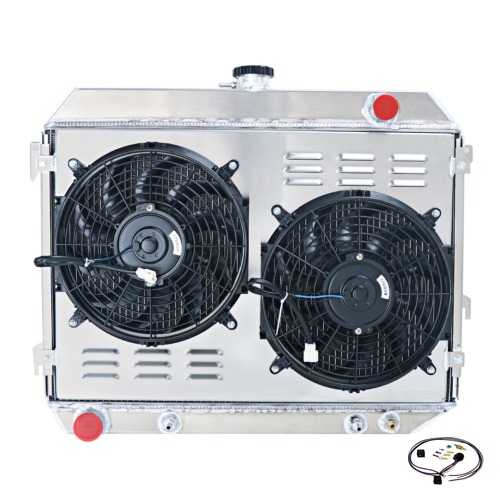

Alloyworks 4 Row Radiator with Shroud Fan For 1968-1974 Dodge Charger Plymouth Mopar Big Block 23''H x 29'' W

Alloyworks 4 Row Radiator with Shroud Fan For 1968-1974 Dodge Charger Plymouth Mopar Big Block 23''H x 29'' W

RAD-DODG-AL-185
$359.00
$379.00
Save 5%
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order.
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing

This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!

Radiator Size

High-Performance Racing Spec.

4-Row of tubes Core Racing Design

Core Material: AA5052 Aluminum

Tank Material: AA5052 Aircraft Grade Aluminum

Surface Finish: Aircraft Grade Raw Aluminum

Includes CNC machined filler neck and cap

Radiator Flow: DOWN FLOW

Core Size : 17.3''H x 26.38''W x 2.44''T

Overall Size : 23''H x 29'' W x 6.1''T

Hose Locations: IN: Passenger / OUT: Driver

Hose Fittings: IN: 1 1/2 - OUT: 1 3/4

Trans Cooler: ￠38×305×M10*1.0（T）

OEM Style Brass Petcock Drain

Please Check the Size Before You Buy!

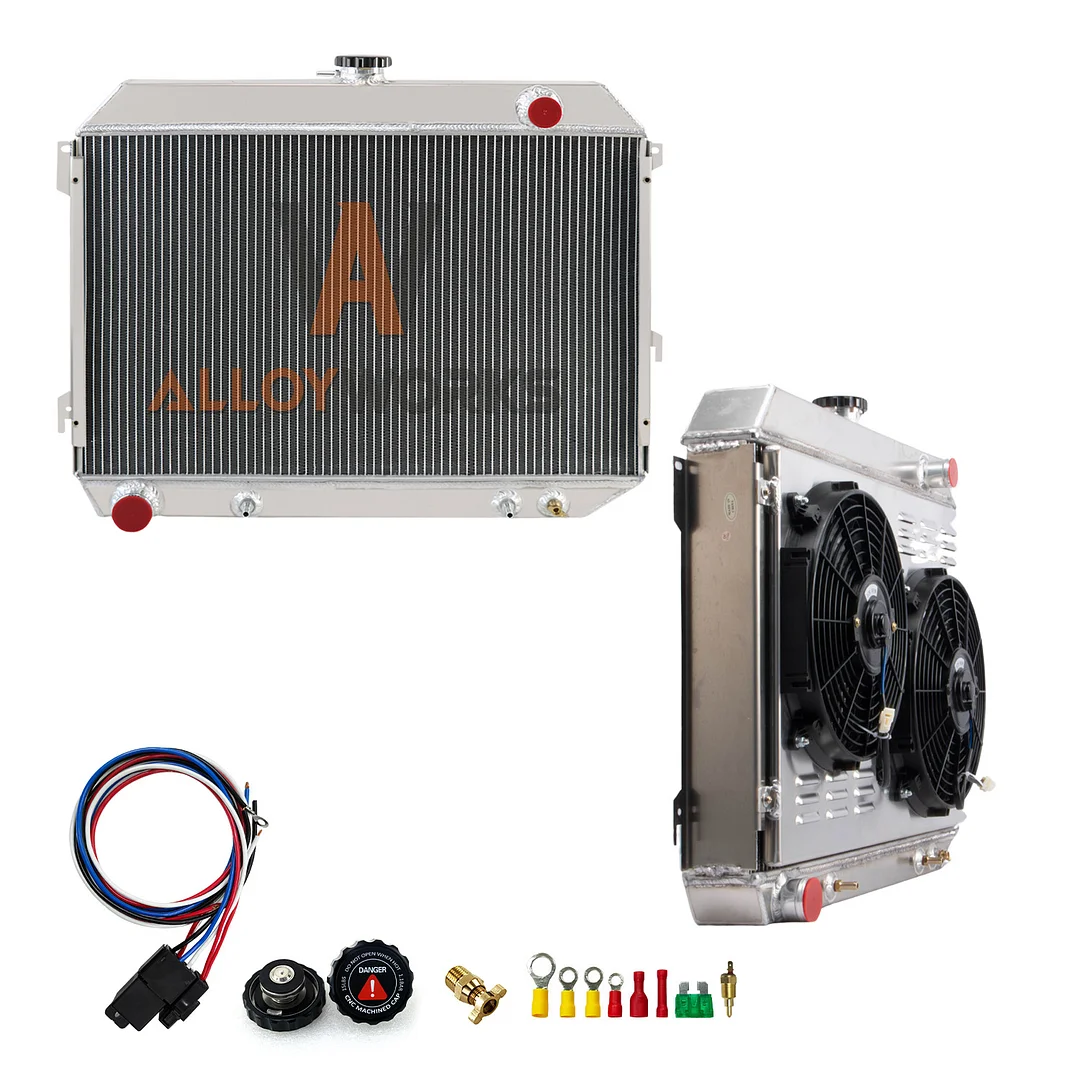

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Fan Specification

Diameter: 12'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 90W

Fan Thickness: 2.5"

Number of Blades: 10 S-Type blades

Maximum Fan CFM(Cubic Feet per Minute): 1730 cfm

Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%

S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect

A powerful 90-watt motor will keep your engine cool.

ISO/IATF16949 Certified — Full Aluminum Radiator for Superior Cooling and Perfect Fit

This radiator replacement is crafted from AA5052 aircraft-grade aluminum, with magnesium as a key alloying element, providing superior strength and excellent corrosion resistance, including saltwater protection. Featuring a high-density core with cooling rows spaced 3/8" apart, it delivers 25% more rows than standard aluminum radiators for improved cooling.

The core is vacuum brazed (no epoxy) and fully TIG-welded, resulting in greater strength and coolant capacity than OEM units.

Designed to maximize cooling efficiency, this aluminum radiator helps prevent premature engine failure by enhancing durability and temperature control.

Radiator Features:

This AA5052 aluminum radiator maximizes cooling efficiency to help prevent engine failure. Its lightweight, high-heat transfer tube-and-fin design increases surface area for faster heat dissipation, making it 30%-45% more efficient than stock radiators. With higher coolant capacity, it ensures a more stable cooling system, ideal for handling temperature surges in racing applications.

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at a preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.

This setup will run Fans & pull air in through the radiator.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.
