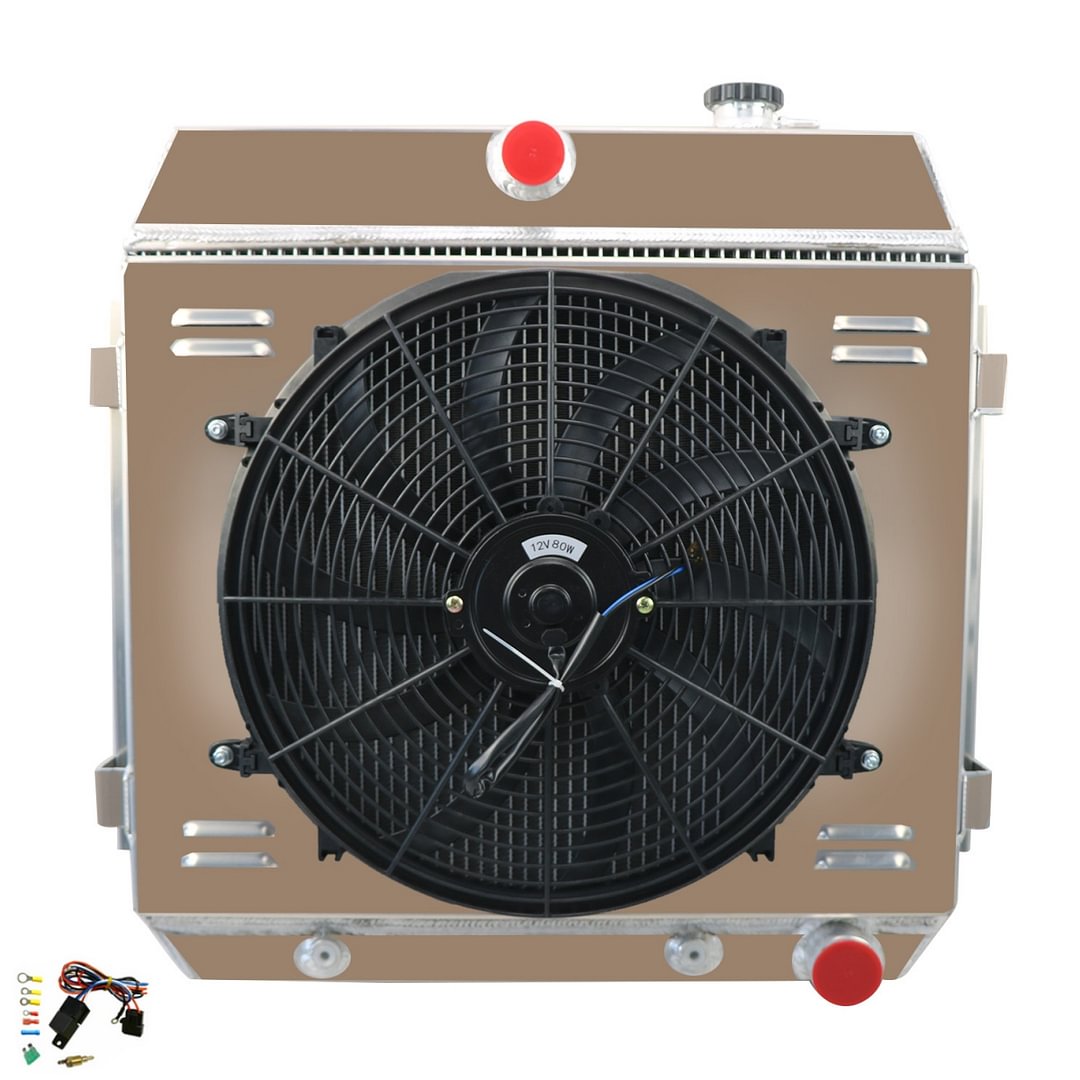

4 ROW RADIATOR SHROUD FAN FOR 1955-1957 CHEVY BEL AIR Nomad Del Ray V8 L6
4 ROW RADIATOR SHROUD FAN FOR 1955-1957 CHEVY BEL AIR Nomad Del Ray V8 L6
Click here to view all compatible vehicles
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Includes CNC machined filler neck and cap
Core Dimensions：21 1/2in HEIGHT X 17 1/4in WIDTH
Overall Dimensions: 24 1/2in HEIGHT X 23 3/4in WIDTH
Upper Hose： 1-1/2 in On Passenger side
Lower Hose： 1-3/4 in On Passenger side
This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!
Our Radiator is made of AA5052 aircraft aluminum. Its different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series.
More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.
AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold work ability and strength. The main alloying element of AA5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.
AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
3. Additional with thermostat,professional matching advice, consider for every detail and needed
Thermostat Relay Kit:
The thermostat kit is a universal fit, which makes it the perfect choice for any automotive vehicle and electric fan. This thermostat activates by grounding electric fans at preset temperature. It features a 185 degree Fahrenheit turn-on temperature and a 165 degree Fahrenheit turn-off temperature. The 3/8" NPT thread-in brass probe adapter are included.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
