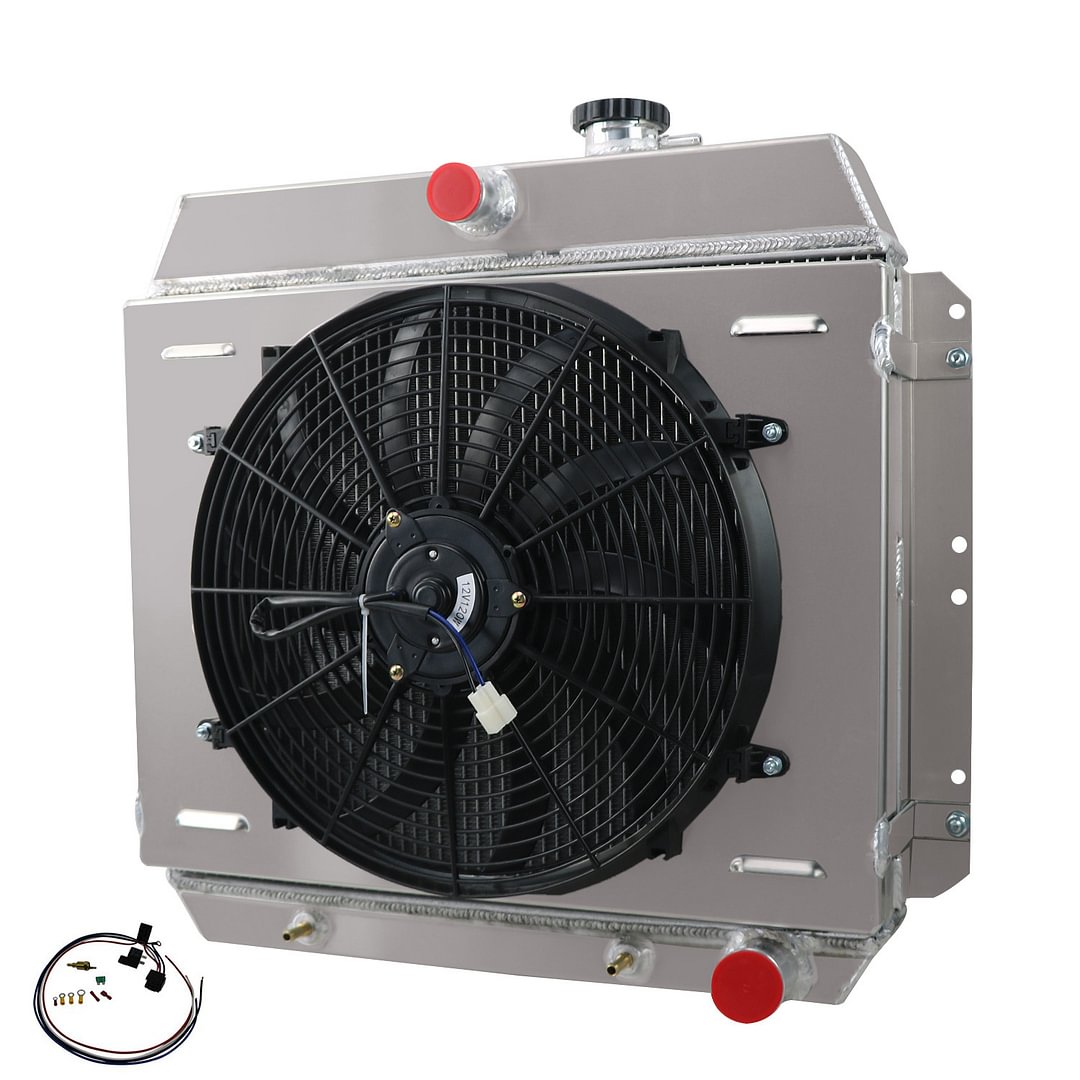

Alloyworks 4 Rows Aluminum Radiator with Shroud Fan for 1949-1954 Chevy Bel Air Fleetline Styleline Deluxe Sedan 3.5L 3.8L 3.9L V8-120W  EXTREME COOLING 23 3/4" Height  x 25 1/8" Width

Alloyworks 4 Rows Aluminum Radiator with Shroud Fan for 1949-1954 Chevy Bel Air Fleetline Styleline Deluxe Sedan 3.5L 3.8L 3.9L V8-120W EXTREME COOLING 23 3/4" Height x 25 1/8" Width

MC4954DZFSXJ120W-BN
$359.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Fits:
1950-1953 Chevy Bel Air 3.5L 216Cu. In. l6
1950-1954 Chevy Bel Air 3.8L 235Cu. In. l6
1950-1953 Chevy Bel Air 3.9L 236Cu. In. l6
1949-1951 Chevy Fleetline 3.5L 216Cu. In. l6
1949-1951 Chevy Styleline Deluxe 3.5L 216Cu. In. l6
1950-1952 Chevy Styleline Deluxe 3.9L 236Cu. In. l6
1949-1952 Chevy Styleline Special 3.5L 216Cu. In. l6
1950-1952 Chevy Fleetline/Styleline Deluxe/Styleline Special 3.8L 235Cu. In. l6


Part Number: 4954,CC4954,DPI4954,CU4954,MC4954


Specifications:
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Raw Aluminum Unpainted
Includes CNC machined filler neck and cap
Including OEM Style Brass Petcock Drain.
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Down Flow Or Cross Flow Type: Down Flow
Overall: 23 3/4" tall x 25 1/8" wide
Core: 17 1/8" tall x 21 1/2" wide
Inlet: 1 1/2" located on the ccheck
Outlet: 1 3/4" located on passenger side
Filler Neck Attached: Yes
Please Check the Size Before You Buy!


Fan Specification:
No load Speed (Revolutions Per Minute) : 3000 RPM
load Speed (Revolutions Per Minute) : 1860 RPM
Voltage: 12V
Watts: 120W


Description:
100% Brand New Item
The Radiator are 100% welded seams by TIG
We All Products With Made By OEM Approved & ISO Certified Manufacturers With Materials That Meets Or Exceeds Strict OEM Requirements
AA5052 Aircraft Grade Aluminum Radiator The core of the radiator is welded in vacuum brazing furnace, no epoxy.
This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
This Aluminum Radiator is at least 35%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Shroud+Fans
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Thermostat Relay Kit
Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe included.Probe typically threads into radiator, water outlet or manifold.

Aluminum plate is pressed, high quality and durable.



THE PROBLEM WE WILL HELP YOU SOLVED OUT
