4 Row Radiator&Shroud&Fan For 1947-1954 Chevy Truck 3100 3600 3800 Pickup 3.8L
4 Row Radiator&Shroud&Fan For 1947-1954 Chevy Truck 3100 3600 3800 Pickup 3.8L
Click here to view all compatible vehicles

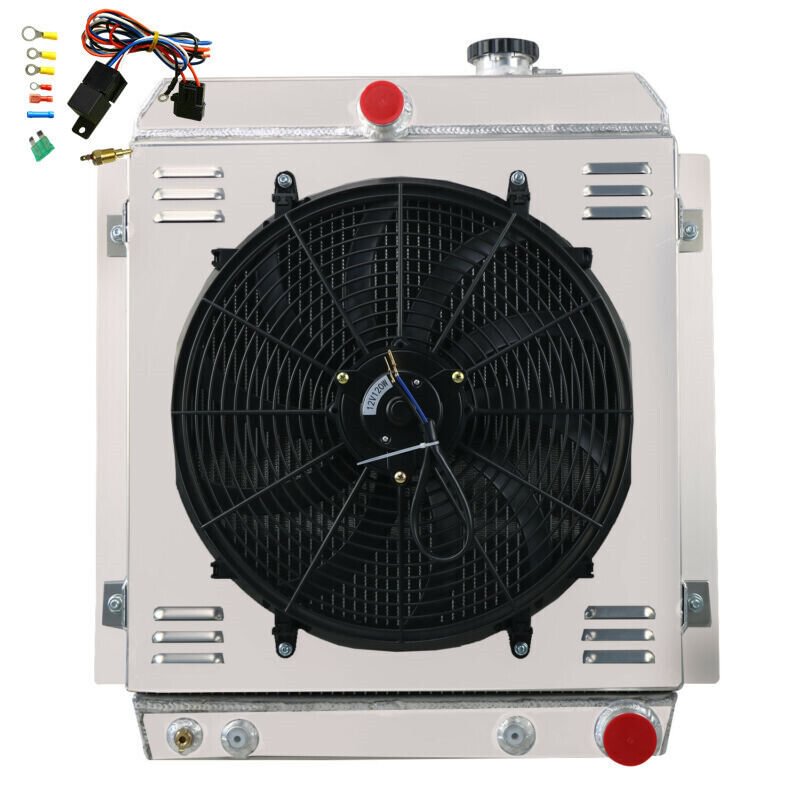

1 X 4-ROW AA5052 Aluminum Radiator+1.3BAR CNC CAP
1 X AA5052 Aluminum Shroud
1 X 16"Fan
1 X Thermostat Temperature Switch Relay Kit
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Material: AA5052 Aluminum
Core size：19 4/5"H×19 1/5"W
Inlet Size: 1 1/2"
Outlet Size: 1 3/4"
CNC Machined Billet and High Pressure Radiator Cap 1.3 Bar
100% Tig welded,no epoxy
OEM Style Brass Petcock Drain.
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Amp Draw: 10amp
Fan Thickness: 3.27"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.
100% TIG welded Aluminum,Precision TIG welded construction.
Billet CNC machined filler neck,Billet CNC machined fittings retain all mounting connections.
We are specialists in torch welding with solder as well as aluminum welding both with a torch as well as with a tig welding machine.Tig-weld every All-Aluminum Radiator to perfection to make a great looking radiator that won't crack or leak.
Core straps provide strength and added rigidity for extreme reliability in demanding conditions.
Higher density core: cooling rows are spaced 3/8" apart.giving you 25% more rows within the core than other aluminum radiators.
14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators,throws off much more heat.
Aluminum Radiator is at least 30%-45% more efficient than stock ones.
AA5052 Aluminum Shroud and Fan:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
3. Additional with thermostat,professional matching advice, consider for every detail and needed.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
