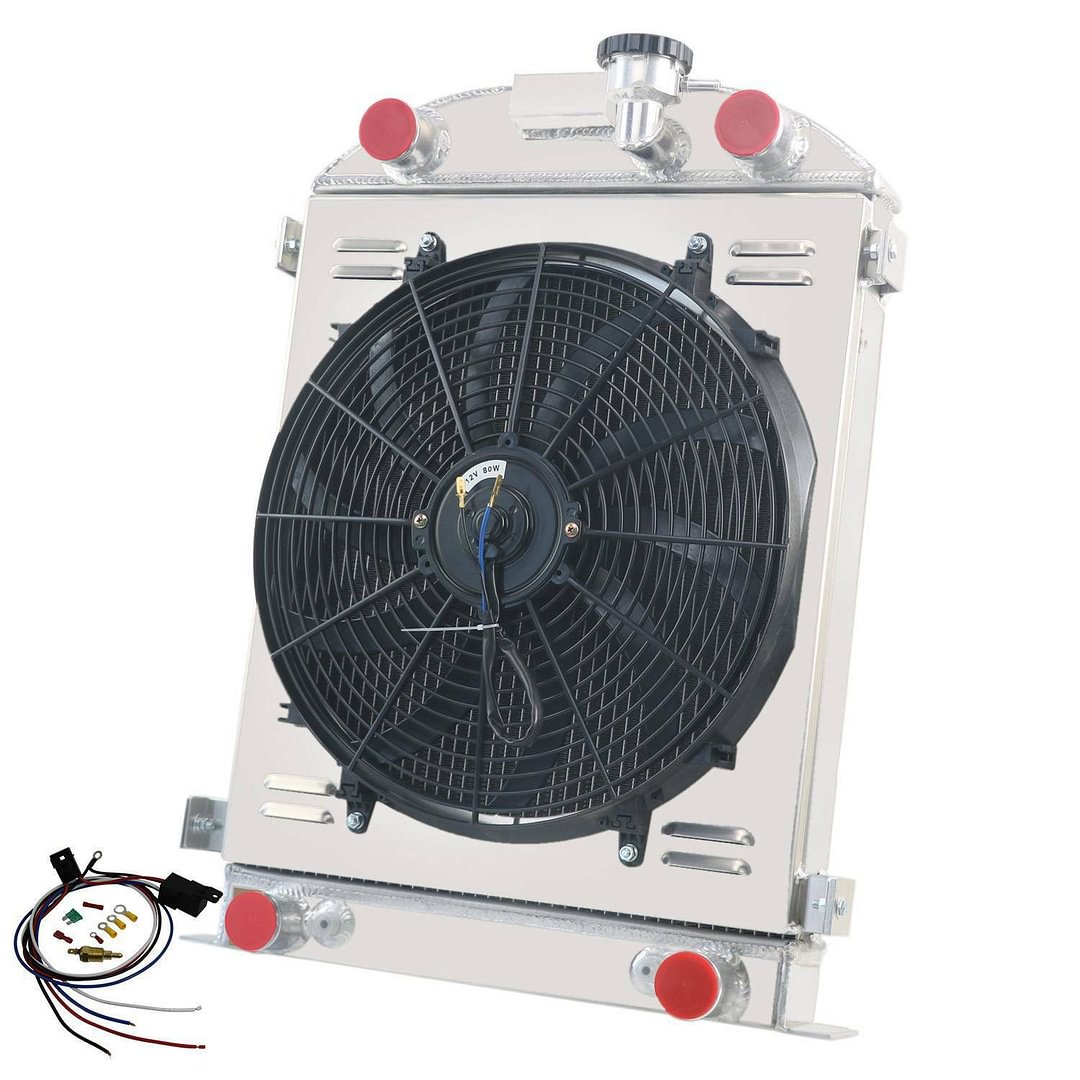

Alloyworks 4 Row Radiator Shroud Fan For 1932 Ford High Boy Model 3.3L FlatHead Engine

Alloyworks 4 Row Radiator Shroud Fan For 1932 Ford High Boy Model 3.3L FlatHead Engine

PT3291DZFSXJ120W
$249.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Click here to view all compatible vehicles

This Radiator Size:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Tank Material: T-5057 Aircraft Grade Aluminum
Core Size: 20" H x 17 1/4" W x 2.45" ( 438mmx509mmX62mm)
Overall Size: 25 1/2" H x 20" Wx 6.42" (505mmx648mmx163mm)
top tank inlets : 1-3/4" Inch Dual - Driver & Pass
bottom tank outlets : 1-5/8" Inch Dual - Driver & Pass
CNC Precision Machined Radiator Cap
OEM Style Brass Petcock Drain.
This radiator is easy to buy wrong, please check the size before purchase!

Description
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full T-5057 Aluminum Construction
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Shroud+Fans

The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

Thermostat Kit:

The thermostat kit is a universal fit, which makes it the perfect choice for any automotive vehicle and electric fan. This thermostat activates by grounding electric fans at preset temperature. It features a 185 degree Fahrenheit turn-on temperature and a 165 degree Fahrenheit turn-off temperature. The 3/8" NPT thread-in brass probe adapter are included.

RELAY KIT INSTRUCTIONS

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.
