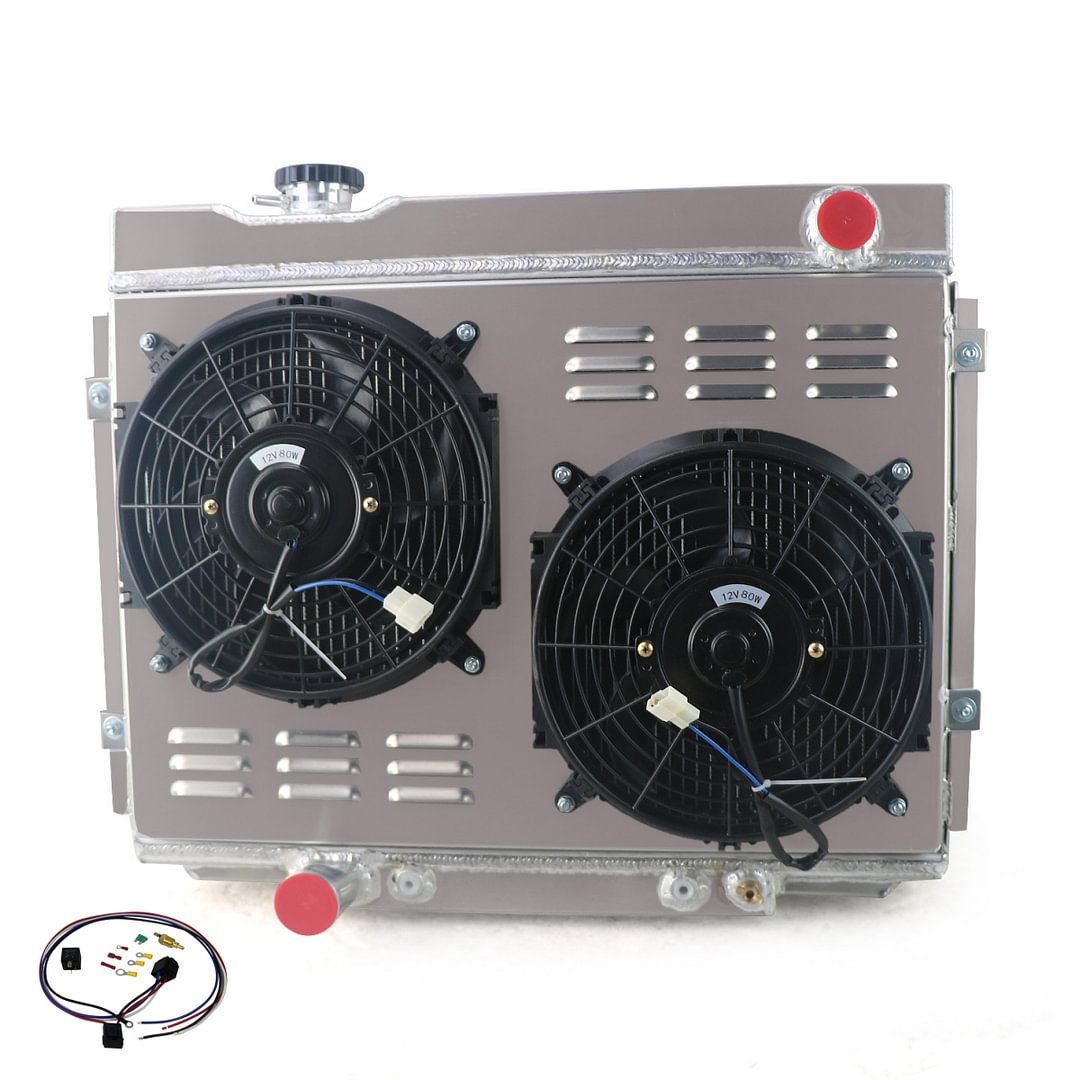

4 Row Radiator Shroud Fan Fits 1967-1970 Ford Mustang Ranchero Fairlane 6.4 7.0L
4 Row Radiator Shroud Fan Fits 1967-1970 Ford Mustang Ranchero Fairlane 6.4 7.0L
Click here to view all compatible vehicles
ONLY For 16" HIGH CORE - 24" WIDE CORE. PLEASE CHECK SPECIFICATIONS TO VERIFY FIT
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Dimensions 16" x 24 1/4"
Overall Dimensions 21 3/4" HIGH X 25 3/8" WIDE
Tank Size: 3 1/4 X 24 3/8 - Both
Inlet Hose Connection: 1 1/2" Passenger Side
Outlet Hose Connection: 1 3/4 "Driver Side
OEM Style Brass Petcock Drain
FILLER NECK OFFSET TO DRIVER SIDE
Please Check the Size Before You Buy!
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1.Made of AA5052 aircraft aluminum,stronger than other popular alloys and has increased corrosion resistance.
2.Brazed core technology to guarantee optimum performance and dependability.
3. AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable.
4.Higher density core: cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators.
5.14-16 cooling fins per inch, giving you approximately 1500 more cooling fins than other aluminum radiators, throws off much more heat.
AA5052 Aluminum Shroud+Fan：
Our custom-made AA5052 aluminum fan shrouds are manufactured to fit our ALLOYWORKS and ASI PERFORMANCE radiators. These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1. Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect.
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
Thermostat Relay Kit:
The thermostat kit is a universal fit, which makes it the perfect choice for any automotive vehicle and electric fan. This thermostat activates by grounding electric fans at preset temperature. It features a 185 degree Fahrenheit turn-on temperature and a 165 degree Fahrenheit turn-off temperature. The 3/8" NPT thread-in brass probe adapter are included.
RELAY KIT INSTRUCTIONS
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
