4 Row Radiator Shroud 16"Fan For 2007-2014 Toyota Tundra Sequoia 4.6L 5.7L V8
4 Row Radiator Shroud 16"Fan For 2007-2014 Toyota Tundra Sequoia 4.6L 5.7L V8

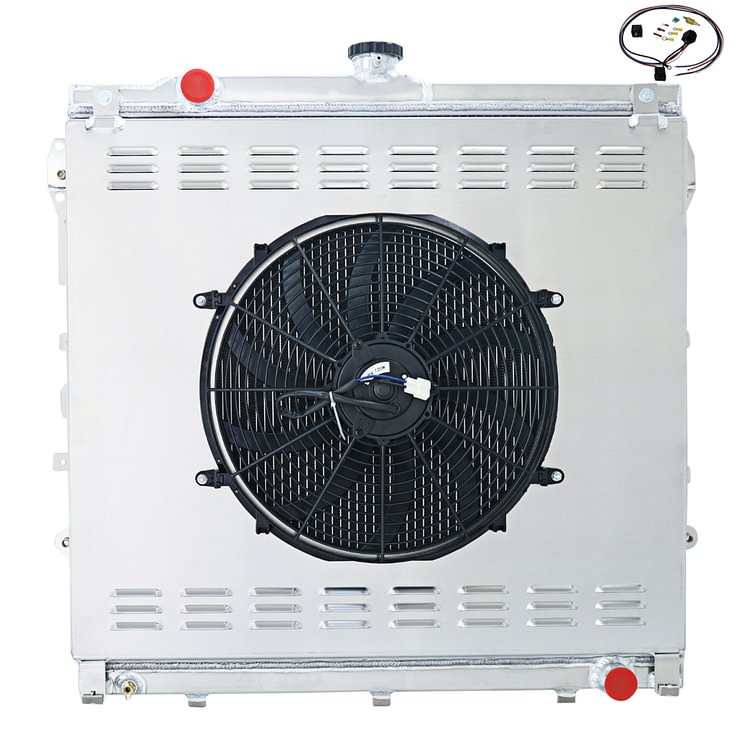

This Listing Is Including:
1 X 4-Row AA5052 Aluminum Radiator
1 x CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16"120W Fan (Includes mounting kits)
1 X Thermostat Relay Kits
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Overall height: 32"
Overall width: 31.4"
Inlet size：1 3/8in On Driver Side
Outlet size：1 3/8in On Passenger Side
Includes CNC machined filler neck and cap
Radiator Drain Plug: OEM Style Brass Petcock Drain.
This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!
Diameter : 16'' (Blade to Blade)
Number of Blades: 10 pcs
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2,250 rpm
Max. Amp Draw: 15amp
Voltage: DC 12V
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
1.Our Radiator is made of AA5052 aircraft aluminum,5052 Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water).
2.Higher density core: cooling rows are spaced 3/8" apart,giving you 25% more rows within the core than other aluminum radiators sold on eBay.
3.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators. AA5052 aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high efficiency core can have tubes on 3/8" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had.
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG. Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full A5052 Aluminum Construction.aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.
