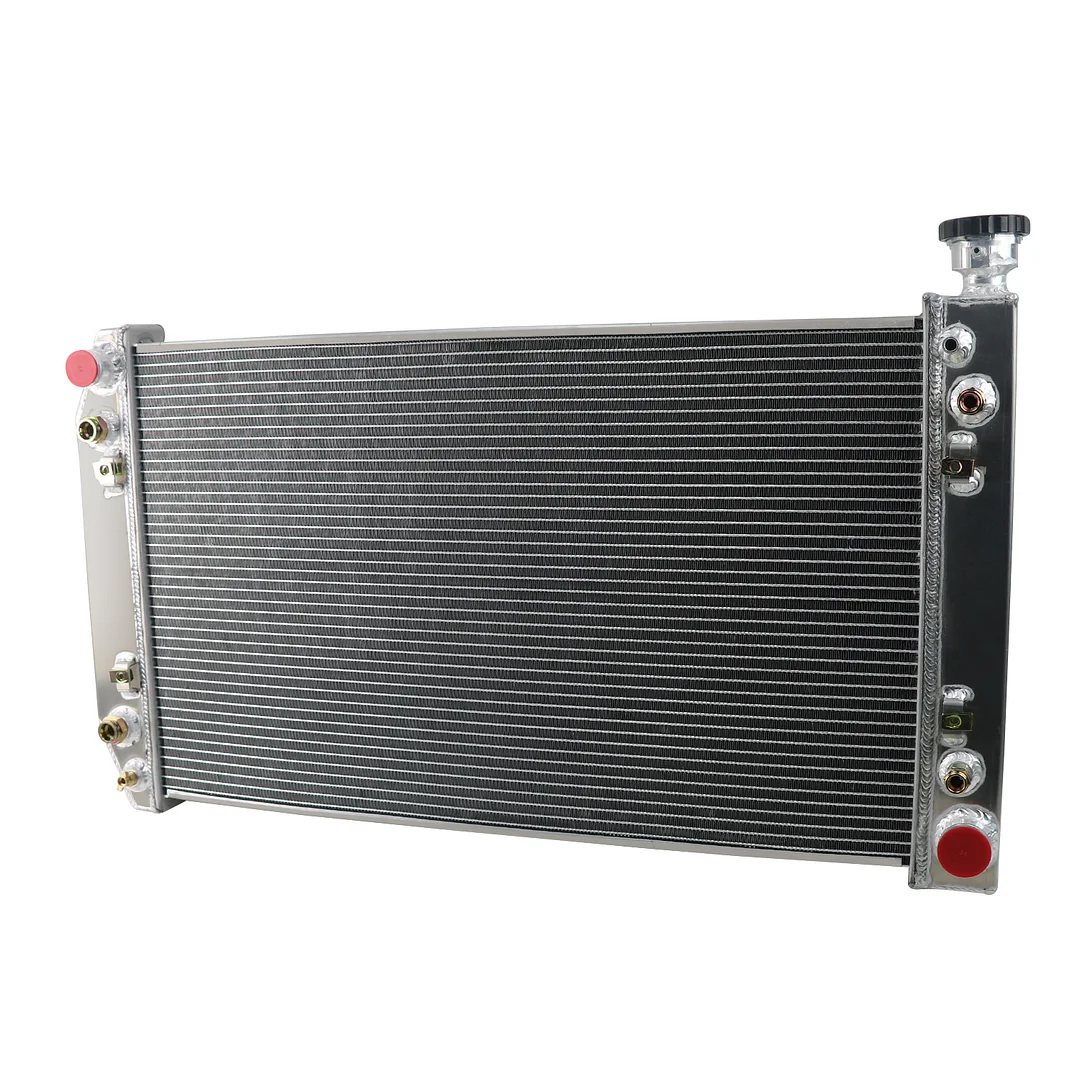

Alloyworks Aluminum 4 Rows Radiator For 1988-1997 Chevy GMC Truck C/K 1500 2500 3500 P30 5.0L 5.7L 20-1/4’’ Height x 33-7/8’’ Width

Alloyworks Aluminum 4 Rows Radiator For 1988-1997 Chevy GMC Truck C/K 1500 2500 3500 P30 5.0L 5.7L 20-1/4’’ Height x 33-7/8’’ Width

MC622DZ-BN
$239.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Although the compatibility of the radiator and other radiators is the same, the size of the radiator is different due to the different design. Please confirm the size of the original radiator before purchasing the Order.

Fits:
1994 Chevy Blazer 5.7L 350Cu. In. V8
1994 Chevy/GMC C1500/C2500 4.3L 262Cu. In. V6
1988-1999 Chevy/GMC C1500/K1500 5.0L 305Cu. In. V8
1988-1999 Chevy/GMC C1500/K1500 5.7L 350Cu. In. V8
1988-1998 Chevy/GMC C2500/K2500 5.0L 305Cu. In. V8
1988-1998 Chevy/GMC C2500/K2500 5.7L 350Cu. In. V8
1988-1994 Chevy/GMC C3500/K3500 5.7L 350Cu. In. V8
1991 Chevy K1500 6.2L 379Cu. In. V8
1991 , 1994 Chevy K1500 4.3L 262Cu. In. V6
1993 ,1994 Chevy K2500 4.3L 262Cu. In. V6
1992-1994 Chevy C/K 1500 2500 Suburban 5.7L 350Cu. In. V8
1990 Chevy R/V 1500 2500 Suburban 5.7L 350Cu. In. V8
1989-1991 Chevy R/V 3500 5.7L 350Cu. In. V8
1992-1994 GMC K1500/K2500 Suburban 5.7L 350Cu. In. V8

Please Check the Size Before You Buy!


Specifications
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Material: All Aluminium
Core and Tank: All Aluminu
Radiator Cap: Included
Core Height/Width: 17 1/4'' H x 28 1/4'' W
Overall Height/Width: 20 1/4'' H x 33 7/8'' W
Inlet Diameter: In - 1 5/16
Outlet Diameter: Out - 1 9/16
Upper Hose Fitting: Driver
Lower Hose Fitting: Pass
Transmission Oil Cooler Fitting Type: 1/2-20 Straight Thread, Inverted Flare
Engine Oil Cooler: M20 x 1.5 3/4-18 Adapter


Description
We All Products With Made By OEM Approved & ISO Certified Manufacturers With Materials That Meets Or Exceeds Strict OEM Requirements
100% Brand New Item AA5052 Aircraft Grade Aluminum Radiator The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG
This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Aluminum plate is pressed, high quality and durable.



THE PROBLEM WE WILL HELP YOU SOLVED OUT
