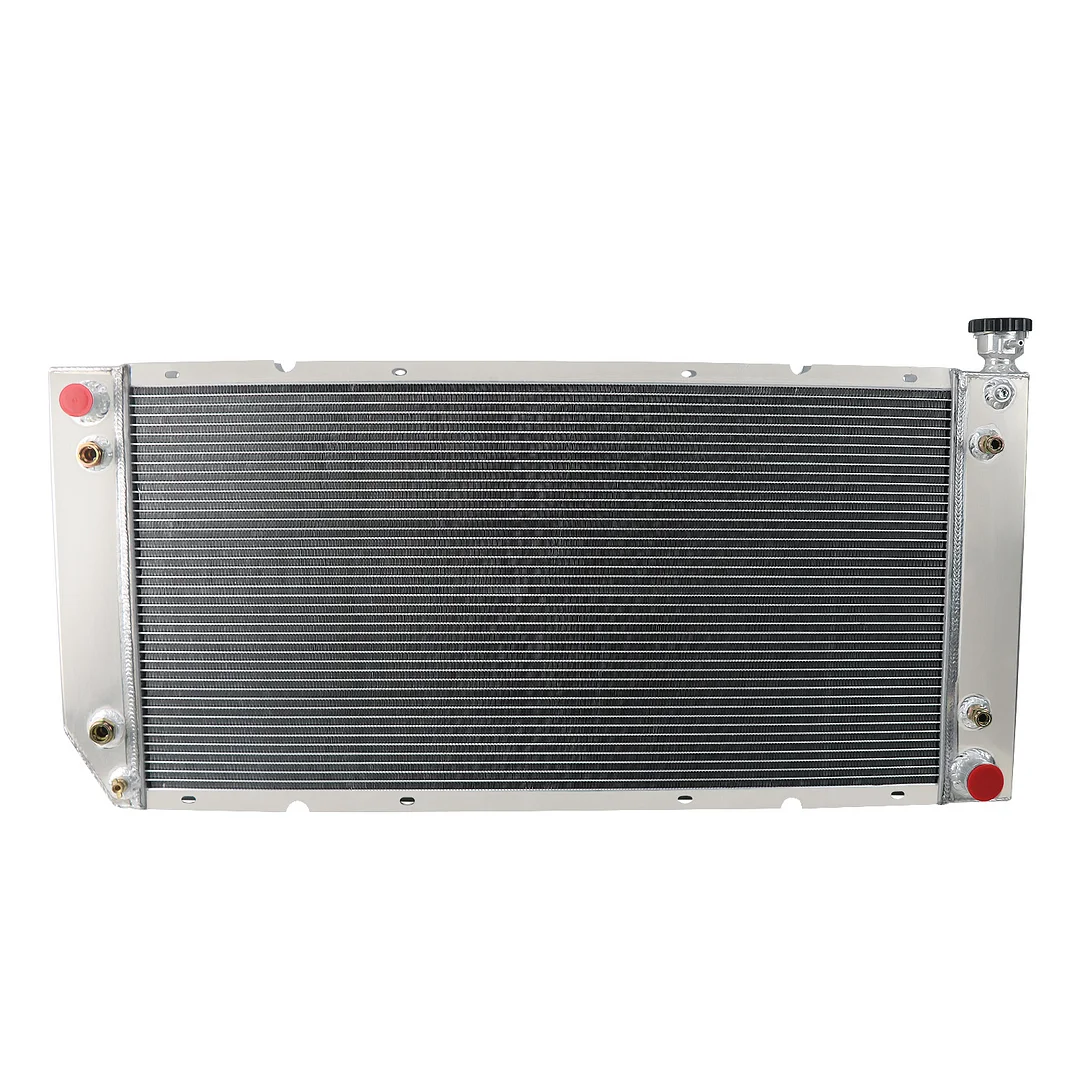

Alloyworks 4 Row Radiator For 88-00 Chevy C/K Series C1500 C2500 C3500 Truck Silverado 40 5/8" Wide x 20 3/8" High

Alloyworks 4 Row Radiator For 88-00 Chevy C/K Series C1500 C2500 C3500 Truck Silverado 40 5/8" Wide x 20 3/8" High

RAD-CHEV-AL-41
$279.00
$399.00
Save 30%
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order.
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing

PLS NOTE:

This product is easy to buy wrong, please pay attention to check the size carefully to make sure it will meet your needs.Only fit 34'' wide core,17'' high core.

Radiator Size

High Performance Racing Spec.

4-Row of tubes Core Racing Design

Core Material: All Aluminum

Tank Material: AA5052 Aircraft Grade Aluminum

Surface Finish: Aircraft Grade Raw Aluminum

Core Dimensions: 34" Wide X 17 1/4" High x 2.44'' Thick

Overall Dimensions: 40-5/8 " Wide X 20-3/8" High

Tank Dimensions: 3 1/4" X 18 1/2"

Inlet Hose Connection:1 5/16" Driver Side

Outlet Hose Connection:1 9/16" Passenger Side

Transmission Cooler: 1/2-20UNF(Z)

Engine Oil Cooler: M20*1.5

Includes CNC machined filler neck and cap

OEM Style Brass Petcock Drain.

Please Check the Size Before You Buy!

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

Radiator Features

Our vehicle radiator is crafted from premium AA5052 aircraft aluminum, superior to the commonly used T-3303 series. While T-3303 is cheaper and more readily available, it suffers from poor polishing, softness, easy scratching, corrosion, and inefficient heat dissipation. Prolonged high-pressure and high-temperature use can lead to leaks. Choose our aluminum radiators for better durability and performance.

ISO/IATF16949 Certified — Full Aluminum Radiator for Superior Cooling and Perfect Fit

1. Made from Aircraft AA5052 grade aluminum for a prolonged lifespan and with a raw aluminum finish.

2. Brazed core technology to guarantee optimum performance and dependability.

3. All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable.

4. Billet Aluminum CNC machined fill neck is rugged and durable.

5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.

6. The OEM-style brass petcock drain is much better than other plastic ones.


7. Carefully crafted to exceptional OE standards for a precise fit.

This AA5052 aluminum radiator is engineered for maximum cooling efficiency, significantly outperforming stock Chevy radiators, including the 2000 Chevy Silverado radiator. Its lightweight, high-heat-transfer design features a tube and fin setup that increases surface area for superior heat dissipation. Offering 30%-45% greater efficiency than stock radiators, it also holds more coolant, enhancing cooling performance and temperature stability, especially in racing conditions.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Fan Specification
