Fits:
1978-1979 Ford Bronco 6.6L 400Cu. In. V8
1966-1974 Ford F-100/F-250/F-350 3.9L 240Cu. In. l6
1966-1972 Ford F-100 4.7L 289Cu. In. V8
1966-1979 Ford F-100/F-250/F-350 4.9L 300Cu. In. l6
1969-1979 Ford F-100 5.0L 302Cu. In. V8
1966-1967 Ford F-100/F-250/F-350 5.8L 352Cu. In. V8
1966-1976 Ford F-100/F-250/F-350 5.9L 360Cu. In. V8
1968-1976 Ford F-100/F-250/F-350 6.4L 390Cu. In. V8
1977-1979 Ford F-100/F-250/F-350 6.6L 400Cu. In. V8
1973 1974 1979 Ford F-100 7.5L 460Cu. In. V8
1972-1978 Ford F-250/F-350 5.0L 302Cu. In. V8
1974-1979 Ford F-250/F-350 7.5L 460Cu. In. V8
1975-1979 Ford F-150 4.9L 300Cu. In. l6 / 5.0L 302Cu. In. V8
1975-1976 Ford F-150 5.9L 360Cu. In. V8 / 6.4L 390Cu. In. V8
1977-1979 Ford F-150 6.6L 400Cu. In. V8
1975-1979 Ford F-150 7.5L 460Cu. In. V8
Only Fits Chevy V8 Engine Only!
This Radiator Configuration:
Meteral: Full Aluminium
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Size: 19 1/4" X 26 1/4" X 2 5/8"
Over Size: 26 1/2" HIGH X 29 1/2" WIDE
Inlet Hose Connection: 1 1/2 Driver Side
Outlet Hose Connection: 1 3/4" Passenger Side
Oil Cooler included
Oil Cooler: 12"
Mounting Bracket Bold Hole Specs
28 1/2" Wide Ccheck To Ccheck
Fits: Automatic or Manual Transmissions
This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!
Description：

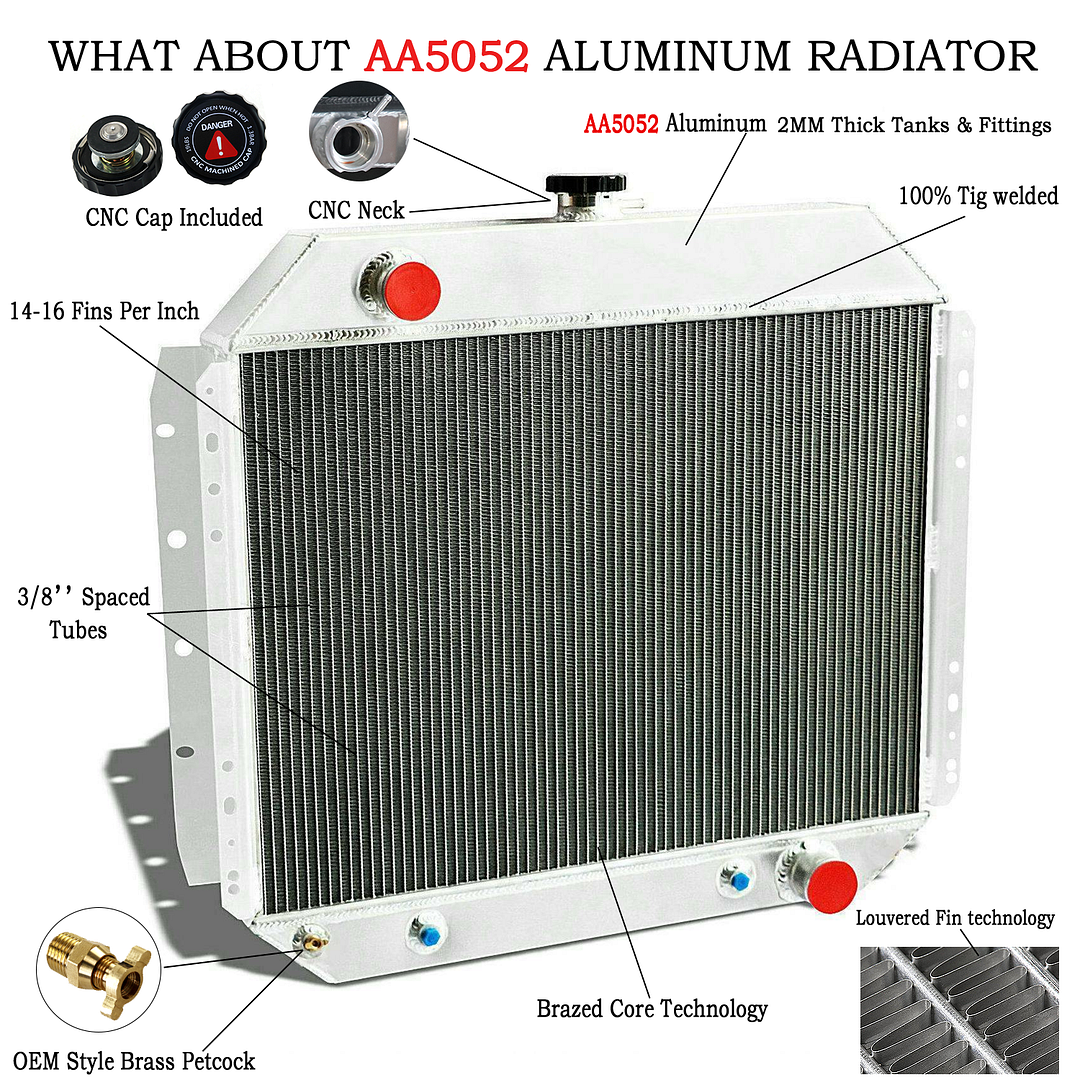

The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full T-6061 Aluminum Construction
aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This A&W High Quality T-6061 Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Aluminum plate is pressed, high quality and durable.
THE PROBLEM WE WILL HELP YOU SOLVED OUT
