4 Row Radiator Fan Shroud For Toyota Land Cruiser FJ40 FJ45 3.9L 4.2L 1958-1984
4 Row Radiator Fan Shroud For Toyota Land Cruiser FJ40 FJ45 3.9L 4.2L 1958-1984

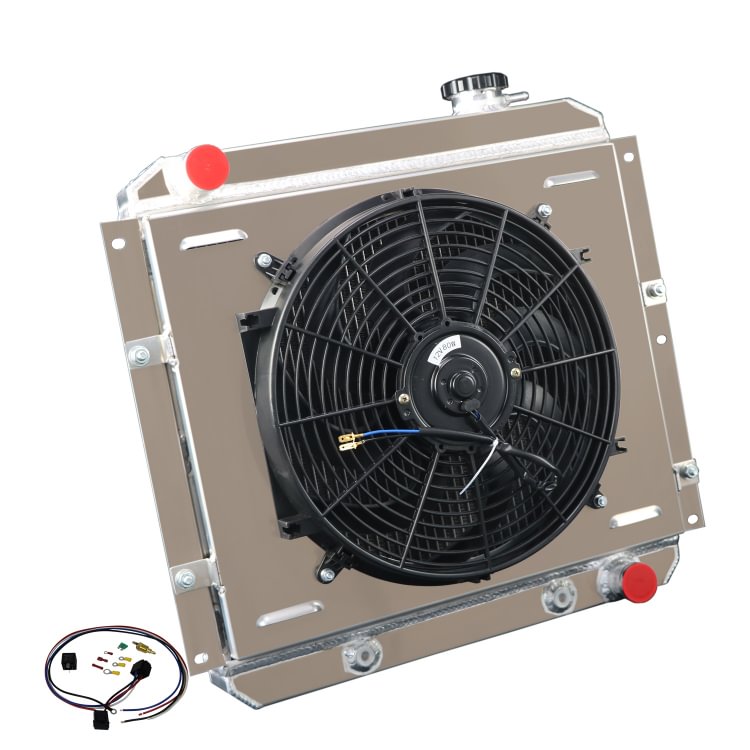

One Aluminum Shroud and one 12" Stay Cool Fans(Includes fans mounting kits)+Thermostat Relay Kit
For Toyota Land Cruiser Pickup 3.9L 4.2L L6 1958-1984
This radiator is designed for either a 3.9L or 4.2L 6 Cyl engine.
Core Material: All Aluminum
Tank Material: T-5057 Aircraft Grade Aluminum
Surface Finish: Raw Aluminum Unpainted
Includes CNC machined filler neck and cap
Including OEM Style Brass Petcock Drain.
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Down Flow Or Cross Flow Type: Cross Flow
Mounting Type: Bracket
Overall Dimensions: (In) Height: 22 X Width: 22 1/8
Core Dimensions: (In) Height: 16 1/2 X Width: 19 1/4
Inlet Diameter: 1 1/2in Driver Side
Outlet Diameter: 1 1/2in Passenger Side
Transmission Oil Cooler Fitting Type: 1/2-20 Straight Thread,Inverted FlareInternal
Transmission Oil Cooler: Yes
Please Check the Size Before You Buy!
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 80 Wattage
Thickness (in): 2.500"
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 12.70 amps
Description:100% Brand New Item
The Radiator are 100% welded seams by TIG
We All Products With Made By OEM Approved & ISO Certified Manufacturers With Materials That Meets Or Exceeds Strict OEM Requirements
T-5057 Aircraft Grade Aluminum Radiator The core of the radiator is welded in vacuum brazing furnace, no epoxy.
This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
This Aluminum Radiator is at least 35%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal
working conditions of the engine.
Thermostat Relay Kit
Universal fit for any automotive application.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet hose or manifold.
