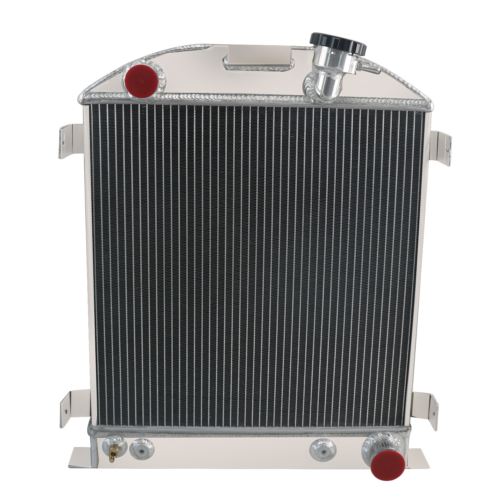

4 Row Aluminum Radiator For 1930 1931 Ford Model A 3.3L Chevy V8 Configuration

MC1009DZ-BN

$198.01 20 % $247.51
51 sold
Qty
Product description
Product description

Application:
For 1932 Ford Chopped/Hi-Boy/Grill Shells Swap Chevy V8 Engine
For 1930-1931 Ford Model A Chevy V8 Engines

Click here to view all compatible vehicles


Specifications:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Material: All Aluminum
Down Flow Or Cross Flow Type: Down Flow
Mounting Type: OEM
Overall Dimensions Height: 22 3/4 X Width: 19 1/8
Core Dimensions Height: 17 1/2 X Width: 17 1/2
Inlet Diameter: 1 1/2"in Driver Side
Outlet Diameter: 1 3/4"in Passenger Side
Transmission Oil Cooler Fitting Type: 1/2-20 Straight Thread, Inverted Flare
Internal Transmission Oil Cooler: Yes
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!


Product Features:
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality T-5057 Aircraft Grade Aluminum Construction
Full Aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring Aircraft Grade Aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This High Quality Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
