Package Include:

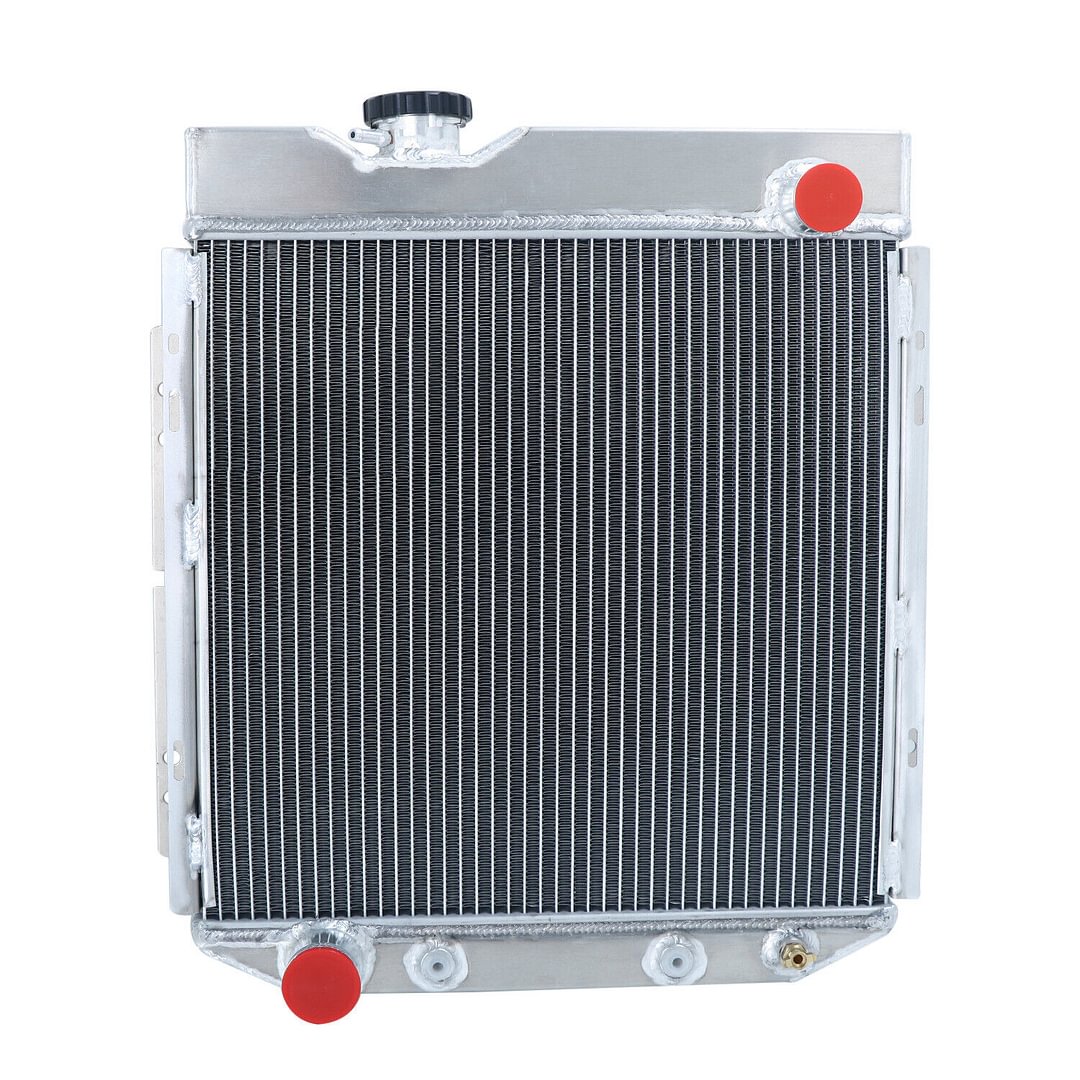

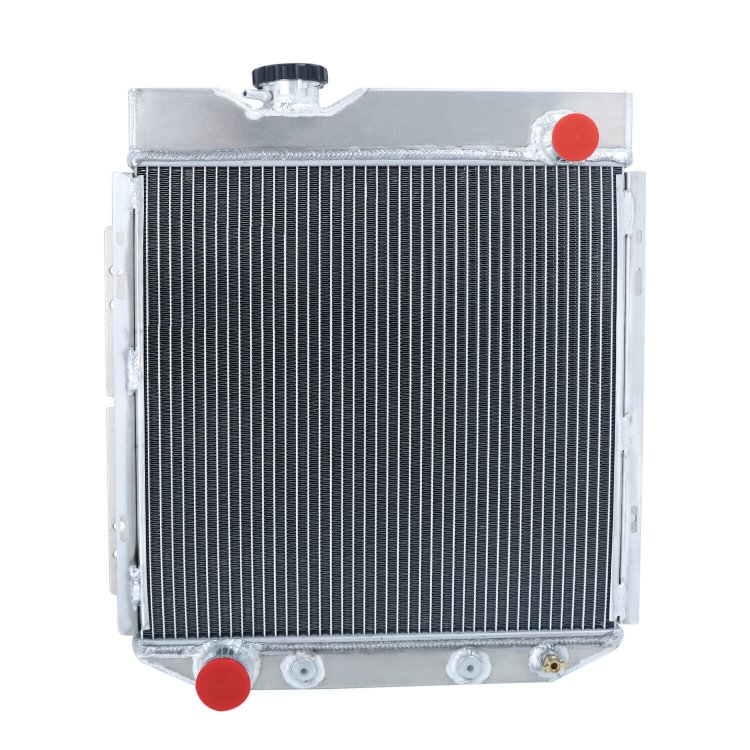

1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
Radiator Size:
Brand:ALLOYWORKS
Condition:New
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Petock Drain:OEM style brass petcock drain
Core size: 16 4/9''H X 16 6/7''W
Overall Dimensions: 19 2/3''H X 21 4/9''W
Upper INLET: 1-1/2" located on the PASSENGER side.
Lower OUTLET: 1-3/4" located on DRIVER side.
Mounting System: Bracket
Transmission Cooler: φ26*150*1/8NPT(T)
Vehicle Fitment:
1965-1966 FORD MUSTANG 302-351-390-428-429 ENGINES
1960-1965 FORD FALCON 302-351-390-428-429 ENGINES
1960-1965 FORD RANCHERO 302-351-390-428-429 ENGINES
1961-1965 MERCURY COMET 302-351-390-428-429 ENGINES
1961-1965 FORD Econoline Comet 302-351-390-428-429 ENGINES
Will Fit Automatic Or Manual Transmission
Our Radiator is made of AA5052 aircraft aluminum. Its different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series.
More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.
AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold workability and strength. The main alloying element of AA5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.
