Application:

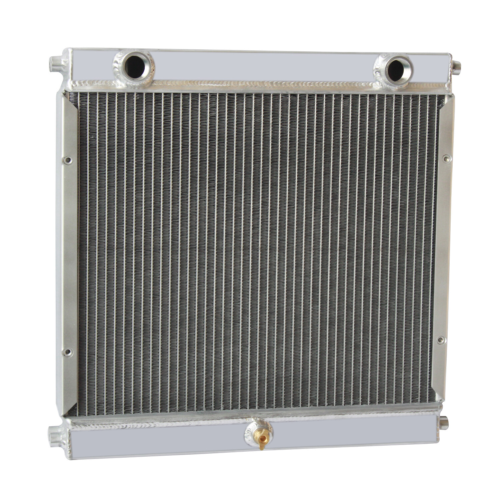

Fits Double Pass Dragster/Roadster Style Racing Radiator
Specifications:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: T-5057 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Overall Height (in.)17 x Width (in.)16.25
Core Width (in.)15.5 x Height (in.)13.5
Radiator Style Scirocco
Transmission Cooler No
Outlet Size (in.)-12 AN
Overall Thickness (in.)3
Core Thickness (in.)2
Inlet Size (in.)-12 AN
Inlet Location Upper driver side
Outlet Location Upper passenger side
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!
Description:
Made By OEM Approved & ISO Certified Manufacturers With Materials That Meets Or Exceeds Strict OEM Requirements
100% Brand New Item T-5057 Aircraft Grade Aluminum Radiator The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG
This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
