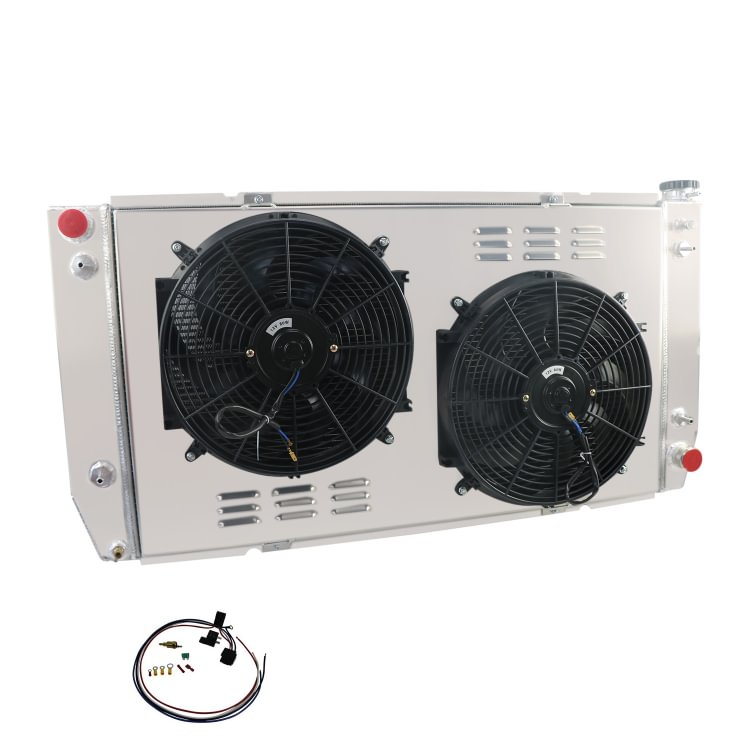

4 Row Aluminu Radiator For 1988-2000 Chevy/GMC C2500 C3500 K2500 K3500 7.4L 19"H
4 Row Aluminu Radiator For 1988-2000 Chevy/GMC C2500 C3500 K2500 K3500 7.4L 19"H
For 1994-2000 Chevy GMC C/K 1500 2500 3500 Pickup Suburban 7.4L V8 GAS
This radiator is designed for a 7.4L(454ci) V8 engine.
Only For Fits 34" Wide Core-19" High Core(Fin Area Only)
Make Sure Your Radiator Has 19" High Core-20 3/4" High Overall
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Raw Aluminum Unpainted
Includes CNC machined filler neck and cap
Including OEM Style Brass Petcock Drain.
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Down Flow Or Cross Flow Type: Cross Flow
Core Dimensions: Heigh 34" x Width 19-1/4"
Overall Dimensions: Heigh 40 5/8 x Width 21 5/8
Hose Locations:IN: Driver- OUT: Passenger
Hoes Fittings:IN: 1 5/16 - OUT: 1 9/16
Trans Cooler: M20*1.5 5/8-18 Adapter
Mounting Type: Saddle Mount
Please Check the Size Before You Buy!
100% Brand New Item
The Radiator are 100% welded seams by TIG
We All Products With Made By OEM Approved & ISO Certified Manufacturers With Materials That Meets Or Exceeds Strict OEM Requirements
AA5052 Aircraft Grade Aluminum Radiator The core of the radiator is welded in vacuum brazing furnace, no epoxy.
This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
This Aluminum Radiator is at least 35%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Thermostat Relay Kit
Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe included.Probe typically threads into radiator, water outlet or manifold.
