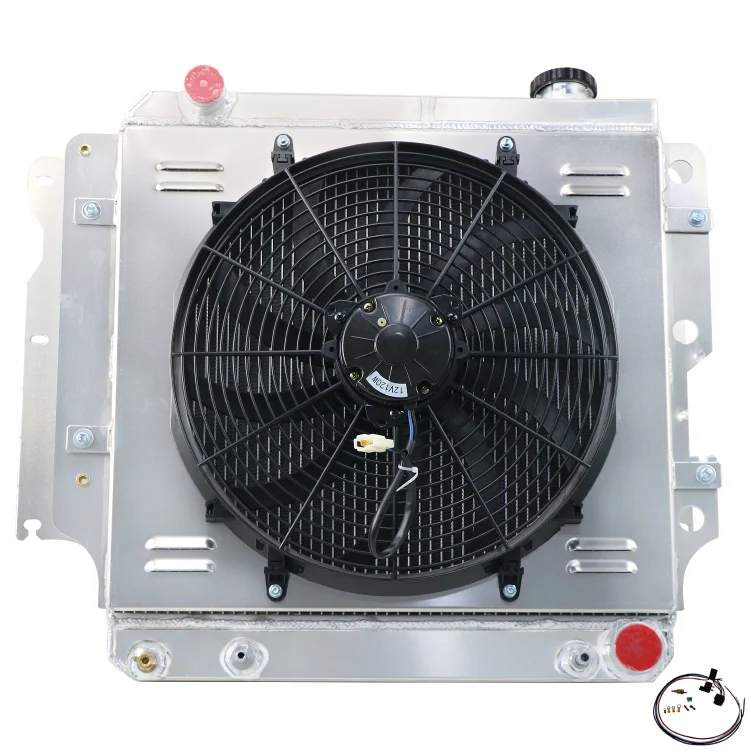

Alloyworks 3 Row Radiator with Shroud Fan Relay For 87-06 Jeep TJ YJ Wrangler Chevy V8 Conversion-120W

Alloyworks 3 Row Radiator with Shroud Fan Relay For 87-06 Jeep TJ YJ Wrangler Chevy V8 Conversion-120W

RAD-JEEP-AL-95
$259.00
Quantity
Please check if this fits your vehicle before purchasing
Visible only when the product is out of stock. Currently in preview mode.
Notify Me
(function(){ function $(selector){ return document.querySelector(selector); } const EMAIL_REG = /^(([^<>()[\]\\.,;:\s@"]+(\.[^<>()[\]\\.,;:\s@"]+)*)|(".+"))@((\[[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\])|(([a-zA-Z\-0-9]+\.)+[a-zA-Z]{2,}))$/; // 获取dom数据 const doms = { button: $('#app-arrival-reminder-button'), previewBox: $('#app-arrival-reminder-preview-box'), toast: $('#app-arrival-reminder-toast'), lightbox: $('#arrival-lightbox'), datalist: $('#app-arrival-reminder-email-list'), imgRender: $('#app-arrival-reminder-product-image-render'), productVariant: $('#app-arrival-reminder-product-variant'), emailInput: $('#app-arrival-reminder-form .reminder-email-input'), emailWarn: $('#app-arrival-reminder-form .reminder-email-warn-wrap'), emailWarnText: $('#app-arrival-reminder-form .reminder-email-warn-text'), submitButton: $('#app-arrival-reminder-submit-button') }; // 选中的sku数据 let selectedVariant = {"id":"b8c21fcd-49a3-4771-a77d-4feb311bd6de","product_id":"c981671a-6735-469f-ac00-c9e666eef63f","title":"","weight_unit":"kg","inventory_quantity":0,"sku":"WH8101DZFSXJ120W-BN","barcode":"","position":1,"option1":"","option2":"","option3":"","note":"","image":null,"wholesale_price":[{"price":259,"min_quantity":1}],"weight":"0","compare_at_price":"0","price":"259","retail_price":"0","available":false,"url":"\/products\/3row-radiatorshroudfanrelay-for-87-06-jeep-tj-yj-wrangler-chevy-v8-conversion-120w?variant=b8c21fcd-49a3-4771-a77d-4feb311bd6de","available_quantity":0,"options":[],"off_ratio":0,"flashsale_info":[],"sales":28}; // 上报 function reportData(params){ // 编辑/预览不上报 if(false){ return; } window.sa.track(params.event_name, { business_type: 'product_plugin', function_name: 'Back_in_Stock', plugin_name: "Back_in_Stock", template_name: "product", template_type: 1, module: "apps", module_type: "Back_in_Stock", event_info: JSON.stringify({ action_type: 'Back_in_Stock' }), ...params }); } // 按钮曝光上报 function buttonPVReport(){ reportData({ event_name: 'function_expose', event_type: 'expose', event_desc: '无货商品时触发' }); } // 弹窗曝光上报 function popupPVReport(){ reportData({ event_name: 'function_expose', event_type: 'popup_expose', event_desc: '弹窗曝光时触发' }); } // submit按钮点击上报 function submitClickReport(){ reportData({ event_name: 'function_click', event_type: 'popup_click', event_desc: '填入邮箱之后，点击notify 触发', event_info: JSON.stringify({ action_type: 'email_click' }), }); } // -----------------------初始化----------------- init(); // 初始化操作 function init(){ // 为确保window有后面添加的值例如window.sa 需要在DOMContentLoaded回调事件中执行逻辑 document.addEventListener("DOMContentLoaded", function() { // 设置邮件联想 setDataList(); if(!false){ // 初始无货 按钮pv事件埋点上报 buttonPVReport(); } }); } // 设置邮件联想 function setDataList(){ const customer_email = window.C_SETTINGS.customer.customer_email; if(customer_email){ const options = document.createElement('option'); options.setAttribute('value', customer_email); doms.datalist.appendChild(options); } } // -----------------------事件操作---------------- // 监听sku变化事件 document.addEventListener('dj.variantChange', variantChange); // 监听提醒按钮点击事件 doms.button.addEventListener('click', reminderButtonClick); // 监听提交按钮点击事件 doms.submitButton.addEventListener('click', submit); // 监听input元素的keydown事件 doms.emailInput.addEventListener('keydown', function(e) { // 判断是否按下了Enter键 if (e.keyCode === 13 || e.key === 'Enter') { submit(); } }); // 显示正常按钮 function showReminderButton(){ doms.button.classList.remove('app-arrival-hidden'); doms.previewBox.classList.add('app-arrival-preview-hidden'); buttonPVReport(); } // 展示预览按钮 function showPreviewButton(){ doms.button.classList.remove('app-arrival-hidden'); doms.previewBox.classList.remove('app-arrival-preview-hidden'); } // 隐藏按钮 function hiddenReminderButton(){ doms.button.classList.add('app-arrival-hidden'); doms.previewBox.classList.add('app-arrival-preview-hidden'); } // 提交数据, 请求接口 function submit(){ // 获取邮箱数据 const email = doms.emailInput.value.trim(); if(!email){ doms.emailWarnText.innerText = "Please enter your email address"; doms.emailWarn.classList.remove('app-arrival-hidden'); return; } if(!EMAIL_REG.test(email)){ doms.emailWarnText.innerText = "Please enter a valid email address"; doms.emailWarn.classList.remove('app-arrival-hidden'); return; } // 邮箱校验成功 doms.emailWarn.classList.add('app-arrival-hidden'); // 预览时不调接口 if(false){ SPZ.whenApiDefined(doms.toast).then(apis => { apis.showToast("Currently in preview mode, subscription is for testing only", 3000); }); return; } // 加入loading样式 doms.submitButton.classList.add('reminder-submit-button-loading'); // 提交数据请求接口 let quantity = 1; const quantityDom = $('#app-arrival-reminder-quantity-render ljs-quantity'); if(quantityDom){ quantity = Number(quantityDom.getAttribute('value')) || 1; } const params = { customer_email: email, product_num: quantity, product_id: selectedVariant.product_id, product_variant_id: selectedVariant.id }; fetch(`${window.C_SETTINGS.routes.root}/api/front/gobbler/v1/subscribe`, { method: 'POST', body: JSON.stringify(params), headers: { 'Content-Type': 'application/json' } }).then((res)=>res.json()).then((res)=>{ /* 后端错误提示 */ if(res.errors && res.errors.length){ SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast(res.errors[0], 3000); }); return; } /* code * 0 SUCCESS 订阅成功 * 1 PRODUCT_OFFLINE 商品下架 * 2 INVENTORY_NOT_EMPTY 商品库存不为空 * 3 REPEAT_SUBSCRIBE 重复订阅 * 4 EMAIL_EMPTY 邮件为空 * 5 EMAIL_WRONG_FORMAT 邮件格式错误 * 99999 INVALID_PARAMS 其他参数错误 */ const codeMap = { SUCCESS: ()=>{ SPZ.whenApiDefined(doms.lightbox).then(apis=>{ apis.close(); }); SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast("Thank you for your subscription! We will notify you as soon as the product is back in stock!", 3000); }); }, INVENTORY_NOT_EMPTY: ()=>{ SPZ.whenApiDefined(doms.lightbox).then(apis=>{ apis.close(); }); SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast("Subscription failed. Product back in stock, please proceed to checkout.", 3000); }); setTimeout(()=>{ window.location.reload(); }, 3000); }, REPEAT_SUBSCRIBE: ()=>{ SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast("You've already subscribed to this product. We'll let you know as soon as it's back in stock. Feel free to explore our other products.", 3000); }); }, EMAIL_EMPTY: ()=>{ SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast("Please enter your email address", 3000); }); }, EMAIL_WRONG_FORMAT: ()=>{ SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast("Please enter a valid email address", 3000); }); } }; codeMap.PRODUCT_OFFLINE = codeMap.SUCCESS; codeMap[res.code] && codeMap[res.code](); }).finally(()=>{ doms.submitButton.classList.remove('reminder-submit-button-loading'); }); // submit点击上报 submitClickReport(); } // 重新渲染dialog function refreshRenderDialog(){ console.log('selectedVariant', selectedVariant); const images = selectedVariant.image || {"src":"\/\/img.staticdj.com\/5401b6c828d602159ee9d7b06ba161fd.jpg","path":"5401b6c828d602159ee9d7b06ba161fd.jpg","width":1500,"height":1500,"alt":"Alloyworks 3 Row Radiator with Shroud Fan Relay For 87-06 Jeep TJ YJ Wrangler Chevy V8 Conversion-120W","aspect_ratio":1}; const imagePosition = images.aspect_ratio > 1 ? 'left top' : 'center center'; // 重新渲染图片 SPZ.whenApiDefined(doms.imgRender).then((apis)=>{ apis.render({ images, imagePosition }); }); // 邮件错误提示置空 doms.emailWarn.classList.add('app-arrival-hidden'); // 重新渲染款式说明 if(selectedVariant.title){ doms.productVariant.innerText = selectedVariant.title.split('-').join('/'); } // 表单数据置空 doms.emailInput.value = ''; } // sku变化 单一款式不会触发 function variantChange(e){ const selected = e.detail.selected; // 子款式没变不执行操作 例如数量变化 if(selected.id === selectedVariant.id){ return; } selectedVariant = selected; console.log('selectedVariant', selectedVariant); // 数量变化 if(selected.available || selected.product_id === undefined){ // 有库存 编辑时展示预览按钮 否则隐藏按钮 if(false){ showPreviewButton(); }else { hiddenReminderButton(); } }else{ // 无库存 显示正常按钮 showReminderButton(); } } // 提醒按钮点击 function reminderButtonClick(){ refreshRenderDialog(); // 弹窗曝光上报 popupPVReport(); } document.body.appendChild(doms.toast); document.body.appendChild(doms.lightbox.parentElement); })();
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Please note :
This radiator Upper Hose locate Driver Side,Bottom Hose locate Passenger Side

Fits:
2003 2005 2006 Jeep TJ 2.4L 148Cu. In. l4
1997-2002 Jeep TJ 2.5L 150Cu. In. l4
1997-2006 Jeep TJ 4.0L 242Cu. In. l6
2003-2006 Jeep Wrangler 2.4L 148Cu. In. l4
1987-2002 Jeep Wrangler 2.5L 150Cu. In. l4
1991-2006 Jeep Wrangler 4.0L 242Cu. In. l6
1987-1990 Jeep Wrangler 4.2L 258Cu. In. l6
FOR Chevy V8 Conversion


Configuration:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Includes CNC machined filler neck and cap
Core Size: 18 1/9''H x 20''W x 1 3/4''Thick
Overall Size: 23''H x 25 6/7''W x 5 5/7''Thick
Bracket Mounted Across: 24 1/2
Bottom Hose Connection: 1 3/4 (locate passenger Side)
Upper Hose Connection: 1 1/2 (locate Driver Side)
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!

Fan Specification:
No load Speed (Revolutions Per Minute) : 3000 RPM
load Speed (Revolutions Per Minute) : 1860 RPM
Voltage: 12V
Watts: 120W


Description
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full AA5052 Aircraft Grade Raw Aluminum Construction
Full Raw Aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This High Quality Raw Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Shroud+Fans
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Thermostat Relay Kit
Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.

Aluminum plate is pressed, high quality and durable.



THE PROBLEM WE WILL HELP YOU SOLVED OUT
