Application:
Fits 1973-1974 Chevy Nova 5.0L - 5.7L
Fits 1973-1974 Buick Apollo 5.7L
Fits 1973-1974 Olds Omega 4.1L - 5.7L
Fits 1973-1974 Pontiac Ventura 5.7L
Fits 1973 Olds 98 5.7L

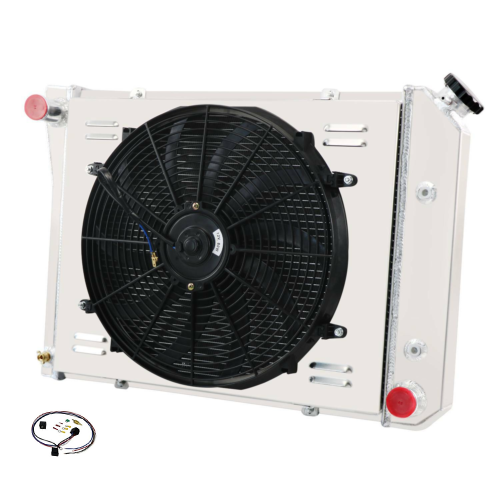

Package Include:
1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Specifications:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Core Dimensions: 17" H x 23" W x 2 1/4" Thick
Overall Dimensions: 18-3/4" H x 29" W
Upper Inlet 1-1/2" located on the Driver side
Lower Outlet 1-1/2" located on the Passenger side
Trans Cooler : Build-In
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!
Fan Specifications:
16" Fan
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 120 Wattage
Thickness (in): 2.95"
Number of Blades: 10 S-Type blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 10 amps
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.
Description:
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality AA5052 Aircraft Grade Aluminum Construction
Full Aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring Aircraft Grade Aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This High Quality Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Aluminum plate is pressed, high quality and durable.
