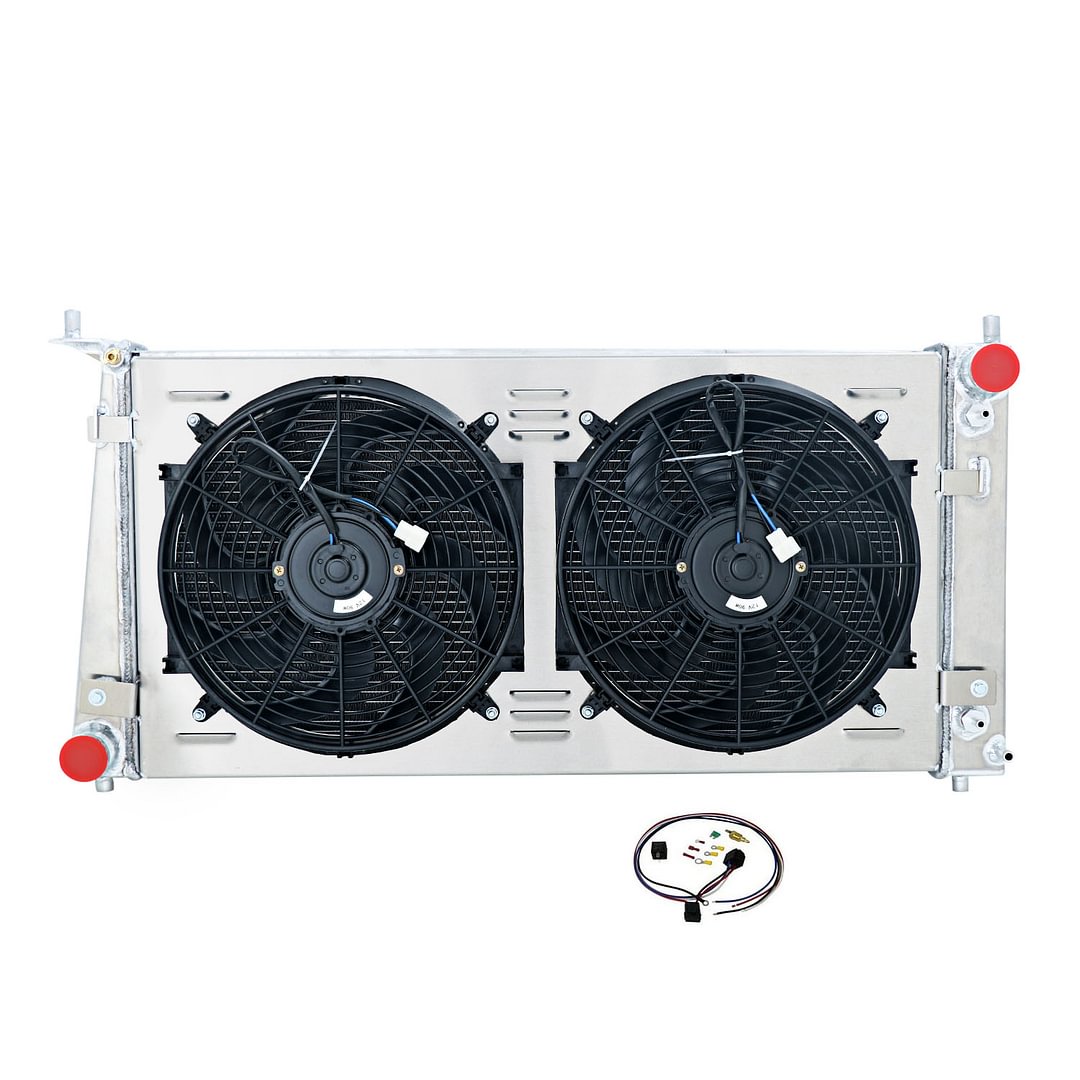

Alloyworks 3Row Radiator+Shroud Fan for 1999-2004 Ford F150 F250 F350 Expedition 4.2-5.4

Alloyworks 3Row Radiator+Shroud Fan for 1999-2004 Ford F150 F250 F350 Expedition 4.2-5.4

536-51264DFSXJ90W-BN
$309.00
Quantity
Please check if this fits your vehicle before purchasing
We're currently out of stock. Get notifed by email when this product available
please input correct email
Notify Me
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Fits:
1999-2003 Ford F-150 4.2L 256Cu. In. V6
1999-2004 Ford F-150 4.6L 281Cu. In. V8 / 5.4L 330Cu. In. V8
1999 Ford F-250 4.6L 281Cu. In. V8 / 5.4L 330Cu. In. V8
1999-2004 Ford F-250 Super Duty 5.4L 330Cu. In. V8
1999-2004 Ford F-350 Super Duty 5.4L 330Cu. In. V8
1999 2000 2001 Lincoln Navigator 5.4L 330Cu. In. V8

Click here to view all compatible vehicles

Package Include:
1 X 3-Row AA5052 Aluminum Radiator
1 X AA5052 Aluminum Shroud
2 X 14" 90W Fans (Includes mounting kits)
1 X Thermostat Relay Kit

High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core size: 16.5"H x 31.7"W
Overall Size：19.5"H x 37.5"W
Inlet Size : 1.77''
Outlet Size: 1.77''
Transmission Oilcooler: include
Mounting Type :bracket

Features：
1.Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
2.Brazed core technology to guarantee optimum performance and dependability
3.All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4.Carefully crafted to exceptional OE standards for precise fit.

FAN Specification:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 14.050"
Thickness (in): 2.500"
Number of Blades: 8 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.
