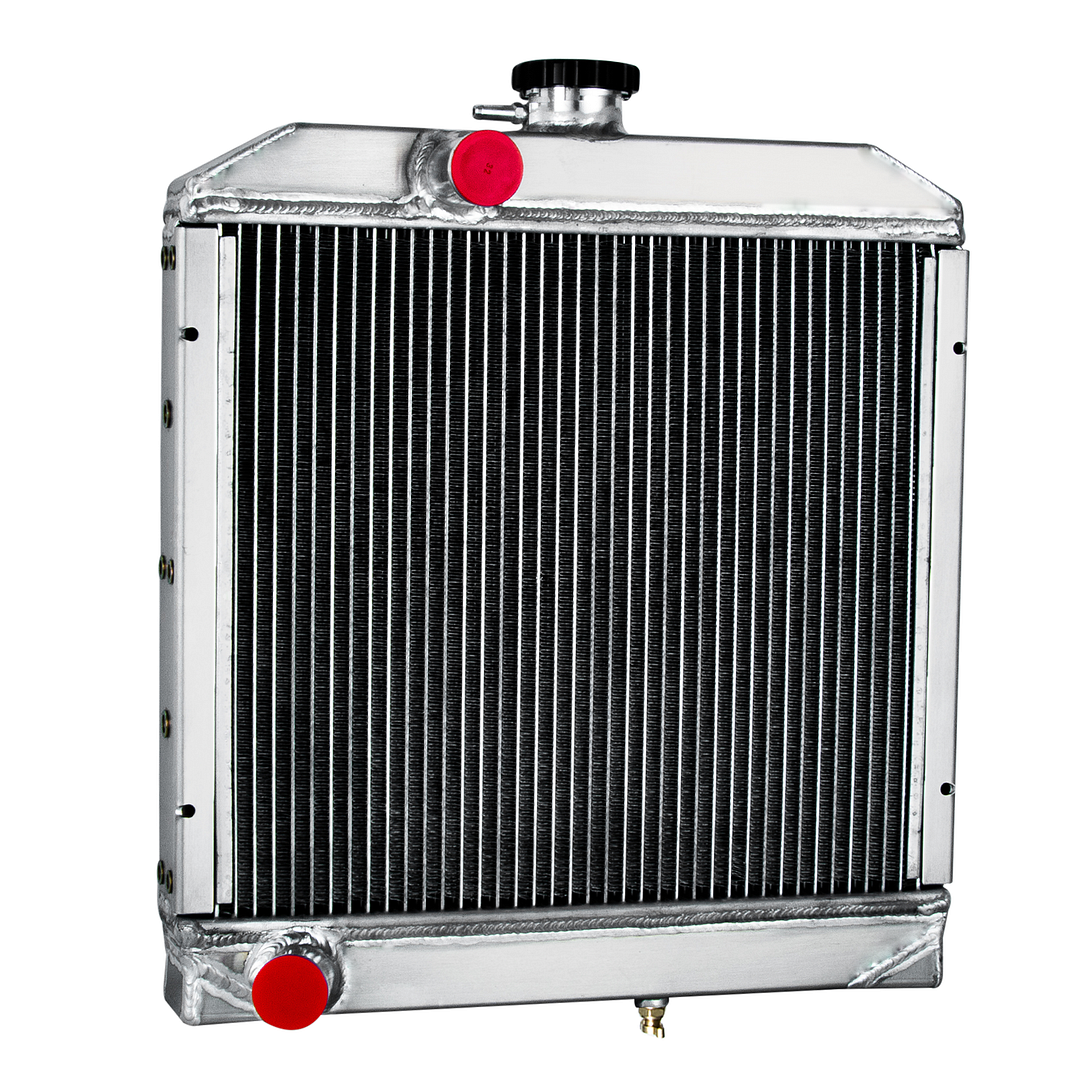

Alloyworks 3Row Radiator for Kubota L285P L295FP L285WP L295DT L305 L345 L345DT 1540142060 Tractor

Alloyworks 3Row Radiator for Kubota L285P L295FP L285WP L295DT L305 L345 L345DT 1540142060 Tractor

RAD4068DZ-BN
$239.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Package Include:
1 X 3-Row AA5052 Aluminum Radiator
1 X 1.3 Bar CNC Machined Radiator Cap

Radiator Size:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Overall Height: 18 1/8"
Overall Width: 17 1/4"
Core Height: 13 7/8"
Core Width: 16 3/4"
Inlet: 1 3/8"
Outlet: 1 3/8"

Vehicle Fitment
Replaces Part Number: 1540142060, 1540172060, 1530172060
Fits Kubota Tractors
L285P L285WP L295DTP L295FP L295DT
L295F L305 L345 L345DT L345F L355SS

The advantages of our radiator:
Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
Brazed core technology to guarantee optimum performance and dependability
All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
Billet Aluminum CNC machined fill neck rugged and durable
CNC machined cap with Engraved craftsmanship, anodized treatment.
OEM style brass petcock drain much better than other plastic one on eBay
Carefully crafted to exceptional OE standards for precise fit.
All New Radiators - 100% leak tested.
The tanks are 100% welded by TIG.


Description:
1.Our Radiator is made of AA5052 aircraft aluminum,5052 Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water).
2.Higher density core: cooling rows are spaced 3/8" apart,giving you 25% more rows within the core than other aluminum radiators.
3.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators. AA5052 aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high efficiency core can have tubes on 3/8" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had.
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG. Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full A5052 Aluminum Construction.aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.
