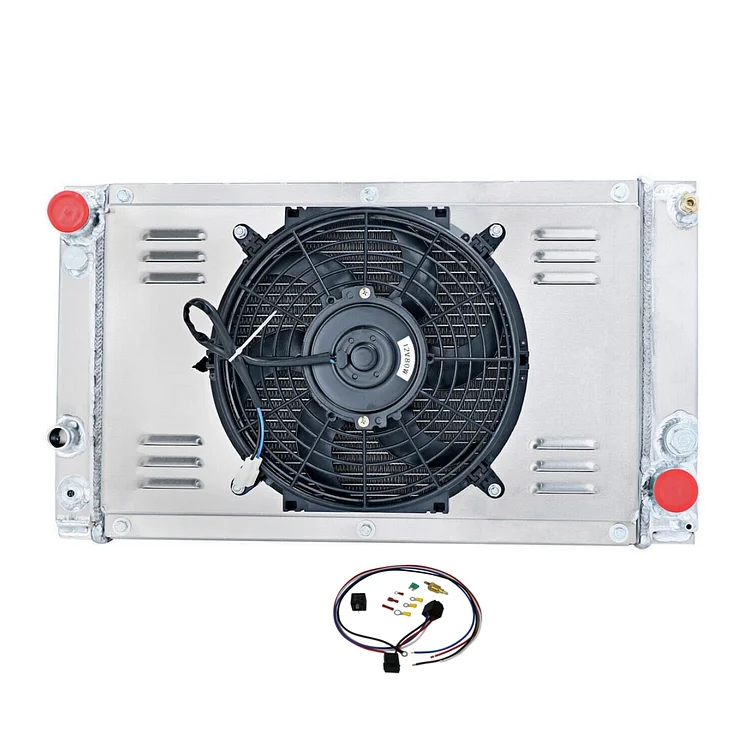

Package Include:
1 X3-Row AA5052 Aluminum Radiator
1 X AA5052 Aluminum Shroud
1 X 10" Fan (Includes mounting kits)
1 X Thermostat Relay Kit
Radiator Size:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Size: 19 2/3" X 12 8/9"
Overall Size: 24" X 13 4/7"
Inlet/outlet Size: 1 1/2"/ 1 1/2"
Auto trans cooler: φ26*230*M14*1.5（P）
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!
FAN Specification:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 10.050”
Thickness (in): 2.500”
Number of Blades: 6 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
Motor: 90W
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit Installation:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.
Upgrade Performance:
1. Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
2. Brazed core technology to guarantee optimum performance and dependability
3. All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4. OEM style brass petcock drain much better than other plastic one on eBay
5. Carefully crafted to exceptional OE standards for precise fit.6. No Fitting Instructions Supplied!
7. Professional Installation is Highly Recommended!
8. Full set in box and 100% brand new.
AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
3. Additional with thermostat,professional matching advice, consider for every detail and needed
