Alloyworks 3Row Aluminum Radiator Shroud Fan For 1971-1977 Chevy Vega Pontiac Astre 2.3L AT

Alloyworks 3Row Aluminum Radiator Shroud Fan For 1971-1977 Chevy Vega Pontiac Astre 2.3L AT

536-51515DZFSXJ90W
$219.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Click here to view all compatible vehicles

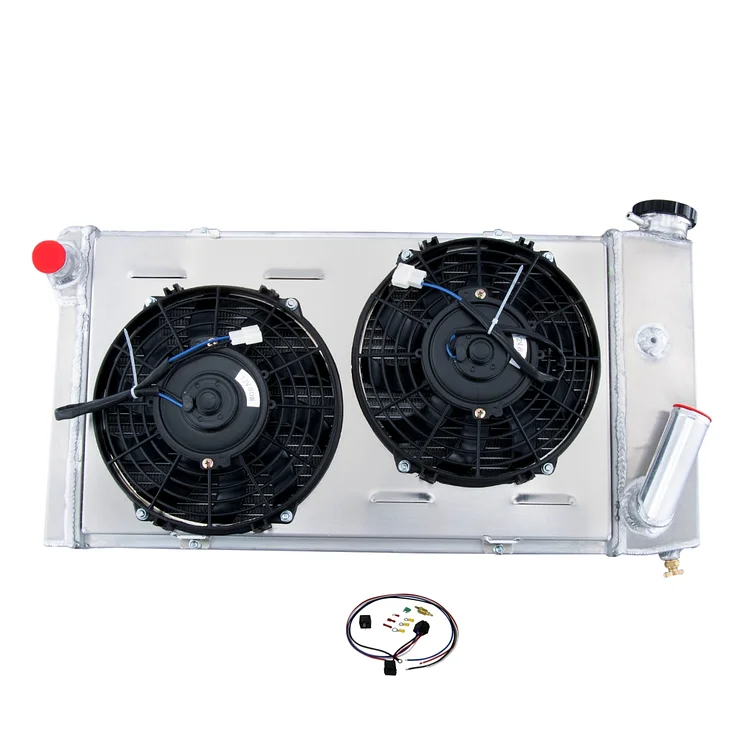

Package included:
1 X 3-ROW AA5052 Aluminum Radiator+1.3BAR CNC CAP
1 X AA5052 Aluminum Shroud
2 X 9"Fan
1 X Thermostat Temperature Switch Relay Kit

Specifications:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Overall Height: 15"
Overall Width: 26 3/4"
Core Height: 12"
Core Width: 20 3/4"
Inlet Location: Driver
Inlet Diameter: 1 1/4"
Outlet Location: Passenger
Outlet Diameter: 1 1/2"
Transmission Oil Cooler: No
Radiator Cap:CNC machined filler neck and cap
Radiator Drain Plug: OEM Style Brass Petcock Drain.

Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Description
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1.Made of AA5052 aircraft aluminum,stronger than other popular alloys and has increased corrosion resistance.
2.Brazed core technology to guarantee optimum performance and dependability.
3.AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable.
4.Higher density core: cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators.
5.14-16 cooling fins per inch, giving you approximately 1500 more cooling fins than other aluminum radiators, throws off much more heat.
