Fits:
1988-1993 Chevy/GMC C1500/C2500 4.3L 262Cu. In. V6
1988-1990 Chevy/GMC C1500/C2500 5.0L 305Cu. In. V8
1988-1991 Chevy/GMC C1500/C2500/C3500 5.7L 350Cu. In. V8
1988-1993 Chevy/GMC K1500/K2500 4.3L 262Cu. In. V6
1988-1990 Chevy/GMC K1500/K2500 5.0L 305Cu. In. V8
1988-1991 Chevy/GMC K1500/K2500/K3500 5.7L 350Cu. In. V8
1991-1993 Chevy S10 4.3L 262Cu. In. V6
For Core 20-3/4inch wide Radiator only,With TOC (Transmission Oil Cooler); With EOC (Engine Oil Cooler)
This radiator is easy to buy wrong, please check the radiator size before purchase!
Click here to view all compatible vehicles

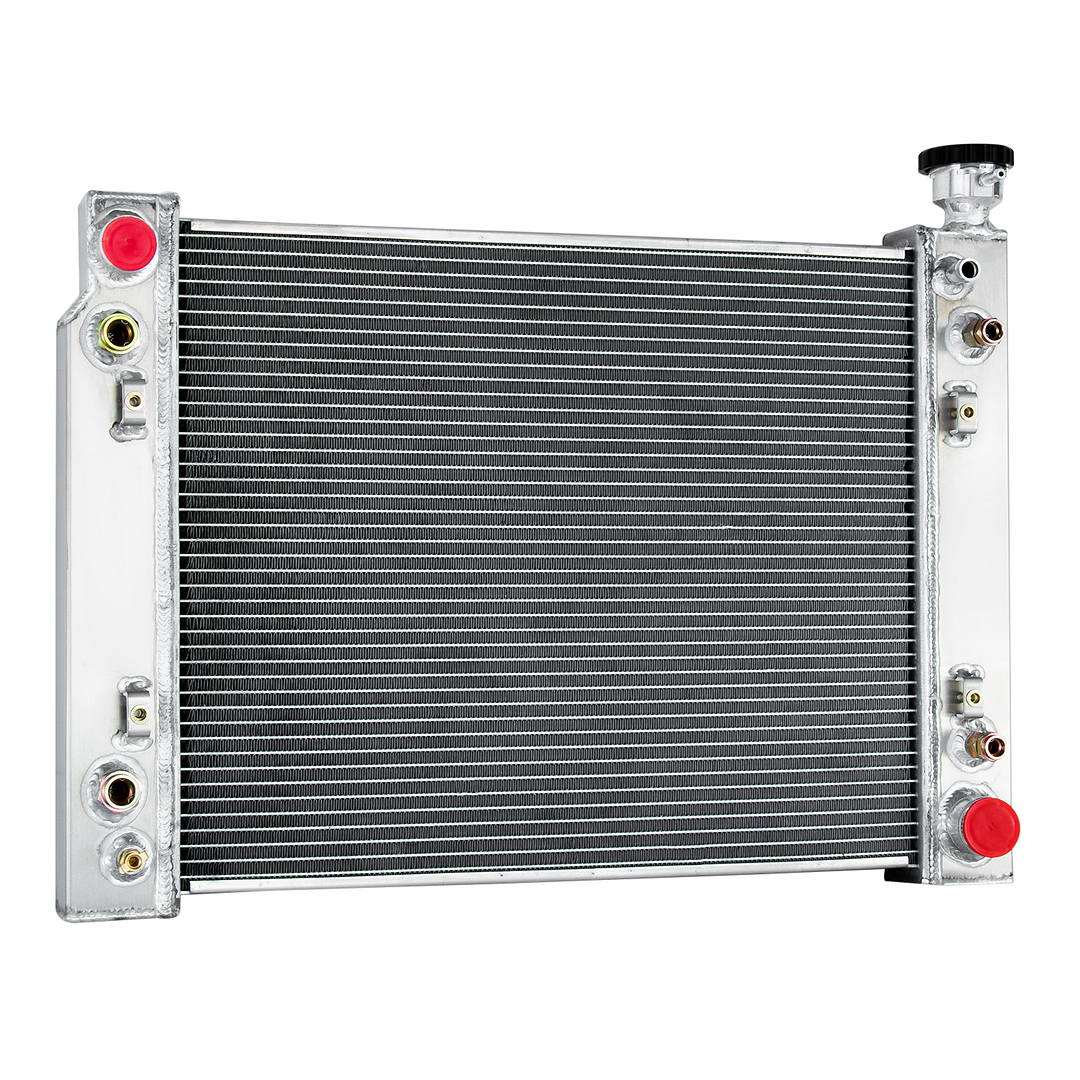

Radiator Size:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Tank Material: AA5052 Aircraft Grade Aluminum
Core Dimensions: 17 1/4" H x 20 3/4" W x 1 3/4''Thick
Overall Dimensions: 26 1/2" W x 20 1/2" H
Inlet Hose Connection:1.34"
Outlet Hose Connection:1.57"
Transmission Oil Cooler: Included
Engine Oil Cooler: Included
All TIG WELDED, NO EPOXY
CNC Precision Machined Radiator Cap
OEM Style Brass Petcock Drain.
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
