Alloyworks 3 Row Aluminum Radiator with Shroud+Fan+Relay Kit For Chevy Bel Air/Impala/Nova what's in the box

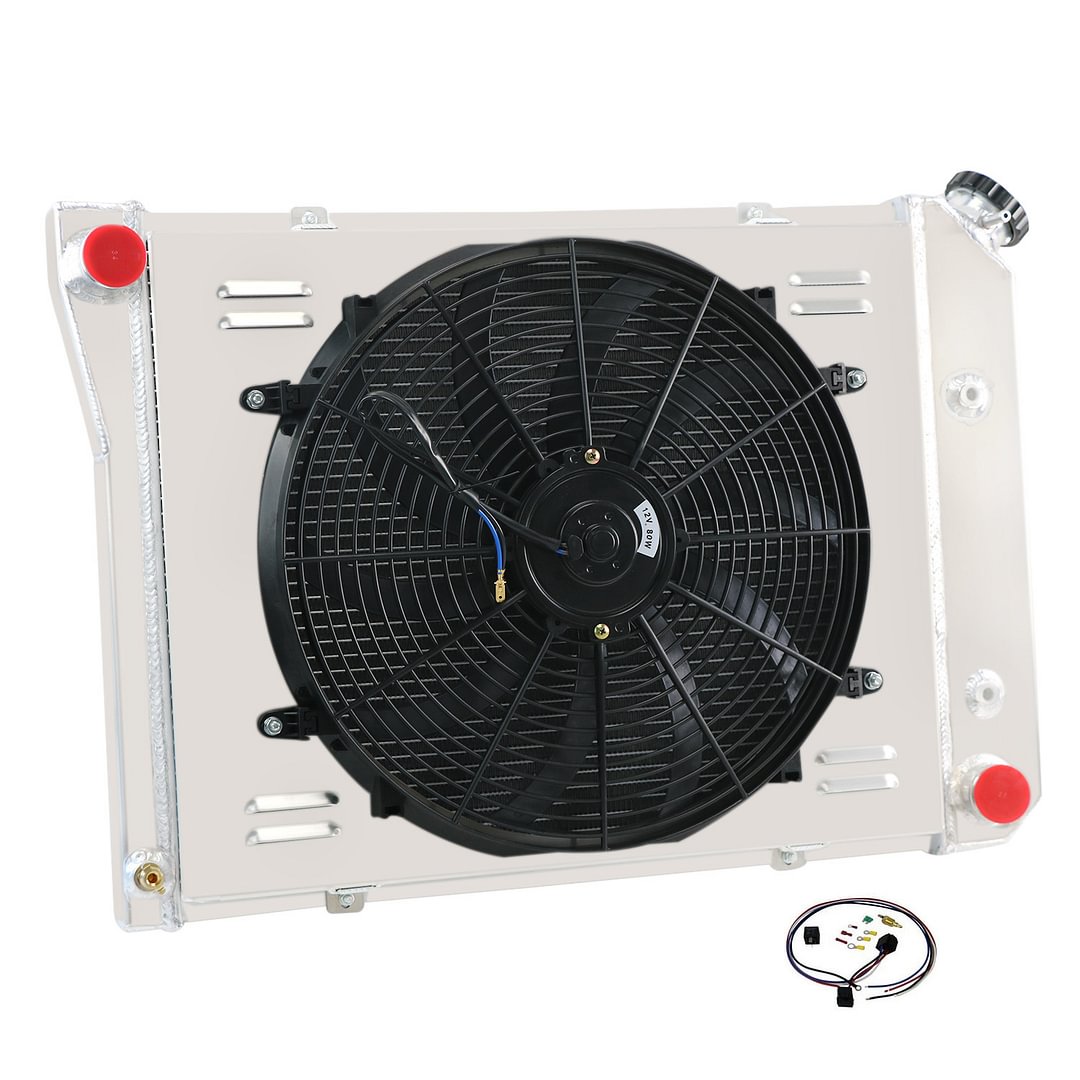

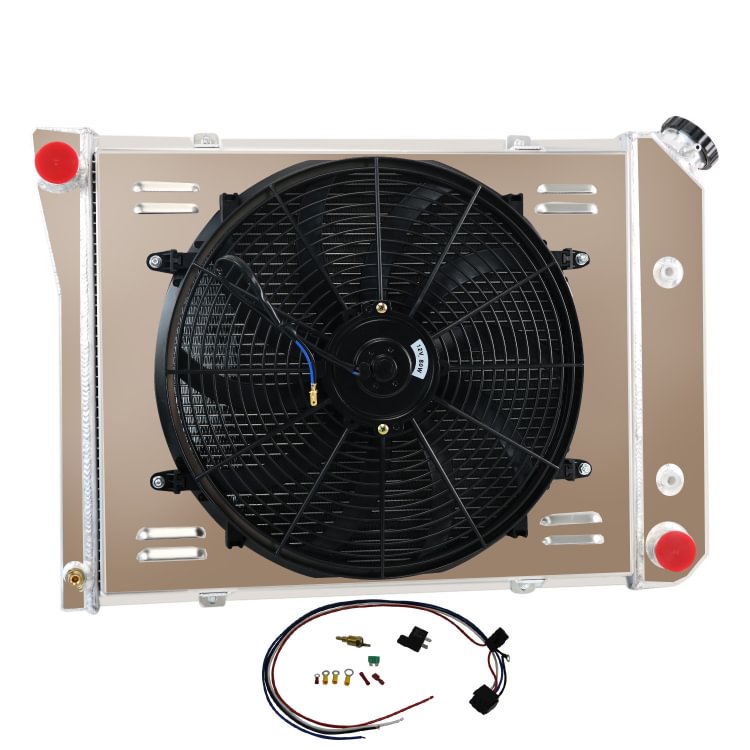

Alloyworks 3 Row Aluminum Radiator with Shroud+Fan+Relay Kit For Chevy Bel Air/Impala/Nova 1968-1974-120W 19”H x 27”W

RAD-CHEV-AL-372
$269.00
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order.
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Radiator Size

3-Row of tubes Core Racing Design

Core Material: AA5052 Aluminium

Tank Material: AA5052 Aircraft Grade Aluminum

Overall Dimensions: Height: 19“ X Width: 27“ x 6 1/3''Thick

Core Dimensions: Height: 17“ X Width: 20 3/4“ x 1 3/4''Thick

Inlet Location: 1 1/2“ in Locate Driver Side

Outlet Dimensions: 1 1/2“ in Locate Passenger Side

Transmission Oil Cooler Fitting Type: 1/2-20 Straight Thread, Inverted Flare

OEM Style Brass Petcock Drain.

Please Check the Size Before You Buy!

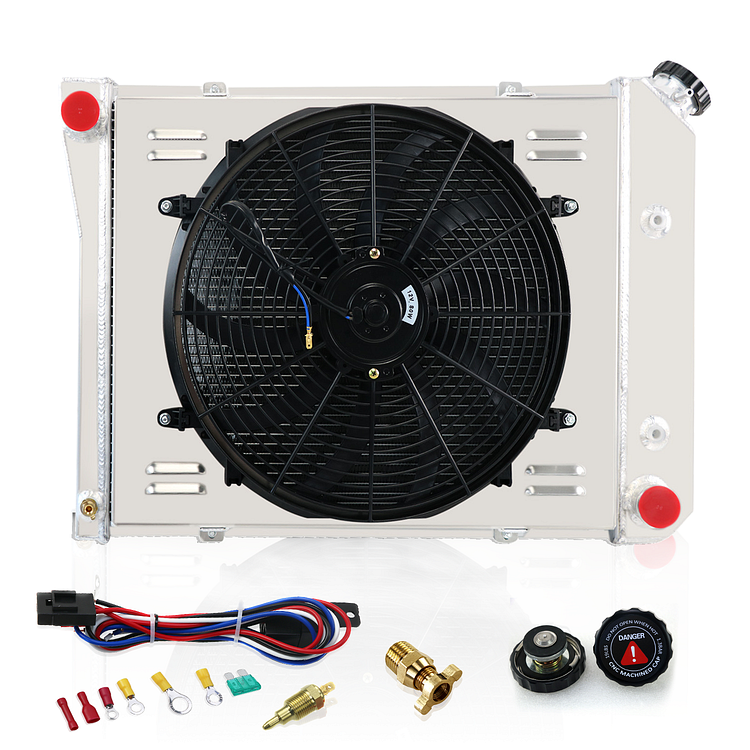

Package Include

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

1 X 16" Fans 120W(Includes mounting kits)

1 X Thermostat Relay Kit

Package Include

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

1 X 16" Fans 120W(Includes mounting kits)

1 X Thermostat Relay Kit

Fan Specification

Diameter : 16'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 120W

Number of Blades: 10 S-Type blades

Maximum Fan CFM(Cubic Feet per Minute): 3,000 cfm

Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%

Amp Draw: 10amp

Fan Thickness: 3.27"

S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect

Powerful 120 watt motor will keep your engine cool.

The fan and the fan shroud effectively drive the heat over and out of the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

Radiator Features:

Our Radiator is made of AA5052 aircraft aluminum. AA5052 series Aluminum is much better than the T-3303 series. More than 90% of aftermarket manufacturers use the T-3303 series Aluminum because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easy scratching and corroding, and poor heat dissipation effect. If the T-3303 aluminum radiator is operated at high pressure and high temperature for a long time, the leaking problem will occur very soon.

1. Made from Aircraft AA5052 grade aluminum for a prolonged lifespan and with a raw aluminum finish.

2. Brazed core technology to guarantee optimum performance and dependability.

3. All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable.

4. Billet Aluminum CNC machined fill neck is rugged and durable.

5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.

6. The OEM-style brass petcock drain is much better than other plastic ones.


7. Carefully crafted to exceptional OE standards for a precise fit.

Thermostat Relay Kit

Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.185'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe adapter included.Probe typically threads into radiator, water outlet or manifold.

RELAY KIT INSTRUCTIONS

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Fan Specification

About AlloyWorks

Established since 2006, AlloyWorks is a professional manufacturer of automotive parts. We are specialized in car radiators/heat exchangers and cooling system components.

In Alloyworks, we take pride in providing a seamless shopping experience with the comprehensive range of auto parts products. Your satisfaction is our priority, and we're here to make your shopping experience enjoyable and worry-free.
