3-Row of tubes Core Racing Design
High-Performance Racing Spec
Core Material: AA5052 Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Core Dimensions: 17-2/5" High x 22-3/4" Wide X 1 3/4" Thick
Overall Dimensions: 23-2/9" High x 24-4/5" Wide x 5.7'' Thick
Upper Inlet: 1-3/4" located on the Driver side.
Lower Outlet:1-3/4" located on Passenger side.
Transmission Oil Cooler: ￠22*300*G1/4(Z)
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!

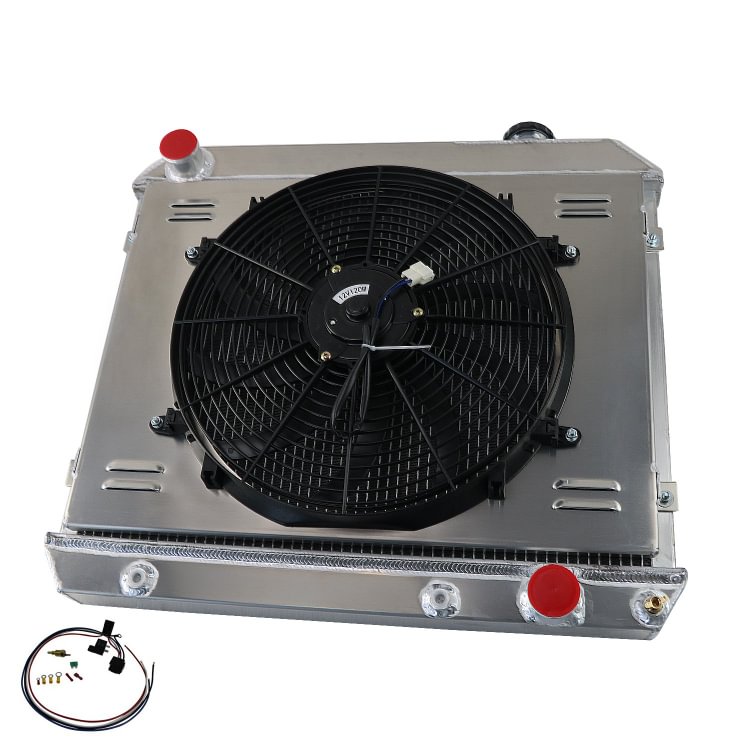

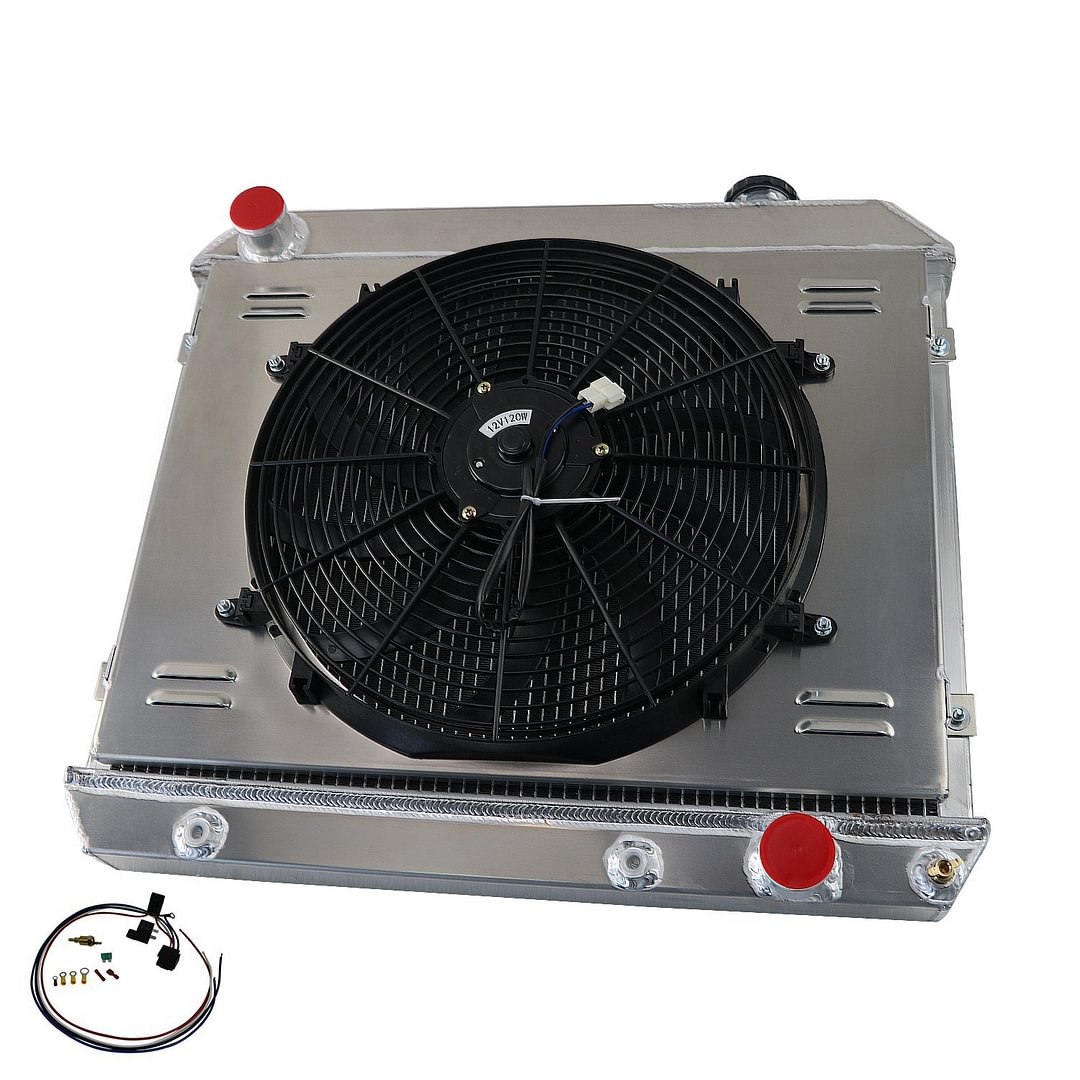

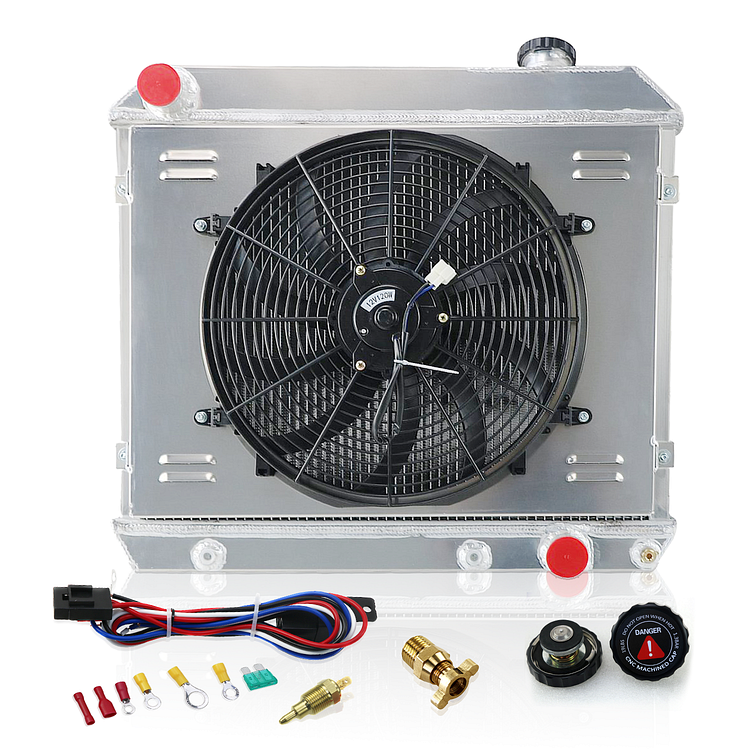

1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16" Fans (Includes mounting kits)
1 X Thermostat Relay Kits
1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16" Fans (Includes mounting kits)
1 X Thermostat Relay Kits
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 3,000 cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
Amp Draw: 10amp
Fan Thickness: 3.27"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.
Our radiator is made of AA5052 aircraft aluminum. 5052 Aluminum's major alloying element is magnesium, providing higher strength and greater corrosion resistance, including resistance to saltwater.
Higher density core: Cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators.
The core of the radiator is welded in a vacuum brazing furnace, with no epoxy. The radiator is 100% TIG welded, ensuring stronger and higher coolant capacity than OEM units. It is made of high-quality full A5052 aluminum construction. An aluminum radiator is designed to provide maximum cooling efficiency, preventing premature engine failure.
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its lightweight and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area and enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at a preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
RED + connect directly to the battery.
WHITE wire to ignition switch power source.
BLACK goes to the thermos switch.
The BLUE wire goes to the Fans.
This setup will run Fans & pull air in through the radiator.
Advanced Production Process
Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.
Leading-edge Technology
Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.
