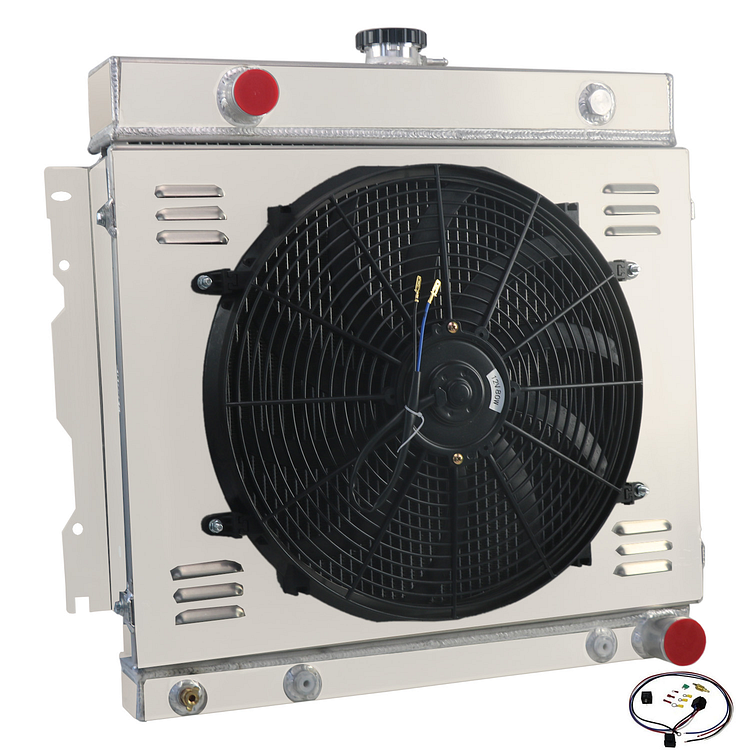

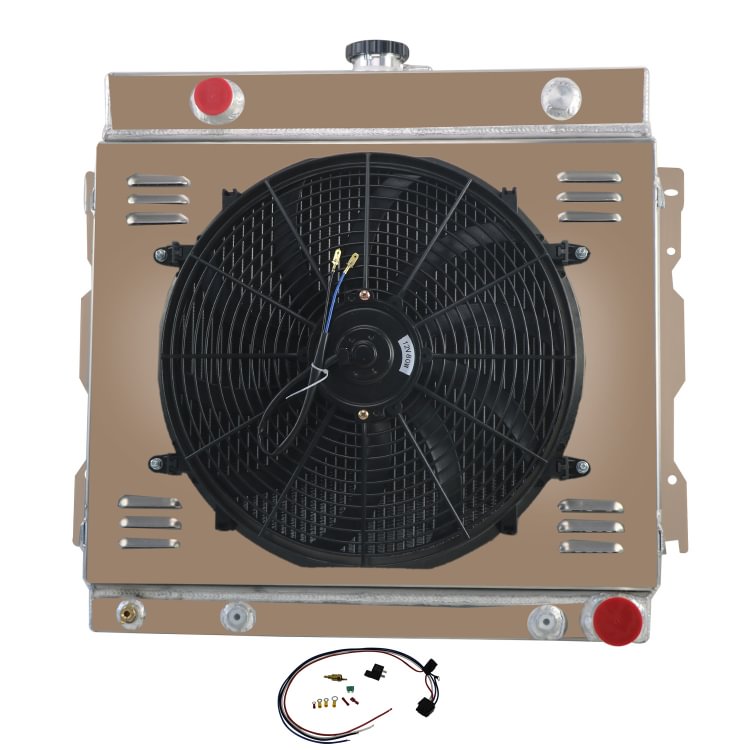

Alloyworks 3 Rows Aluminum Radiator with Shroud and Fan and Relay Kit for 1970-1979 Dodge Challenger Charger and Plymouth Truck Van V8 120w Direct Fit XTREME COOLING 25.39" Height x 23.35" Width


Alloyworks 3 Rows Aluminum Radiator with Shroud and Fan and Relay Kit for 1970-1979 Dodge Challenger Charger and Plymouth Truck Van V8 120w Direct Fit XTREME COOLING 25.39" Height x 23.35" Width


Save 0%
Please check the compatible vehicles below.
Please check the size before you buy.
There may be some deviation in manual measurement data
One year warranty and USA warehouse


1970-1973 Dodge Challenger  5.2L 5211CC 318Cu. In. V8
1971 Dodge Coronet  5.2L 5211CC 318Cu. In. V8
1973 Dodge Charger  5.2L 5211CC 318Cu. In. V8
1971-1974 Dodge B100 Van & B200 Van & B300 Van  5.2L 5211CC 318Cu. In. V8
1972-1974 Dodge D100 Pickup & D200 Pickup & D300 Pickup & W100 Pickup & W200 Pickup & W300 Pickup  5.2L 5211CC 318Cu. In. V8
1974-1978 Dodge CB300  5.2L 5211CC 318Cu. In. V8
1974-1979 Dodge Ramcharger  5.2L 5211CC 318Cu. In. V8
1975-1977 Dodge W100  5.2L 5211CC 318Cu. In. V8
1975-1978 Dodge B100 & B200 & B300 & W300  5.2L 5211CC 318Cu. In. V8
1975-1979 Dodge D100 & D200 & D300 & W200  5.2L 5211CC 318Cu. In. V8
1977-1979 Dodge D150 & W150  5.2L 5211CC 318Cu. In. V8

1971-1974 Dodge B100 Van & B200 Van & B300 Van  5.9L 360Cu. In. V8
1972-1974 Dodge D100 Pickup & D200 Pickup & D300 Pickup & W100 Pickup & W200 Pickup & W300 Pickup  5.9L 360Cu. In. V8
1974 Dodge Challenger  5.9L 360Cu. In. V8
1974-1978 Dodge CB300  5.9L 360Cu. In. V8
1974-1979 Dodge Ramcharger  5.9L 360Cu. In. V8
1975-1978 Dodge B200 & B300  5.9L 360Cu. In. V8
1975-1977 Dodge W100  5.9L 360Cu. In. V8
1975-1979 Dodge D100 & D200 & D300 & W200 & W300  5.9L 360Cu. In. V8
1976-1978 Dodge B100  5.9L 360Cu. In. V8
1977-1979 Dodge D150 & W150  5.9L 360Cu. In. V8
1979 Dodge D400 & D450 & RD200  5.9L 360Cu. In. V8

1971-1973 Dodge Charger  5.6L 340Cu. In. V8 & 5.6L 5572CC 340Cu. In. V8
1972-1973 Dodge Challenger & Coronet  5.6L 340Cu. In. V8 & 5.6L 5572CC 340Cu. In. V8

1974 Dodge B100 Van & B200 Van & B300 Van  7.2L 7211CC 440Cu. In. V8
1975 Dodge B200 & B300 7.2L  7211CC 440Cu. In. V8

High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Radiator Flow: Down Flow
Core Dimensions: 17.87"*21.57"
Over Dimensions: 25.39"*23.35"
Inlet Hose Connection: 1 1/2"
Outlet Hose Connection: 1 3/4"
Has trans cooler built in
Please Check the Size Before You Buy!

Fan Specification:
No load Speed (Revolutions Per Minute) : 3000 RPM
load Speed (Revolutions Per Minute) : 1860 RPM
Voltage: 12V
Watts: 120W

100% Brand New Item
Full Aluminum Radiator
We All Products With Made By OEM Approved & ISO Certified Manufacturers With Materials That Meets Or Exceeds Strict OEM Requirements Improves Cooling by 35 - 45% Heat Radiation
They are made to high standards of quality and workmanship using the highest
We All Products grades of AA5052 Aircraft Grade Aluminum available and are constructed with 100% Tig welded seams,
Brazed Core Technology and no Epoxy.
Super light weight design help reduce the weight compared to the oem radiator and helps eliminate plastic end tanks that will eventually leak.
Each radiator is especially designed to fit each application and will allow oem and aftermarket fans.
Tri core will have aluminum large rows allowing faster heat exchange and reduce possibility's of overheating.
With racing radiator it will raise coolant capacity and improve heat exchange compared to oem.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

Thermostat Relay Kit

Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.

Aluminum plate is pressed, high quality and durable.
