Alloyworks 3 Row Radiator&Shroud+Fan+Relay For 1943-48 Chevy Cars DG DR DJ BL BN BG V8 Swap

Alloyworks 3 Row Radiator&Shroud+Fan+Relay For 1943-48 Chevy Cars DG DR DJ BL BN BG V8 Swap

WH4348CHDZFSXJ90W-BN
$259.00
Quantity
Please check if this fits your vehicle before purchasing
We're currently out of stock. Get notifed by email when this product available
please input correct email
Notify Me
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!

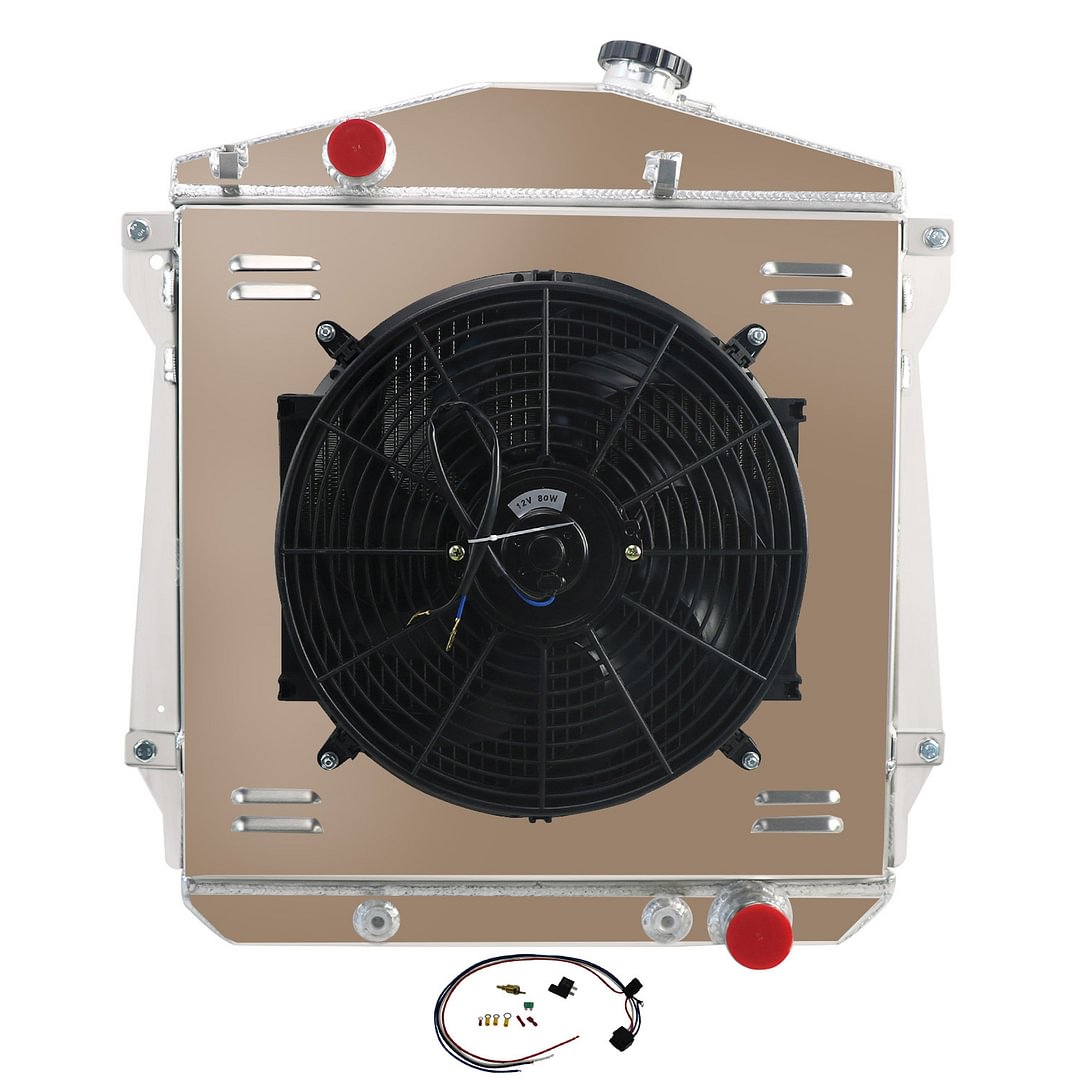

Package Include:
1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 14" Fans (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Size:
Condition:New
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Petock Drain:OEM style brass petcock drain
Mounting Type: Bracket
Overall Size: 25" Height X 22 5/6" Width
Core Size: 18 1/2" Height x 19 3/5" Width
Inlet Location Diameter: 1 1/2" Driver Side
Outlet Location Diameter: 1 3/4" Passenger Side
Transmission Oil Cooler: Φ32*205*G1/4（Z)

Fan Specification:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 14.050"
Thickness (in): 2.500"
Number of Blades: 8 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Motor: 90W
Includes the Mounting Tabs for an Easy Zip Tie Installation


Description:
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality AA5052 Aircraft Grade Aluminum Construction
Full Aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring Aircraft Grade Aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This High Quality Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Thermostat Relay Kit
Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.

Aluminum plate is pressed, high quality and durable.
