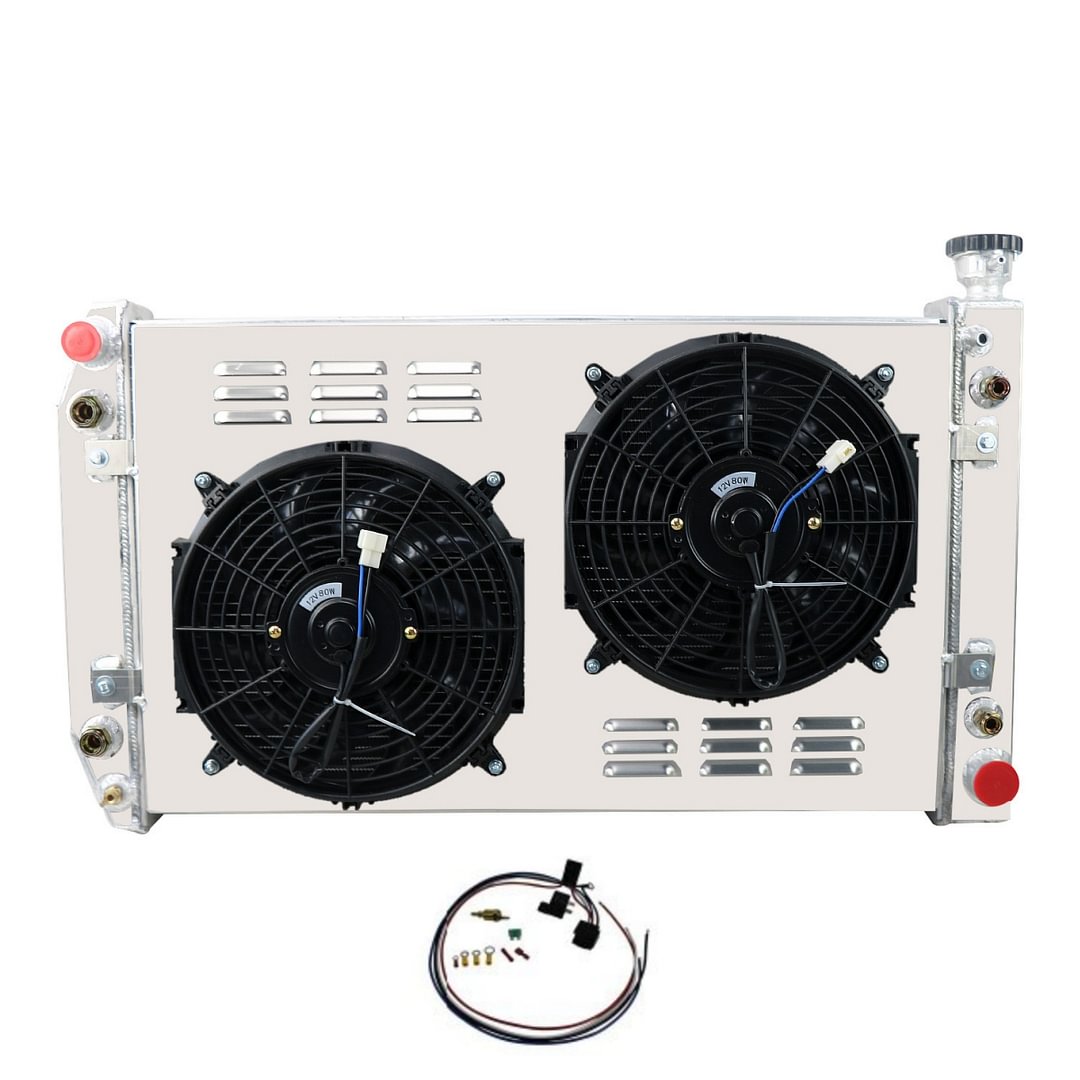

Alloyworks 3 Row Radiator+Shroud+Fans For 88-95 Chevy GMC C/K 1500 2500 3500  V8 28''Wide

Alloyworks 3 Row Radiator+Shroud+Fans For 88-95 Chevy GMC C/K 1500 2500 3500 V8 28''Wide

WH622DZFSXJ90W
$285.00
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order. This radiator may not perfectly match all compatible vehicles due to its upgraded design.

Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Radiator Size

3-Row of tubes Core Racing Design

Core Material: AA5052 Aluminum

Tank Material: AA5052 Aircraft Grade Aluminum

Surface Finish: Aircraft Grade Raw Aluminum

Core Size: 17-1/4" H x 28-1/4" W

Overall Size: 20 1/4" H x 33 7/8" W x 5.5'' T

Inlet Diameter: In - 1 5/16"

Outlet Diameter: Out - 1 9/16"

Upper Hose Fitting: Driver

Lower Hose Fitting: Pass

Transmission Oil Cooler Fitting Type: 1/2-20 Straight Thread, Inverted Flare

Engine Oil Cooler: M20 x 1.5 3/4-18 Adapter

Package Include

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Package Include

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Fan Specification

Maximum Fan CFM: 1730 cfm

Motor: 90W

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 S-Type blades

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit Installation:

Work with any 12 volt system.

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

185'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe included.

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

About "AA5052" Aluminum Materials

Our Radiator is made of AA5052 aircraft aluminum, which is different from other T-3303 Series in the market. The AA5052 series Aluminum is much better than the T-3303 series. More than 90% of aftermarket manufacturers use the T-3303 series Aluminum as it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness of scratching and corroding, and poor heat dissipation effect. If the T-3303 aluminum radiator is operated at high pressure and high temperature for a long time, the leaking problem will occur very soon.

AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability, and cold workability and strength. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of vehicles and ships, hardware products, and electrical-appliance casings.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

About AlloyWorks

Established since 2006, AlloyWorks is a professional manufacturer of automotive parts. We are specialized in car radiators/heat exchangers and cooling system components.

In Alloyworks, we take pride in providing a seamless shopping experience with the comprehensive range of auto parts products. Your satisfaction is our priority, and we're here to make your shopping experience enjoyable and worry-free.
