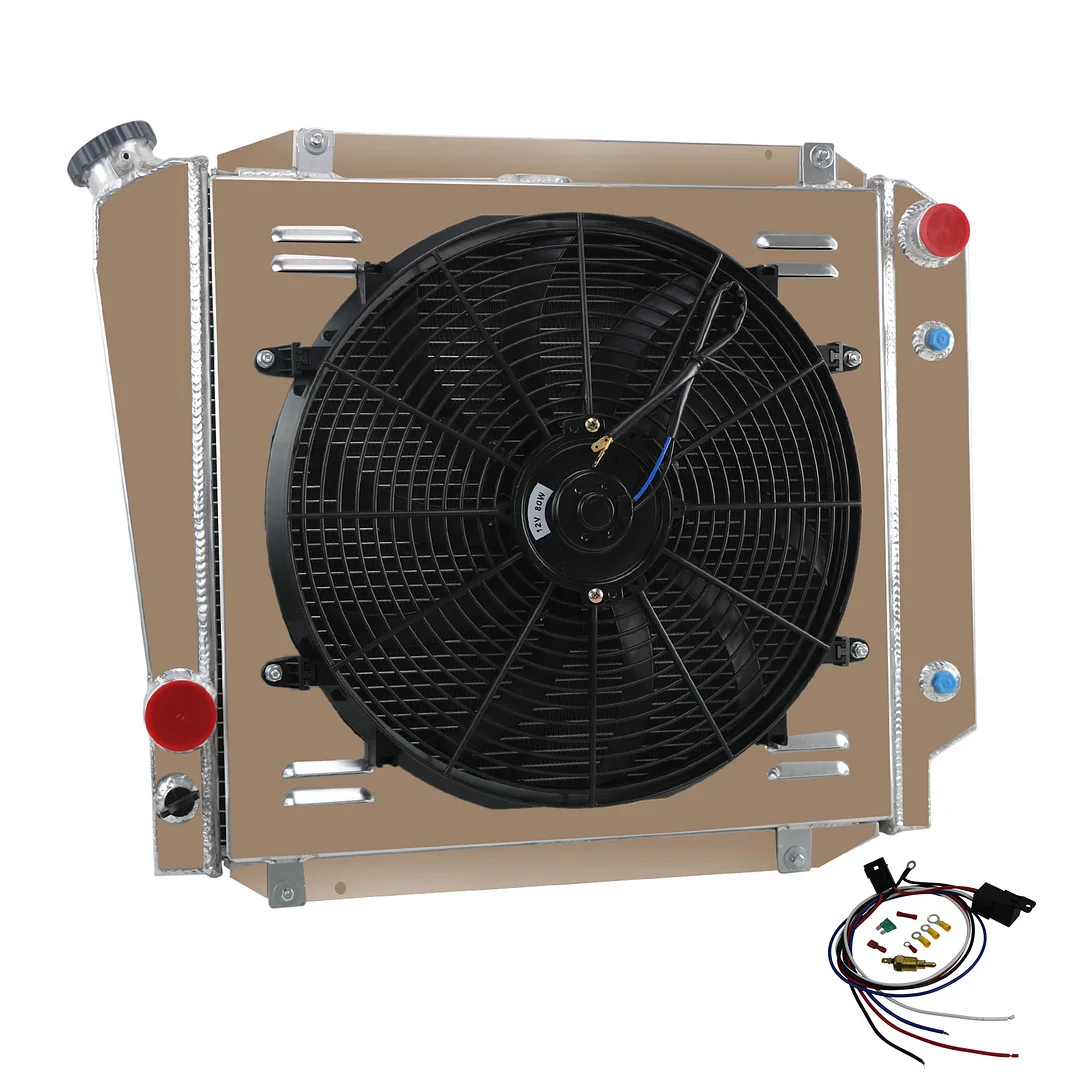

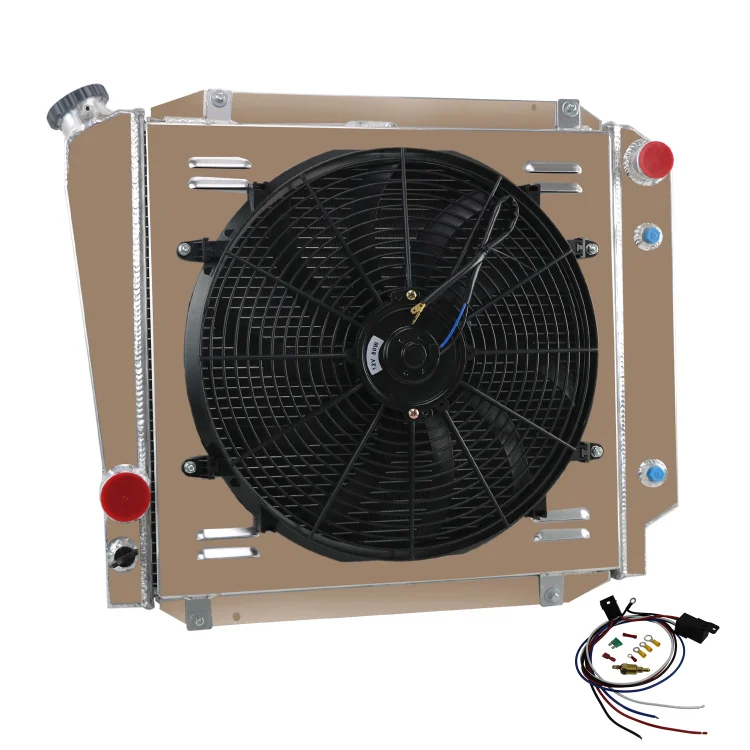

Alloyworks STRENGTHEN COOLING 3 Row Radiator Shroud Fan Thermostat For Ford Bronco V8 Conversion 1966-1977 76-120W
WH522DZFSXJ120W-BN








Alloyworks STRENGTHEN COOLING 3 Row Radiator Shroud Fan Thermostat For Ford Bronco V8 Conversion 1966-1977 76-120W
WH522DZFSXJ120W-BN
Fits:
1966-1972 Ford Bronco 2.8L 170Cu. In. l6
1973-1974 Ford Bronco 3.3L 200Cu. In. l6
1966-1967 Ford Bronco 3.9L 240Cu. In. l6
1966-1968 Ford Bronco 4.7L 289Cu. In. V8
1968-1977 Ford Bronco 5.0L 302Cu. In. V8
LATE MODEL FORD V8 CONVERSIONS- PLEASE CHECK SPECS
Specifications:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Radiator Flow: Down Flow
Core Dimensions (H x W): 23 5/8 X 16 3/8
Overall Dimensions (H x W): 29 5/8 X 21 1/8
Hose Location: IN: Ccheck- OUT: Passenger
Hose Fittings: IN: 1 1/2 - OUT: 1 3/4
Trans Cooler: NO
Mounting Type: Bracket Mount
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!
Description:
100% Brand New Item
Full Aluminum Radiator
We All Products With Made By OEM Approved & ISO Certified Manufacturers With Materials That Meets Or Exceeds Strict OEM Requirements Improves Cooling by 35 - 45% Heat Radiation
They are made to high standards of quality and workmanship using the highest
We All Products grades of AA5052 Aircraft Grade Aluminum available and are constructed with 100% Tig welded seams,
Brazed Core Technology and no Epoxy.
Super light weight design help reduce the weight compared to the oem radiator and helps eliminate plastic end tanks that will eventually leak.
Each radiator is especially designed to fit each application and will allow oem and aftermarket fans.
Tri core will have aluminum large rows allowing faster heat exchange and reduce possibility's of overheating.
With racing radiator it will raise coolant capacity and improve heat exchange compared to oem.
Shroud+Fans
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Thermostat Relay Kit
Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.
Aluminum plate is pressed, high quality and durable.
