3 Row Radiator&Shroud+Fan+Relay Kit For 1972-1986Jeep Scrambler CJ5 CJ6 CJ7 L6 V8
WH583DZFSXJ90W-BN







3 Row Radiator&Shroud+Fan+Relay Kit For 1972-1986Jeep Scrambler CJ5 CJ6 CJ7 L6 V8
WH583DZFSXJ90W-BN
Fits:
1974-1975 Jeep Cherokee 4.2L 258Cu. In. l6
1973 Jeep Commando 2.2L 3.8L 4.2L 5.0L
1974 1975 Jeep J10/J20 4.2L 258Cu. In. l6
1983-1985 Jeep Scrambler 2.5L 150Cu. In. l4
1981-1983 Jeep Scrambler 2.5L 151Cu. In. l4
1981-1985 Jeep Scrambler 4.2L 258Cu. In. l6
1972 1973 Jeep CJ5 2.2L 2197CC 134Cu. In. l4
1980-1983 Jeep CJ5 2.5L 151Cu. In. l4
1972-1978 Jeep CJ5 3.8L 232Cu. In. l6
1972-1983 Jeep CJ5 4.2L 258Cu. In. l6
1972-1981 Jeep CJ5 5.0L 304Cu. In. V8
1972-1975 Jeep CJ6 3.8L 232Cu. In. l6 / 4.2L 258Cu. In. l6 / 5.0L 304Cu. In. V8
1983-1986 Jeep CJ7 2.5L 150Cu. In. l4
1980-1983 Jeep CJ7 2.5L 151Cu. In. l4
1976-1978 Jeep CJ7 3.8L 232Cu. In. l6
1976-1986 Jeep CJ7 4.2L 258Cu. In. l6
1980-1986 Jeep CJ7 4.6L 282Cu. In. l6
1976-1981 Jeep CJ7 5.0L 304Cu. In. V8

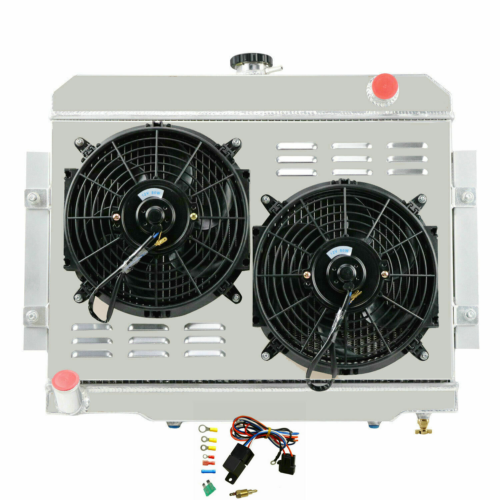

Package List:
1 X 3-Row Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud
2 X 10" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Radiator Details:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Core Size:23.75"WIDE x 15.75"HIGHT
Overall Size:24.25"WIDE x 20.75"HIGHT
Upper Inlet: 1.50"
Lower Outlet:1.50"
OEM style brass petcock drain.
Please Check the Size Before You Buy!
FAN Specification:
Maximum Fan CFM: 1730 cfm
Motor:90W
Fan Diameter (in): 10.050”
Thickness (in): 2.500”
Number of Blades: 6 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
RELAY KIT INSTRUCTIONS
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Product Features:
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality AA5052 Aircraft Grade Aluminum Construction
Full Aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring Aircraft Grade Aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This High Quality Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Shroud+Fans
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Aluminum plate is pressed, high quality and durable.
